Full Tooth Head Trapezoidal Lead Screw And Nut Assembly 4.8 Performance Level Thread tolerance 4h

  • Full Tooth Head Trapezoidal Lead Screw And Nut Assembly 4.8 Performance Level Thread tolerance 4h
  • Full Tooth Head Trapezoidal Lead Screw And Nut Assembly 4.8 Performance Level Thread tolerance 4h
  • Full Tooth Head Trapezoidal Lead Screw And Nut Assembly 4.8 Performance Level Thread tolerance 4h
  • Full Tooth Head Trapezoidal Lead Screw And Nut Assembly 4.8 Performance Level Thread tolerance 4h
  • Full Tooth Head Trapezoidal Lead Screw And Nut Assembly 4.8 Performance Level Thread tolerance 4h
Place of Origin Jiangsu, China (Mainland)
Brand Name VIC-TECH
Certification RoHS
Model Number TR8
Minimum Order Quantity 1 Unit
Price $6.00 - $12.00 / Units
Packaging Details Standard export package, or can be customized
Delivery Time 15-30 work days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 100000Units per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Screw Outer Diameter 8mm Thread Tolerance 4h
Product Number TR8 Category Trapezoidal Screw
Material Grade Class A Standard Type National Standard
Head Type Full Tooth Performance Level 4.8
Highlight

trapezoidal screw nut

,

8mm lead screw nut

,

Full Tooth Head Lead Screw
Leave a Message
Product Description

factory direct quality lead screw and nut stainless steel trapezoidal screw trapezoidal screw nut



Product Name: Trapezoidal screw
Process: threaded raceway adopts machining, machining precision is carried out according to national standard JB/T 2886-2008, machining diameter range is φ2~14, machining lead range is 1~14, custom machining left rotation, right rotation, left and right direction integration .
Material: The conventional material of the lead screw is YF45Mnr non-tempered free-cutting alloy steel. The heat treatment hardness can reach HRC58~62, and optional 45#·304 stainless steel, etc. The nut material can be tin bronze, aluminum bronze, brass, cast iron, stainless steel. Etc., our company also accepts processing customization, please feel free to contact us if you need.

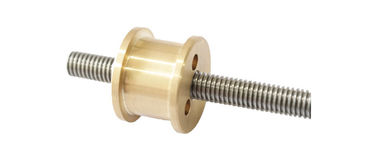

Full Tooth Head Trapezoidal Lead Screw And Nut Assembly 4.8 Performance Level Thread tolerance 4h 0

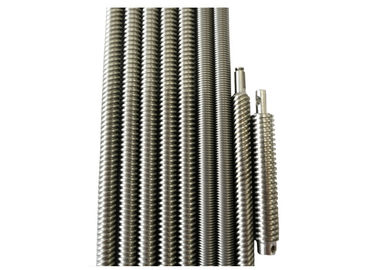

Full Tooth Head Trapezoidal Lead Screw And Nut Assembly 4.8 Performance Level Thread tolerance 4h 1



Mechanical Dimension:MM

Full Tooth Head Trapezoidal Lead Screw And Nut Assembly 4.8 Performance Level Thread tolerance 4h 2

Technical Features

Full Tooth Head Trapezoidal Lead Screw And Nut Assembly 4.8 Performance Level Thread tolerance 4h 3

Full Tooth Head Trapezoidal Lead Screw And Nut Assembly 4.8 Performance Level Thread tolerance 4h 4

Srew Datasheet

No. Spec model Outer dia Lead Thread No. Tooth distance Outer dia
1 Tr3.5*1-N1-RH 3.5 1 1 1 3.5 3.475
2 Tr3.5*0.6096-N1-RH 3.5 0.6096 1 0.6096 3.5 3.475
3 Tr3.5*2.4384-N2-RH 3.5 2.4384 2 1.2192 3.5 3.475
4 Tr4-RH 4       4 3.975
5 Tr5*1-N1-RH 5 1 1 1 5 4.975
6 Tr5*2-N2-RH 5 2 2 1 5 4.975
7 Tr5*4-N4-RH 5 4 4 1 5 4.975
8 Tr5*6-N6-RH 5 6 6 1 5 4.975
9 Tr6*1-N1-RH 6 1 1 1 6 5.975
10 Tr6*2-N2-RH 6 2 2 1 6 5.975
11 Tr6*4-N4-RH 6 4 4 1 6 5.975
12 Tr6*6-N6-RH 6 6 6 1 6 5.975
13 Tr6*12-N6-RH 6 12 6 2 6 5.975
14 Tr6*12-N12-RH 6 12 12 1 6 5.975
15 Tr8*1-N1-RH 8 1 1 1 8 7.975
16 Tr8*3-N2-RH 8 3 2 1.5 8 7.975
17 Tr8*2-N1-RH 8 2 1 2 8 7.975
18 Tr8*4-N2-RH 8 4 2 2 8 7.975
19 Tr8*8-N4-RH 8 8 4 2 8 7.975
20 Tr8*10-N5-RH 8 10 5 2 8 7.975
21 Tr8*12-N6-RH 8 12 6 2 8 7.975
22 Tr8*14-N7-RH 8 14 7 2 8 7.975
23 Tr8*16-N -RH 8     2 8 7.975
24 Tr8*20-N -RH 8     2 8 7.975
25 Tr9*24-N24-RH 9 24 24 1 9 8.975
26 Tr10*1-N1-RH 10 1 1 1 10 9.975
27 Tr10*1-N2-RH 10     1 10 9.975
28 Tr10*2-N1-RH 10 2 1 2 10 9.975
29 Tr10*3-N2-RH 10 3 2 1.5 10 9.975
30 Tr10*4-N2-RH 10 4 2 2 10 9.975
31 Tr10*8-N4-RH 10 8 4 2 10 9.975
32 Tr10*10-N5-RH 10 10 5 2 10 9.975
33 Tr10*12-N6-RH 10 12 6 2 10 9.975
34 Tr10*14-N -RH 10     2 10 9.975
35 Tr10*20-N -RH 10     2 10 9.975
36 Tr12*2-N1-RH 12 2 1 2 12 11.975
37 Tr12*3-N1-RH 12 3 1 3 12 11.975
38 Tr12*8-N4-RH 12 8 4 2 12 11.975
39 Tr12*4-N -RH 12     2 12 11.975
40 Tr12*12-N -RH 12     2 12 11.975
41 Tr12*10-N4-RH 12 10 4 2.5 12 11.975
42 Tr12.7*12.7-N5-RH 12 12.7 5 2.54 12 11.975
43 Tr14*3-N -RH 14     3 14 13.975
44 Tr14*4-N -RH 14     4 14 13.975



Lead Time and Packaging Information


Lead time for samples:
Standard motors in stock: within 3 days
Standard motors not in stock: within 15 days
Customized products: About 25~30 days (based on complexity of customization)
Lead time for building a new mold: generally about 45 days
Lead time for mass production: based on order quantity
Packaging:
Samples are packed in foam sponge with a paper box, shipped by express
Mass production, motors are packed in corrugated cartons with transparent film outside. (shipping by air)
If shipped by sea, product will be packed on pallets





Product Detail Presentation

Full Tooth Head Trapezoidal Lead Screw And Nut Assembly 4.8 Performance Level Thread tolerance 4h 5Full Tooth Head Trapezoidal Lead Screw And Nut Assembly 4.8 Performance Level Thread tolerance 4h 6

Full Tooth Head Trapezoidal Lead Screw And Nut Assembly 4.8 Performance Level Thread tolerance 4h 7Full Tooth Head Trapezoidal Lead Screw And Nut Assembly 4.8 Performance Level Thread tolerance 4h 8
