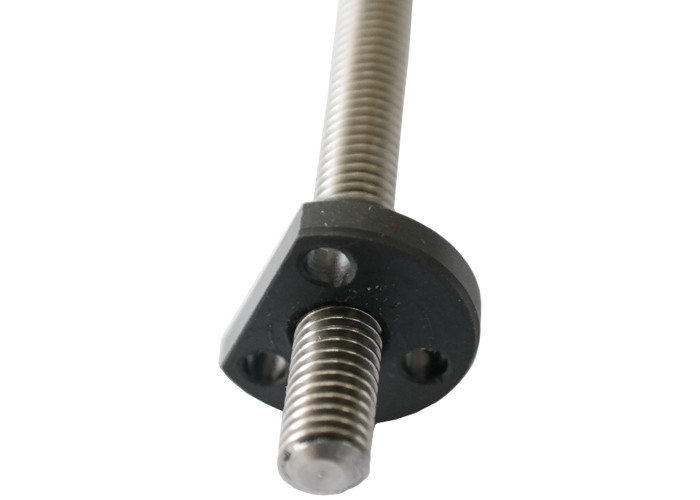

3D Printer Stainless Steel Lead Screw Assembly , Trapezoidal Screw Nut Full Tooth

Place of Origin Jiangsu, China (Mainland)
Brand Name VIC-TECH
Certification RoHS
Model Number TR8
Minimum Order Quantity 1 Unit
Price $6.00 - $12.00 / Units
Packaging Details Standard export package, or can be customized
Delivery Time 15-30 work days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 100000Units per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Screw Outer Diameter 8mm Thread Tolerance 4h
Product Number TR8 Category Trapezoidal Screw
Material Grade Class A Standard Type National Standard
Head Type Full Tooth Performance Level 4.8
High Light

trapezoidal screw nut


t8 lead screw nut


Full Tooth Trapezoidal Screw Nut

Leave a Message
Product Description

Factory direct quality screw 3D printer stainless steel trapezoidal screw nut trapezoidal screw nut

Product Name: Trapezoidal screw
Process: threaded raceway adopts machining, machining precision is carried out according to national standard JB/T 2886-2008, machining diameter range is φ2~14, machining lead range is 1~14, custom machining left rotation, right rotation, left and right direction integration .
Material: The conventional material of the lead screw is YF45Mnr non-tempered free-cutting alloy steel. The heat treatment hardness can reach HRC58~62, and optional 45#·304 stainless steel, etc. The nut material can be tin bronze, aluminum bronze, brass, cast iron, stainless steel. Etc., our company also accepts processing customization, please feel free to contact us if you need.

3D Printer Stainless Steel Lead Screw Assembly , Trapezoidal Screw Nut Full Tooth 0

Mechanical Dimension:MM

3D Printer Stainless Steel Lead Screw Assembly , Trapezoidal Screw Nut Full Tooth 1

Technical Features

number Spec model Outer dia Lead Head count Tooth distance Outer dia
max Min
1 Tr3.5*1-N1-RH 3.5 1 1 1 3.5 3.475
2 Tr3.5*0.6096-N1-RH 3.5 0.6096 1 0.6096 3.5 3.475
3 Tr3.5*2.4384-N2-RH 3.5 2.4384 2 1.2192 3.5 3.475
4 Tr4-RH 4       4 3.975
5 Tr5*1-N1-RH 5 1 1 1 5 4.975
6 Tr5*2-N2-RH 5 2 2 1 5 4.975
7 Tr5*4-N4-RH 5 4 4 1 5 4.975
8 Tr5*6-N6-RH 5 6 6 1 5 4.975
9 Tr6*1-N1-RH 6 1 1 1 6 5.975
10 Tr6*2-N2-RH 6 2 2 1 6 5.975
11 Tr6*4-N4-RH 6 4 4 1 6 5.975
12 Tr6*6-N6-RH 6 6 6 1 6 5.975
13 Tr6*12-N6-RH 6 12 6 2 6 5.975
14 Tr6*12-N12-RH 6 12 12 1 6 5.975
15 Tr8*1-N1-RH 8 1 1 1 8 7.975
16 Tr8*3-N2-RH 8 3 2 1.5 8 7.975
17 Tr8*2-N1-RH 8 2 1 2 8 7.975
18 Tr8*4-N2-RH 8 4 2 2 8 7.975
19 Tr8*8-N4-RH 8 8 4 2 8 7.975
20 Tr8*10-N5-RH 8 10 5 2 8 7.975
21 Tr8*12-N6-RH 8 12 6 2 8 7.975
22 Tr8*14-N7-RH 8 14 7 2 8 7.975
23 Tr8*16-N -RH 8     2 8 7.975
24 Tr8*20-N -RH 8     2 8 7.975
25 Tr9*24-N24-RH 9 24 24 1 9 8.975
26 Tr10*1-N1-RH 10 1 1 1 10 9.975
27 Tr10*1-N2-RH 10     1 10 9.975
28 Tr10*2-N1-RH 10 2 1 2 10 9.975
29 Tr10*3-N2-RH 10 3 2 1.5 10 9.975
30 Tr10*4-N2-RH 10 4 2 2 10 9.975
31 Tr10*8-N4-RH 10 8 4 2 10 9.975
32 Tr10*10-N5-RH 10 10 5 2 10 9.975
33 Tr10*12-N6-RH 10 12 6 2 10 9.975
34 Tr10*14-N -RH 10     2 10 9.975
35 Tr10*20-N -RH 10     2 10 9.975
36 Tr12*2-N1-RH 12 2 1 2 12 11.975
37 Tr12*3-N1-RH 12 3 1 3 12 11.975
38 Tr12*8-N4-RH 12 8 4 2 12 11.975
39 Tr12*4-N -RH 12     2 12 11.975
40 Tr12*12-N -RH 12     2 12 11.975
41 Tr12*10-N4-RH 12 10 4 2.5 12 11.975
42 Tr12.7*12.7-N5-RH 12 12.7 5 2.54 12 11.975
43 Tr14*3-N -RH 14     3 14 13.975
44 Tr14*4-N -RH 14     4 14 13.975

“Stainless Steel Standard Parts” is a specific terminology that encompasses a wide range of products. Stainless steel standard parts are often used for fastening on more expensive machine parts due to their aesthetics, durability, and corrosion resistance. With the advancement of society, higher requirements have been placed on stainless steel standard parts. Stainless steel standard parts also refer to stainless steel screws
Stainless steel standard fasteners typically include the following 12 types of parts:
1. Bolt: A type of fastener consisting of a head and a screw (a cylinder with an external thread) that is to be fitted with a nut for fastening two parts with through holes. This type of connection is called a bolted connection. If the nut is unscrewed from the bolt, the two parts can be separated, so the bolt connection is a detachable connection.
2. Stud: A type of fastener that has no head and is threaded at both ends. When connected, one end is screwed into the part with the internally threaded hole, the other end is passed through the part with the through hole, and then the nut is screwed, even if the two parts are fastened together as a whole. This type of connection is called a stud connection and is also a detachable connection. It is mainly used in the case where one of the connected parts has a large thickness, requires a compact structure, or is frequently used for disassembly, and should not be bolted.
3. Screw: It is also a kind of fastener consisting of two parts, head and screw. It can be divided into three categories according to the purpose: machine screw, set screw and special purpose screw. The machine screw is mainly used for a tightly threaded part and a tight connection with a part with a through hole. No need for a nut fit (this type of connection is called a screw connection and is also a detachable connection; Fitted with a nut for a secure connection between two parts with through holes.) The set screw is primarily used to secure the relative position between the two parts. Special purpose screws such as eyebolts are used for lifting parts.
4. Stainless steel nut: with internal threaded hole, the shape is generally flat hexagonal column shape, but also has a flat square column or a flat cylindrical shape, with bolts, studs or machine screws for fastening two parts. Make it a whole. Special category of nuts
5. Self-tapping screws: Similar to machine screws, but the threads on the screw are dedicated self-tapping screws. It is used to fasten and connect two thin metal members to make them integral. The holes need to be made in advance on the members. Since the screws have high hardness, they can be directly screwed into the holes of the members. Form a responsive internal thread. This form of connection is also a detachable connection.
6. Wood screws: Also similar to machine screws, but the thread on the screw is a special wood screw with ribs that can be screwed directly into the wooden component (or part) for a metal (or non-metal) with a through hole. The parts are fastened together with a wooden component. This connection is also a detachable connection.
7. Washer: A type of fastener that is oblate in shape. Between the support surface of the bolt, the screw or the nut and the surface of the connecting part, it increases the contact surface area of ​​the connected part, reduces the pressure per unit area and protects the surface of the connected part from damage; another type of elastic washer, It also acts to prevent the nut from loosening.
8. Retaining ring: It is installed in the shaft groove or hole of the machine and equipment, and plays the role of preventing the left or right movement of the parts on the shaft or the hole.
9. Pin: It is mainly used for part positioning, and some can also be used for connecting parts, fixing parts, transmitting power or locking other fasteners.
10. Rivet: A type of fastener consisting of two parts, the head and the shank, used to fasten the two parts (or components) with through holes to make them integral. This type of connection is called a rivet connection, referred to as riveting. It is connected to the non-detachable. Because the two parts that are joined together are separated, the rivets on the part are broken.
11. Assembly and connection pair: The assembly refers to a type of fastener supplied in combination, such as a certain machine screw (or bolt, self-supply screw) combined with a flat washer (or spring washer, lock washer); A pair of fasteners that supply a combination of special bolts, nuts, and washers, such as high-strength large hex head bolts for steel structures.
12.Studs: Due to the different types of fasteners consisting of light energy and nail heads (or no nail heads), they are fixedly attached to a part (or component) by welding to connect with other stainless steel standard parts. .

3D Printer Stainless Steel Lead Screw Assembly , Trapezoidal Screw Nut Full Tooth 2

3D Printer Stainless Steel Lead Screw Assembly , Trapezoidal Screw Nut Full Tooth 3

Product Detail Presentation

3D Printer Stainless Steel Lead Screw Assembly , Trapezoidal Screw Nut Full Tooth 43D Printer Stainless Steel Lead Screw Assembly , Trapezoidal Screw Nut Full Tooth 5
