Head Type Full Tooth TR8 Class A Material 8mm Lead Screw Nut / 3d Printer Lead Screw Nut Anti Corrosive

Place of Origin Jiangsu, China (Mainland)
Brand Name VIC-TECH
Certification RoHS
Model Number T8
Minimum Order Quantity 1 Unit
Price $12.00 - $17.00 / Units
Packaging Details Standard export package, or can be customized
Delivery Time 15-30 work days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 100000Units per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Screw Outer Diameter 8mm Thread Tolerance 4h
Product Number TR8 Category Trapezoidal Screw
Material Grade Class A Standard Type National Standard
Head Type Full Tooth Performance Level 4.8
High Light

trapezoidal screw nut

,

t8 lead screw nut

,

3d Printer Lead Screw Nut

Leave a Message
Product Description

lead screw and nut t head screw stepper motor 300mm length threaded t nut for 3D printer trapezoidal



Product Name: Trapezoidal screw

Trapezoidal screw T8 screw stepper motor screw 3D printer screw trapezoidal screw 300mm length with nut
Process: threaded raceway adopts machining, machining precision is carried out according to national standard JB/T 2886-2008, machining diameter range is φ2~14, machining lead range is 1~14, custom machining left rotation, right rotation, left and right direction integration .
Material: The conventional material of the lead screw is YF45Mnr non-tempered free-cutting alloy steel. The heat treatment hardness can reach HRC58~62, and optional 45#·304 stainless steel, etc. The nut material can be tin bronze, aluminum bronze, brass, cast iron, stainless steel. Etc., our company also accepts processing customization, please feel free to contact us if you need.

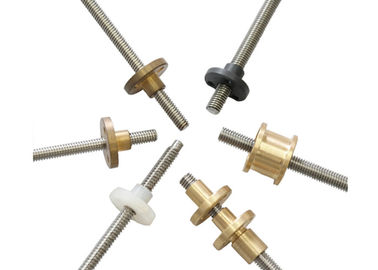

Head Type Full Tooth TR8 Class A Material 8mm Lead Screw Nut / 3d Printer Lead Screw Nut Anti Corrosive 0



Mechanical Dimension:MM

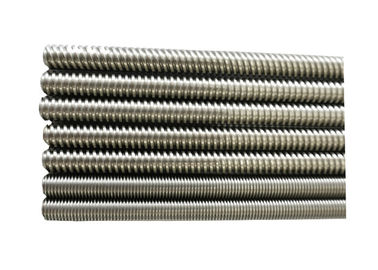

Head Type Full Tooth TR8 Class A Material 8mm Lead Screw Nut / 3d Printer Lead Screw Nut Anti Corrosive 1



Technical Features

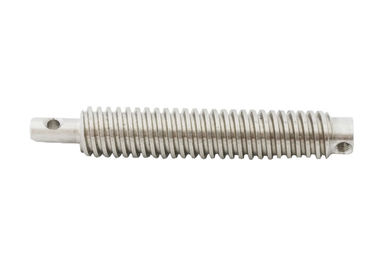

Head Type Full Tooth TR8 Class A Material 8mm Lead Screw Nut / 3d Printer Lead Screw Nut Anti Corrosive 2

* ** Description of the content

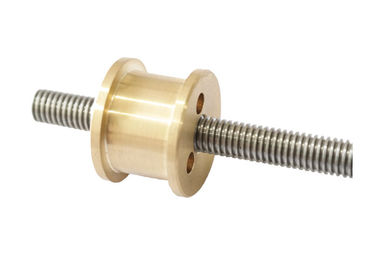

Head Type Full Tooth TR8 Class A Material 8mm Lead Screw Nut / 3d Printer Lead Screw Nut Anti Corrosive 3



This trapezoidal screw is a new type of screw. It is mainly used in stepper motors, machine guides, 3D printers, etc.
Diameter 8MM Currently there are 6 pitches 1MM lead 1MM pitch 2MM lead 2MM 4MM 8MM 12MM 14mm
Leading 1mm-14mm matching nut is all copper nut. Screw is stainless steel 304 wire
There are six specifications for the lead of the screw: 1mm 2mm 4mm 8mm 12mm 14mm. The lead is the distance that the nut moves one turn. After you take the order, please note the lead you want. I will use the specifications of your remarks. Ship



About the trapezoidal screw and nut related instructions
Screw material 45# 40Cr YF45MnV SUS304 SUS316 etc
Nut material Phosphor bronze,Zinc tin bronze,Aluminum zinc bronze
Brass,Ductile iron,stainless steel ,Nylon
Accuracy level 7 level 8 level 9 level
Processing method Cutting processing Roller extrusion
Processing range single head, multiple heads, various tooth types
Sweeping direction left-handed right-handed





Srew Datasheet

No. Spec model Outer dia Lead Thread No. Tooth distance Outer dia
1 Tr3.5*1-N1-RH 3.5 1 1 1 3.5 3.475
2 Tr3.5*0.6096-N1-RH 3.5 0.6096 1 0.6096 3.5 3.475
3 Tr3.5*2.4384-N2-RH 3.5 2.4384 2 1.2192 3.5 3.475
4 Tr4-RH 4       4 3.975
5 Tr5*1-N1-RH 5 1 1 1 5 4.975
6 Tr5*2-N2-RH 5 2 2 1 5 4.975
7 Tr5*4-N4-RH 5 4 4 1 5 4.975
8 Tr5*6-N6-RH 5 6 6 1 5 4.975
9 Tr6*1-N1-RH 6 1 1 1 6 5.975
10 Tr6*2-N2-RH 6 2 2 1 6 5.975
11 Tr6*4-N4-RH 6 4 4 1 6 5.975
12 Tr6*6-N6-RH 6 6 6 1 6 5.975
13 Tr6*12-N6-RH 6 12 6 2 6 5.975
14 Tr6*12-N12-RH 6 12 12 1 6 5.975
15 Tr8*1-N1-RH 8 1 1 1 8 7.975
16 Tr8*3-N2-RH 8 3 2 1.5 8 7.975
17 Tr8*2-N1-RH 8 2 1 2 8 7.975
18 Tr8*4-N2-RH 8 4 2 2 8 7.975
19 Tr8*8-N4-RH 8 8 4 2 8 7.975
20 Tr8*10-N5-RH 8 10 5 2 8 7.975
21 Tr8*12-N6-RH 8 12 6 2 8 7.975
22 Tr8*14-N7-RH 8 14 7 2 8 7.975
23 Tr8*16-N -RH 8     2 8 7.975
24 Tr8*20-N -RH 8     2 8 7.975
25 Tr9*24-N24-RH 9 24 24 1 9 8.975
26 Tr10*1-N1-RH 10 1 1 1 10 9.975
27 Tr10*1-N2-RH 10     1 10 9.975
28 Tr10*2-N1-RH 10 2 1 2 10 9.975
29 Tr10*3-N2-RH 10 3 2 1.5 10 9.975
30 Tr10*4-N2-RH 10 4 2 2 10 9.975
31 Tr10*8-N4-RH 10 8 4 2 10 9.975
32 Tr10*10-N5-RH 10 10 5 2 10 9.975
33 Tr10*12-N6-RH 10 12 6 2 10 9.975
34 Tr10*14-N -RH 10     2 10 9.975
35 Tr10*20-N -RH 10     2 10 9.975
36 Tr12*2-N1-RH 12 2 1 2 12 11.975
37 Tr12*3-N1-RH 12 3 1 3 12 11.975
38 Tr12*8-N4-RH 12 8 4 2 12 11.975
39 Tr12*4-N -RH 12     2 12 11.975
40 Tr12*12-N -RH 12     2 12 11.975
41 Tr12*10-N4-RH 12 10 4 2.5 12 11.975
42 Tr12.7*12.7-N5-RH 12 12.7 5 2.54 12 11.975
43 Tr14*3-N -RH 14     3 14 13.975
44 Tr14*4-N -RH 14     4 14 13.975



Product Detail Presentation

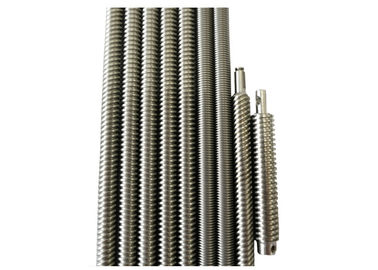

Head Type Full Tooth TR8 Class A Material 8mm Lead Screw Nut / 3d Printer Lead Screw Nut Anti Corrosive 4
