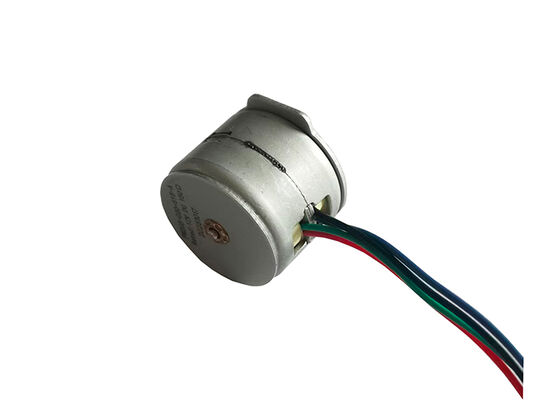

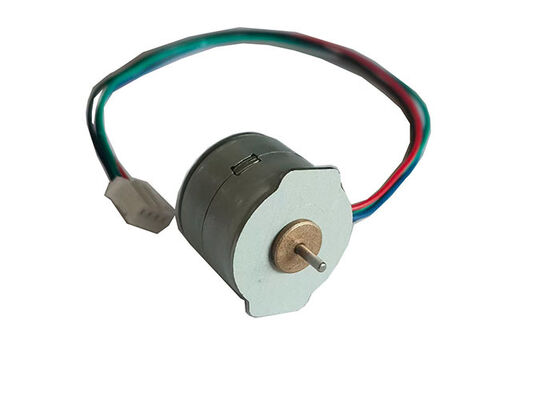

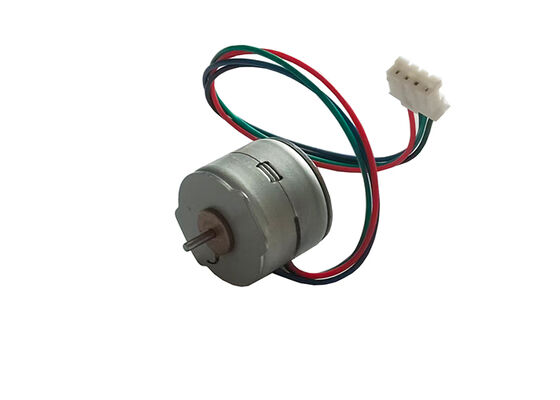

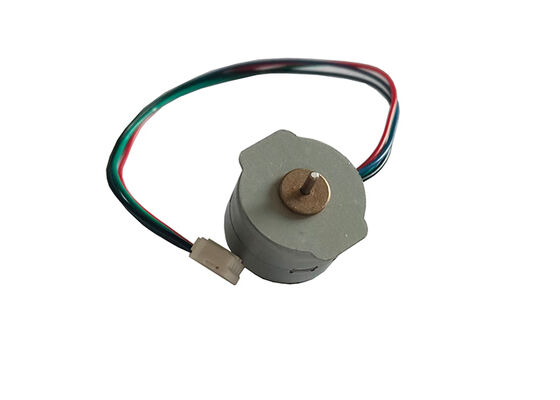

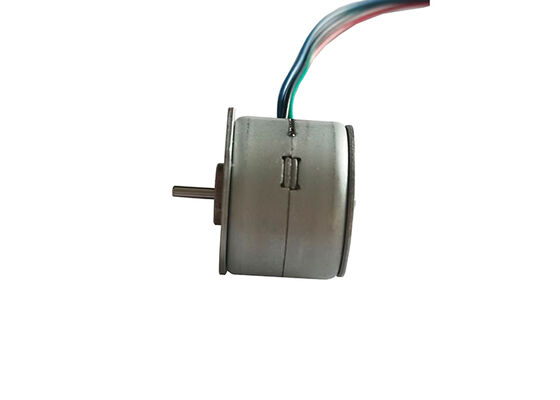

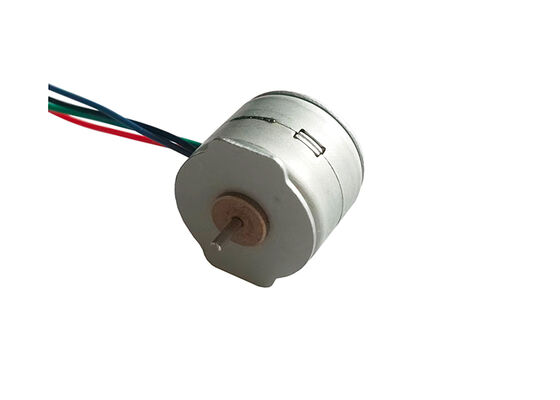

20mm diameter, 2-phase, 18-degree stepper motor, bipolar stepper motor PM20
| Place of Origin | Jiangsu, China (Mainland) |
|---|---|
| Brand Name | VIC-TECH |
| Certification | RoHS |
| Model Number | PM20S-020-515 |
| Minimum Order Quantity | 1Unit |
| Price | $2~$5/Unit |
| Packaging Details | intertional carton box |
| Delivery Time | 15-30 work days |
| Payment Terms | T/T,Western Union,MoneyGram |
| Supply Ability | 1000000 Units/year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Step Angle(degrees) | 18 | Phase | 2 Phase |
|---|---|---|---|
| Voltage | 12V DC | Resistance | 150 Ohm |
| Type | Permanent Magnet | Step Angle | 18°/step |
| Motor Diameter | 20mm |
Product Description
20mm Diameter, 18-Degree Step Angle, 2-Phase Stepper Motor - Model PM20S-020-515
This is a 20mm diameter stepper motor with a 2-phase design, 18° step angle, bipolar four-wire configuration, and round shaft. It operates on 12V DC, with each phase coil having a resistance of 150Ω. Motor parameters can be customized to meet different voltage requirements, including lower voltages such as 5V DC.
All parameters, including cable length, shaft length, connector type, and flange cover design, are customizable. Optional gearbox assemblies are available upon request.
Mechanical Dimension (mm)
Technical Features
- 20mm permanent magnet stepper motor with optional gearbox
- Compliant with EU Environment Standards
- Fully customizable parameters
Typical Applications
- Intelligent security products
- Camera lenses
- Door locks
- Wearable devices
Specifications
| Product model | PM20S-020-515 |
| Motor type | stepper motor |
| Motor diameter | 20mm diameter |
| Coil resistance | 150 Ohm±15% |
| Step angle | 18 degrees |
| Holding torque |
53gf*cm |
| No.of phase | 2 phase |
Competitive Advantages
- High quality at competitive pricing
- Fast delivery with rich inventory
- Convenient location near Shanghai port
Wire Connection Options
Available in Pin type, FPC, PCB, Lead wire configurations - fully customizable to customer requirements.
Fixture Cover Options
Standard models shown below with custom sizes available upon request.
