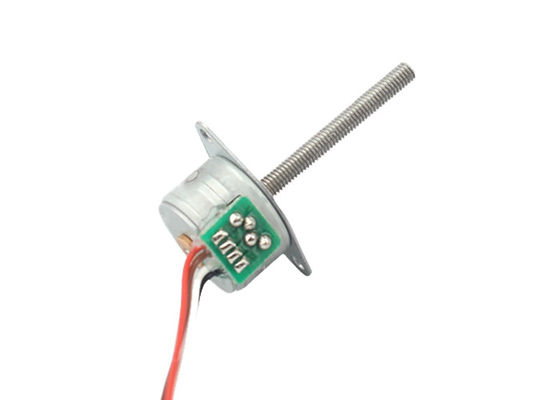

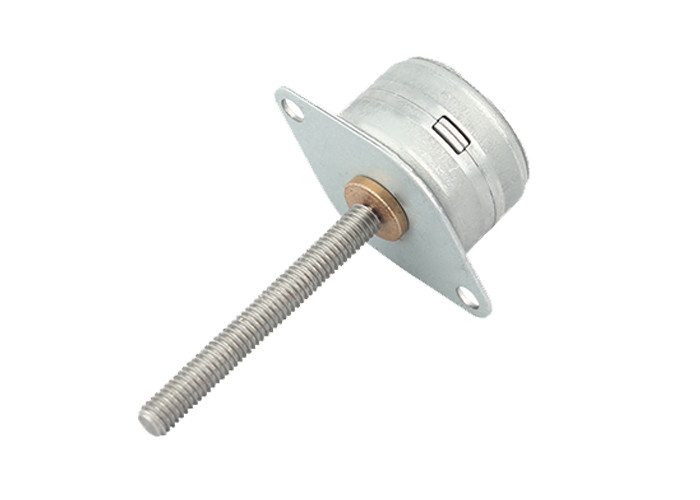

15mm High Speed Permanent Magnet Motor , Long Screw Shaft Motor SM1519

  • 15mm High Speed Permanent Magnet Motor , Long Screw Shaft Motor SM1519
  • 15mm High Speed Permanent Magnet Motor , Long Screw Shaft Motor SM1519
  • 15mm High Speed Permanent Magnet Motor , Long Screw Shaft Motor SM1519
  • 15mm High Speed Permanent Magnet Motor , Long Screw Shaft Motor SM1519
  • 15mm High Speed Permanent Magnet Motor , Long Screw Shaft Motor SM1519
Place of Origin China
Brand Name VIC-TECH
Certification RoHS
Model Number SM1519
Minimum Order Quantity 1 Unit
Price $2.5-$5/unit
Packaging Details Selling Units: Single item plastic box inner , outer paper box Package: single carton packing, 100 - 1000 pieces per box. Lead Time : 30 Days After Deposit
Delivery Time 15-30 work days
Payment Terms MoneyGram, T/T, Western Union, T/T
Supply Ability 1000000units/year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Step Angle 18 ° Voltage 3.0 V
Resistance 15 Ω ± 10% Phase 2
Type Permanent Magnet Current 200 MA
High Light

permanent magnet dc motor

,

pm stepper motor

,

High Speed Permanent Magnet Motor 15mm
Leave a Message
Product Description

SM1519 15mm permanent magnet stepper motor screw shaft linear motor



VSM1519 is a precision micro stepper motor, the output of the use of M3 screw into linear motion, resulting in thrust, can be directly used as an actuator to achieve customer needs action.

The basic stepper motor angle is 18 degrees, the motor runs 20 steps a week, so the displacement resolution can reach 0.025mm, to achieve the purpose of precision control

15mm High Speed Permanent Magnet Motor , Long Screw Shaft Motor SM1519 0

Mechanical Dimension:MM

15mm High Speed Permanent Magnet Motor , Long Screw Shaft Motor SM1519 1

Technical Features

VSM1519 is a precision micro stepper motor, the output of the use of M3 screw into linear motion, resulting in thrust, can be directly used as an actuator to achieve customer needs action.

The basic stepper motor angle is 18 degrees, the motor runs 20 steps a week, so the displacement resolution can reach 0.025mm, to achieve the purpose of precision control

Because of its small size, high precision, easy to control and other excellent features, so the micro stepper motor used in high speed driving small load occasions, such as camera lenses, optical instruments, surveillance lens,

Precision medical equipment, automatic door locks and other fields

Motor input part icon for the light, but can according to the customer demand can be changed to FPC cable, PCB and other forms

At the same time we can complete the corresponding drive system to meet customer needs!

Our team has more than 10 years experience in the design, development and production of micro motors, so we can develop and design the products according to the special needs of customers!



Customer needs is the direction of our efforts, please feel free to contact!



Typical Applications

  • Medical instruments

  • Precision instrument

  • Robot

  • Factory automation

  • Game machine

  • ATM equipment

  • Security equipment

Specifications



Product Name 15 mm permanent magnet stepper motor
Model SM1519
Rated Voltage  3.0 V
Coil Resistance 15 Ω ± 10%
No. Of phase 2 Phases
Step Angle 18 degree
Detent Torque 5.0 gf-cm,At 200 pps
Pull-Out Torque 6.0 gf-cm, At 200 pps
Max. Starting Frequency 500 PPS min. (AT 3.0 V DC)
Max. Slewing Frequency 560 PPS min. (AT 3.0 V DC)
Insulation Class Class E for Coils
Insulation Strength 100 V AC for One Second
Insulation Resistance 50 MΩ (DC 100 V)
Operating Temperature Range -15~+55 ℃
Weight 15 g(Ref.)
OEM & ODM SERVICE AVAILABLE




Competitive Advantage

  • High quality and the best price.
  • Fast deliver,storage company and rich inventory

  • Near Shanghai port, the traffic is very convenient.

Type of Fixture Cover



The regular models are shown in the figure, and the special sizes can be customized.

15mm High Speed Permanent Magnet Motor , Long Screw Shaft Motor SM1519 2

Type of Wire Connect

Motor input method with Pin type, FPC, PCB, Lead wire etc.

These can be customized according to customer needs.

15mm High Speed Permanent Magnet Motor , Long Screw Shaft Motor SM1519 3

Product Detail Presentation

15mm High Speed Permanent Magnet Motor , Long Screw Shaft Motor SM1519 4
