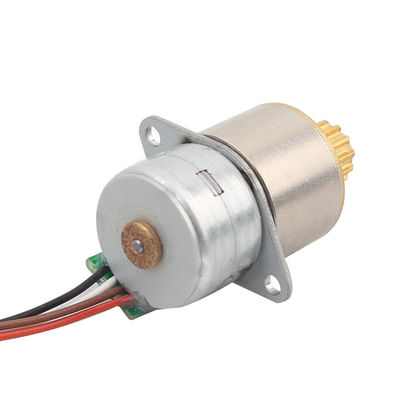

60mA 15mm Permanent Magnet Stepper Motor With Metal Gearbox 18 Degree SM1516

60mA 15mm Permanent Magnet Stepper Motor With Metal Gearbox 18 Degree SM1516

  • 60mA 15mm Permanent Magnet Stepper Motor With Metal Gearbox 18 Degree SM1516
  • 60mA 15mm Permanent Magnet Stepper Motor With Metal Gearbox 18 Degree SM1516
  • 60mA 15mm Permanent Magnet Stepper Motor With Metal Gearbox 18 Degree SM1516
  • 60mA 15mm Permanent Magnet Stepper Motor With Metal Gearbox 18 Degree SM1516
60mA 15mm Permanent Magnet Stepper Motor With Metal Gearbox 18 Degree SM1516
Product Details:
Place of Origin: China
Brand Name: VIC-TECH
Certification: RoHS
Model Number: SM1516
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit
Price: $3.2-$8/unit
Packaging Details: Selling Units: Single item plastic box inner , outer paper box Package: single carton packing, 100 - 1000 pieces per box. Lead Time : 30 Days After Deposit
Delivery Time: 15-30 work days
Payment Terms: MoneyGram, T/T, Western Union, T/T
Supply Ability: 1000000units/year
Contact Now
Detailed Product Description
Step Angle: 18 ° Voltage: 5.0 V
Resistance: 8 Ω ± 10% Phase: 60 MA
Type: Permanent Magnet Current: 200 MA
High Light:

permanent magnet dc motor

,

pm stepper motor

,

60mA Permanent Magnet Stepper Motor

SM1516 15mm permanent magnet stepper motor micro gear stepper motor with metal gearbox



The product is made up of micro stepping motor with outer diameter 15MM and precision metal reducer, and the speed reduction ratio can be customized according to the customer's needs.

All parts of the product are machined on the precision equipment, and the advanced and reliable assembly process is adopted, so that the product has the characteristics of high transmission efficiency, low noise and high reliability.

60mA 15mm Permanent Magnet Stepper Motor With Metal Gearbox 18 Degree SM1516 0

Mechanical Dimension:MM

60mA 15mm Permanent Magnet Stepper Motor With Metal Gearbox 18 Degree SM1516 1

Typical Applications

  • Medical instruments

  • Precision instrument

  • Robot

  • Factory automation

  • Game machine

  • ATM equipment

  • Security equipment

Specifications



Product Name 15mm permanent magnet stepper motor
Model SM1516
Rated Voltage  5.0 V
Coil Resistance 10 Ω ± 10%
No. Of phase 2 Phases
Step Angle 18 degree
Hold Torque  300 gf.cm
Insulation Class Class E for Coils
Insulation Strength 600 V AC for One Second
Insulation Resistance 500 MΩ (DC 100 V)
Operating Temperature Range -20~+70 ℃
Weight 15 g (Ref.)
OEM & ODM SERVICE AVAILABLE




Competitive Advantage

  • High quality and the best price.
  • Fast deliver,storage company and rich inventory
  • Near Shanghai port, the traffic is very convenient.

Torque Curve For Reference



Type of Fixture Cover



The regular models are shown in the figure, and the special sizes can be customized.

60mA 15mm Permanent Magnet Stepper Motor With Metal Gearbox 18 Degree SM1516 2

Type of Wire Connect

Motor input method with Pin type, FPC, PCB, Lead wire etc.

These can be customized according to customer needs.

60mA 15mm Permanent Magnet Stepper Motor With Metal Gearbox 18 Degree SM1516 3

Product Detail Presentation

60mA 15mm Permanent Magnet Stepper Motor With Metal Gearbox 18 Degree SM1516 460mA 15mm Permanent Magnet Stepper Motor With Metal Gearbox 18 Degree SM1516 5
