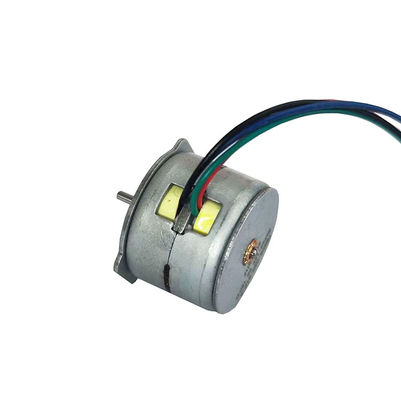

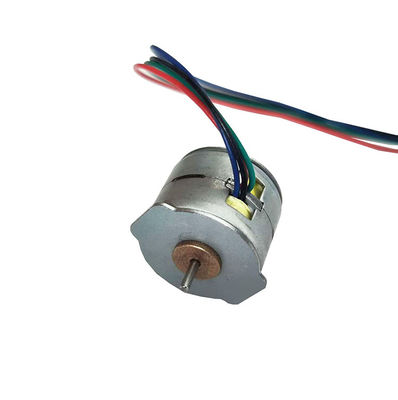

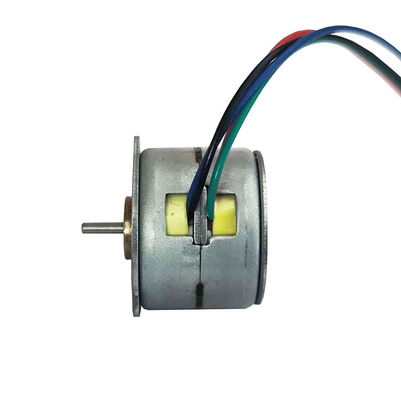

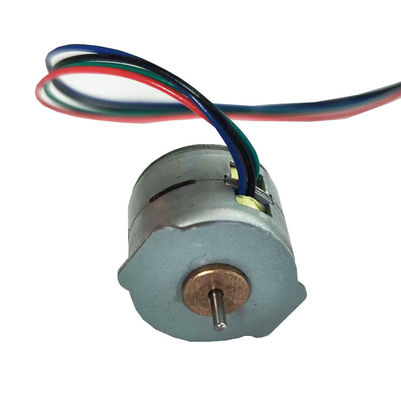

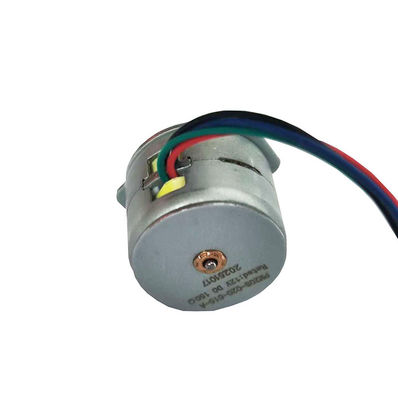

20mm diameter 12V DC 18 degrees step angle bipolar stepper motor with customizable options and gearbox assembly
| Place of Origin | Jiangsu, China (Mainland) |
|---|---|
| Brand Name | VIC-TECH |
| Certification | RoHS |
| Model Number | PM20S-020-515 |
| Minimum Order Quantity | 1Unit |
| Price | $2~$5/Unit |
| Packaging Details | intertional carton box |
| Delivery Time | 15-30 work days |
| Payment Terms | T/T,Western Union,MoneyGram |
| Supply Ability | 1000000 Units/year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Step Angle(degrees) | 18 | Phase | 2 |
|---|---|---|---|
| Voltage | 12V DC | Resistance | 150Ω/phase |
| Type | Permanent Magnet | Step Angle | 18°/step |
| Motor Size | 20mm Diameter | ||
| Highlight | 20mm diameter stepper motor,12V DC stepper motor,18 degrees step angle stepper motor |
||
Product Description
20mm Diameter 12V DC Stepper Motor - Model PM20S-020-515
This 20mm diameter stepper motor features an 18° step angle, bipolar 4-wire configuration with round shaft. Designed for 12V DC voltage with 150Ω/phase coil resistance, the motor's parameters can be customized to match different voltage requirements including lower voltages like 5V DC.
All mechanical parameters including cable length, shaft length, connector type, and flange cap design are customizable. Optional gearbox assembly is available upon request.
Mechanical Dimension (mm)
Technical Features
- 15mm permanent magnet stepper motor with optional gearbox
- Compliant with EU Environment Standards
- Fully customizable parameters
Typical Applications
- Intelligent security products
- Camera lenses
- Door locks
- Wearable devices
Specifications
| Product Model No. | PM20S-020-515 |
|---|---|
| Motor type | Stepper motor |
| Motor size | 20mm diameter |
| Rated voltage | 12V DC |
| Coil resistance | 150Ω/phase |
| Step angle | 18°/step |
| Holding torque | 53gf*cm |
Competitive Advantages
- High quality at competitive pricing
- Fast delivery with rich inventory
- Convenient location near Shanghai port

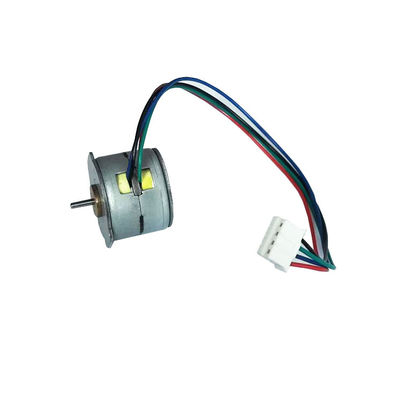

Wire Connection Options
Available in Pin type, FPC, PCB, Lead wire configurations - fully customizable to customer requirements.
Fixture Cover Options
Standard models shown below with custom sizes available upon request.
