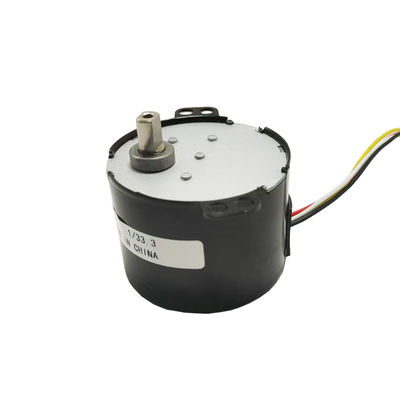

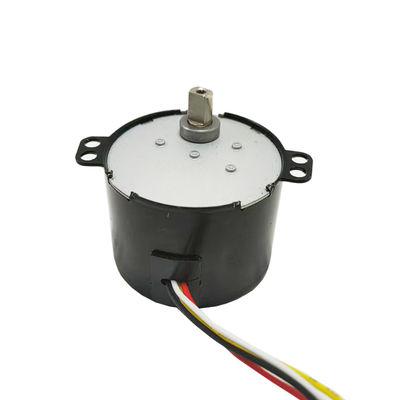

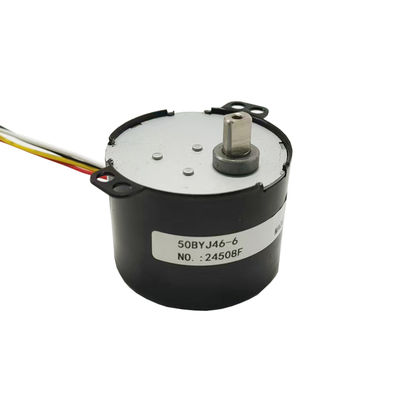

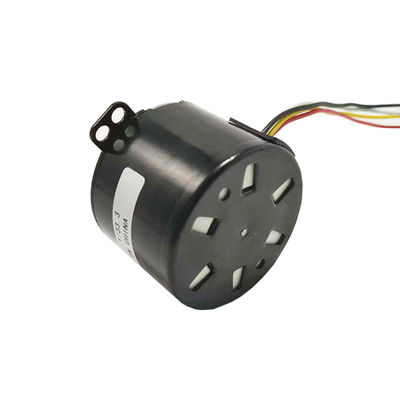

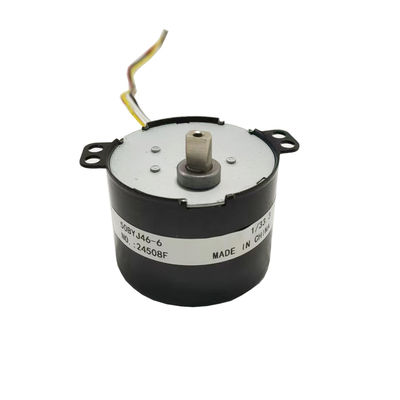

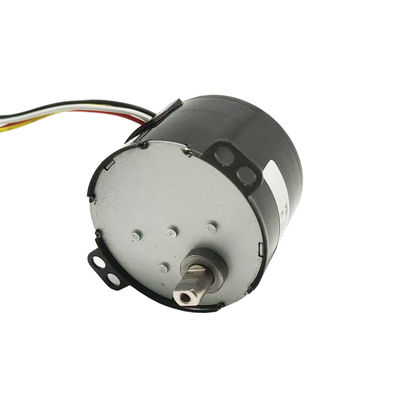

50BYJ46-6 15V DC Permanent Magnet Stepper Motor with 15° Step Angle and 33.3:1 Gear Ratio
| Place of Origin | China |
|---|---|
| Brand Name | VIC-TECH |
| Certification | RoHS |
| Model Number | 50BYJ46-6 |
| Minimum Order Quantity | 1Unit |
| Price | $10/unit |
| Packaging Details | Standard export package, or can be customized |
| Delivery Time | 15-30 work days |
| Payment Terms | MoneyGram,Western Union,Credit Card,T/T,L/C |
| Supply Ability | 10000Units/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Drive Method | 2-2 Phase | Resistance | 23Ω±7%/phase |
|---|---|---|---|
| Step Angle | 15° | Drive Voltage | 15V DC |
| Gear Ratio | 1:33.3 | ||
| Highlight | 15V DC Permanent Magnet Stepper Motor,15° Step Angle Stepper Motor,33.3:1 Gear Ratio Stepper Motor |
||
Product Description
50BYJ46-6 15V DC 4-phase 15° Step Angle Stepper Motor with Permanent Magnet Gearbox, Gear Ratio 33.3:1
This 50mm diameter bipolar stepper motor features four cables and a built-in gearbox with 33.3:1 reduction ratio. Ideal for household appliances, electronic products, and repair applications. The motor includes an M3 threaded hole for secure mounting with an M3 screw.
Operating at 15V DC, the motor's performance is proportional to its coil resistance. Customization options include motor resistance, shaft design, cable length, and connector type to meet specific design requirements.
Mechanical Dimensions (MM)
Typical Applications
- Saliva Analyzer
- Blood Analyzer
- Welding Machine
- Intelligent Security Products
- Fiber Fusion Splicer
- Digital Electronics
Specifications
| Product Name | 50BYJ geared stepper motor |
|---|---|
| Model No. | 50BYJ46-6 |
| Motor diameter | 50mm |
| Resistance | 23Ω±7%/phase |
| Phase No. | 2 phases (Bipolar) |
| Step angle | 15°/33.3 |
| Drive voltage | 15 VDC |
| Gear ratio | 33.3:1 |
| Max starting frequency (15V) | >200 PPS |
| Pull-in torque (15V) | 147 mNm |
Wire Connection Types
Available with pin type, FPC, PCB, or lead wire connections. Custom configurations available to meet specific requirements.
Fixture Cover Options
Standard models shown below, with custom sizes available upon request.
All specifications and configurations can be customized to meet your specific application requirements.
