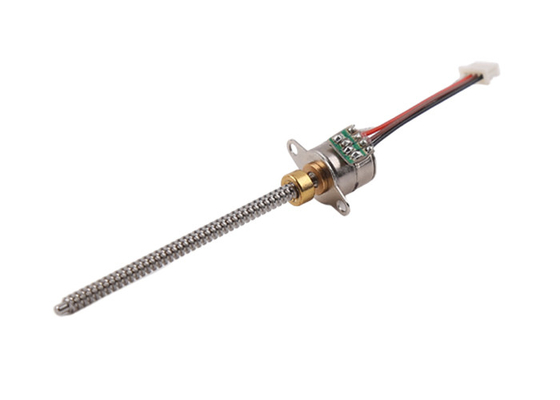

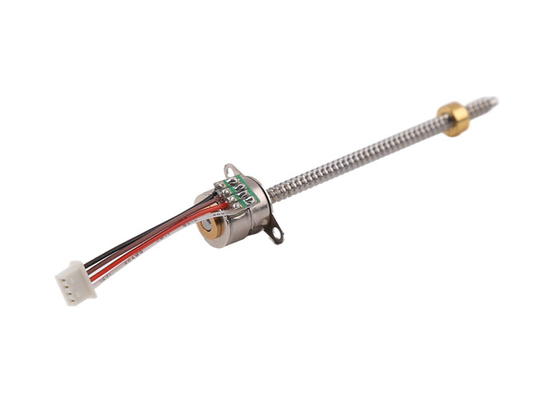

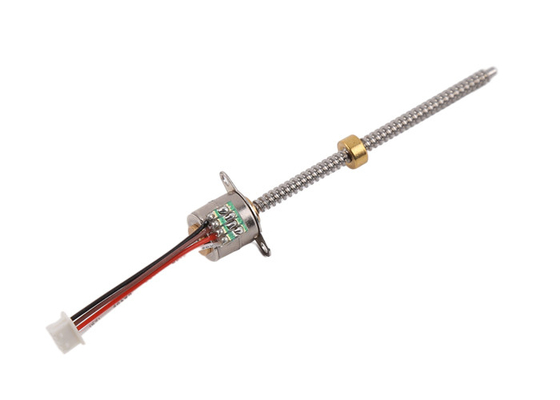

Mini 5VDC Permanent Magnet Stepper Motor Micro Slider Linear Screw Motor 10mm

Place of Origin China
Brand Name VIC-TECH
Certification RoHS
Model Number SM10-56L
Minimum Order Quantity 1 Unit
Price $2.5-$10/unit
Packaging Details Selling Units: Single item plastic box inner , outer paper box Package: single carton packing, 100 - 1000 pieces per box. Lead Time : 30 Days After Deposit
Delivery Time 15-30 work days
Payment Terms MoneyGram, T/T, Western Union, T/T
Supply Ability 1000000units/year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Step Angle 18 ° Voltage 5V
Resistance 18Ω ± 10% Phase 2
Type Permanent Magnet Current / Phase 270 MA
Motor Length 10mm Length Of The Screw 56.5
High Light

5VDC Permanent Magnet Stepper Motor


Micro Slider Permanent Magnet Stepper Motor


Mini Linear Screw Motor 10mm

Leave a Message
Product Description

Mini Stepper Motor 5VDCPermanent Magnet Stepper Motor Linear Screw Motor 10mm Micro Slider Linear Stepper Motor

VSM10-56.5L is a precision micro stepping motor. The output is converted into linear motion by M3 screw rod to generate thrust. We can also customize the matching nut, which can be directly used as an actuator to realize the actions required by customers.

The basic stepper motor angle is 18 degrees, the motor runs 20 steps a week, so the displacement resolution can reach 0.025mm, to achieve the purpose of precision control

Mini 5VDC Permanent Magnet Stepper Motor Micro Slider Linear Screw Motor 10mm 0

Mechanical Dimension:MM

Mini 5VDC Permanent Magnet Stepper Motor Micro Slider Linear Screw Motor 10mm 1



Product Name 10 mm permanent magnet stepper motor
Model SM10-56.5L
Rated Voltage  5V
Coil Resistance 158Ω ± 10%
No. Of phase 2 Phases
Step Angle 18 degree
Detent Torque 5.0 gf-cm,At 500 pps
Pull-Out Torque 6.0 gf-cm, At 500 pps
Max. Starting Frequency 1500 PPS min. (AT 5.0 V DC)
Max. Slewing Frequency 2000 PPS min. (AT 5.0 V DC)
Insulation Class Class E for Coils
Insulation Strength 100 V AC for One Second
Insulation Resistance 50 MΩ (DC 100 V)
Operating Temperature Range -15~+55 ℃
Weight 15 g(Ref.)

Typical Applications

  • Medical instruments

  • Precision instrument

  • Robot

  • Factory automation

  • Game machine

  • ATM equipment

  • Security equipment

Competitive Advantage

  • High quality and the best price.
  • Fast deliver,storage company and rich inventory
  • Near Shanghai port, the traffic is very convenient.

Type of Fixture Cover


The regular models are shown in the figure, and the special sizes can be customized.

Mini 5VDC Permanent Magnet Stepper Motor Micro Slider Linear Screw Motor 10mm 2

Type of Wire Connect

Motor input method with Pin type, FPC, PCB, Lead wire etc.

These can be customized according to customer needs.

Mini 5VDC Permanent Magnet Stepper Motor Micro Slider Linear Screw Motor 10mm 3


Technical Features

Changzhou Vic-Tech Motor Techology Ltd. is a professional manufacturers and scientific research institution, dedicated in brushless motor development, motor application overall solutions, and motor processing and manufacturing. Our company is located in ‘City of Chinese Micro Motor’ Changzhou, Jiangsu Province. With beautiful scenery and convenient traffic, only 1 km away from expressway, 2 km away from railway station, 15 km away from airport. Changzhou is between two cosmopolises, Shanghai and Nanjing, only 100km away from both cities. Convenient logistics and timely information provide conditions for our high efficient and satisfying service. Our company has experience of researching and developing motor over sereval decades, and we have our own developing team with experienced professional engineers and electric experts. With capacity to design new products, provide ralted solutions based on customers’ specific requirements (including mechanical structure, drive control, motor parameters etc.) At the same time, we have 4 manufacturer in Shenzhen, Changzhou and Dongguan to produce stepper motors, permanent-magnet motors, micro motors, and DC motors, and all of them have passed ISO9001:2008 international quality system authentication. We have enough capability for your big orders.

Mini 5VDC Permanent Magnet Stepper Motor Micro Slider Linear Screw Motor 10mm 4

Because of its small size, high precision, easy to control and other excellent features, so the micro stepper motor used in high speed driving small load occasions, such as camera lenses, optical instruments, surveillance lens,

Precision medical equipment, automatic door locks and other fields

Motor input part icon for the light, but can according to the customer demand can be changed to FPC cable, PCB and other forms

At the same time we can complete the corresponding drive system to meet customer needs!

Our team has more than 10 years experience in the design, development and production of micro motors, so we can develop and design the products according to the special needs of customers!
