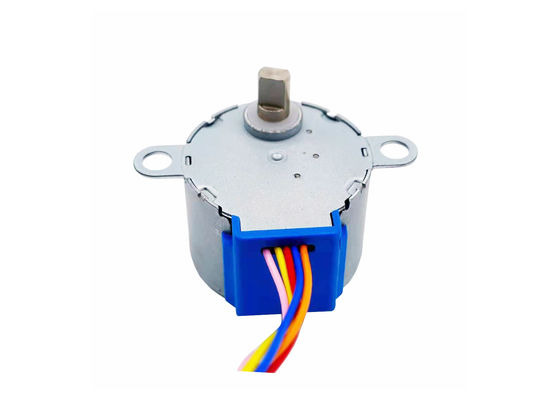

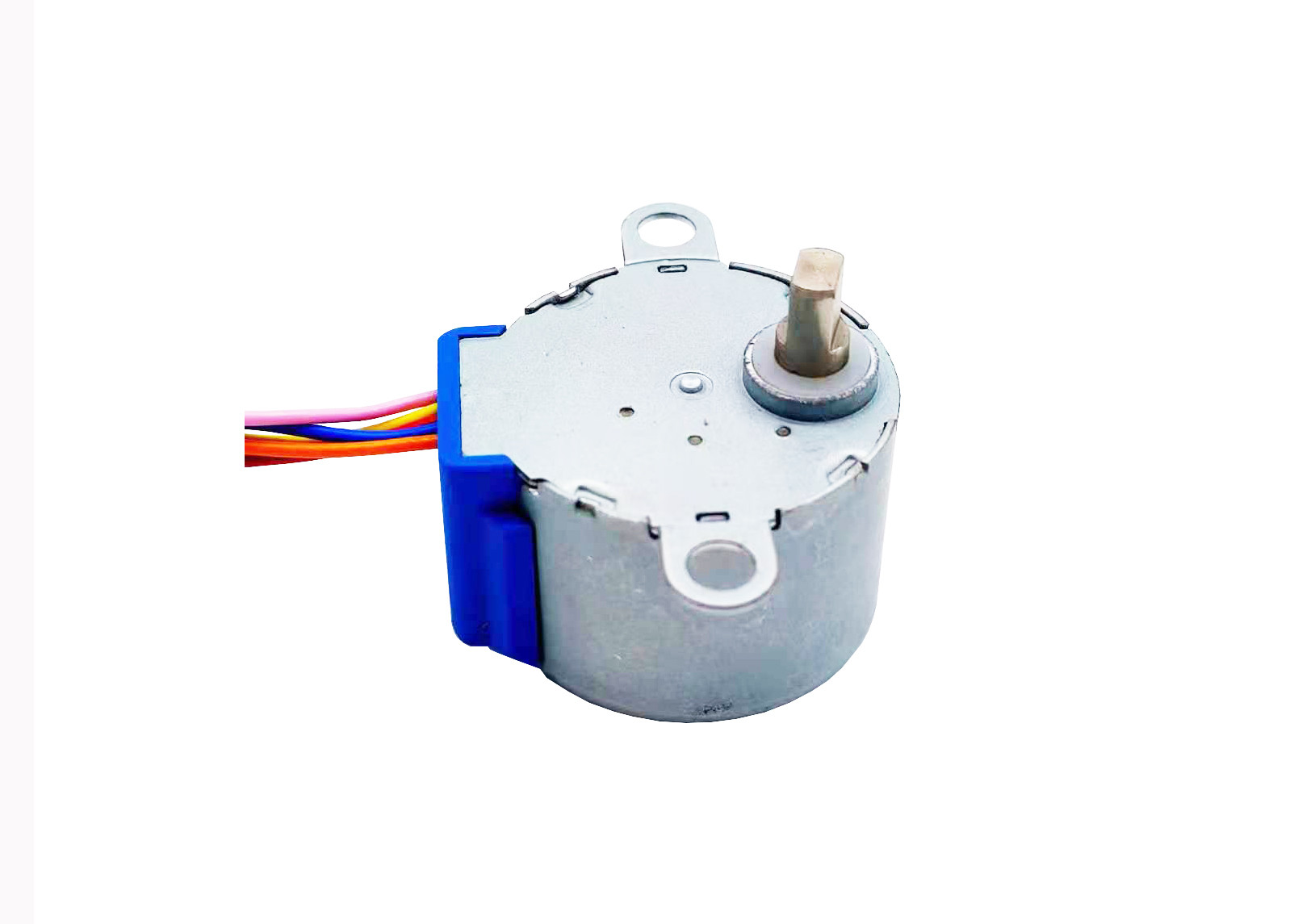

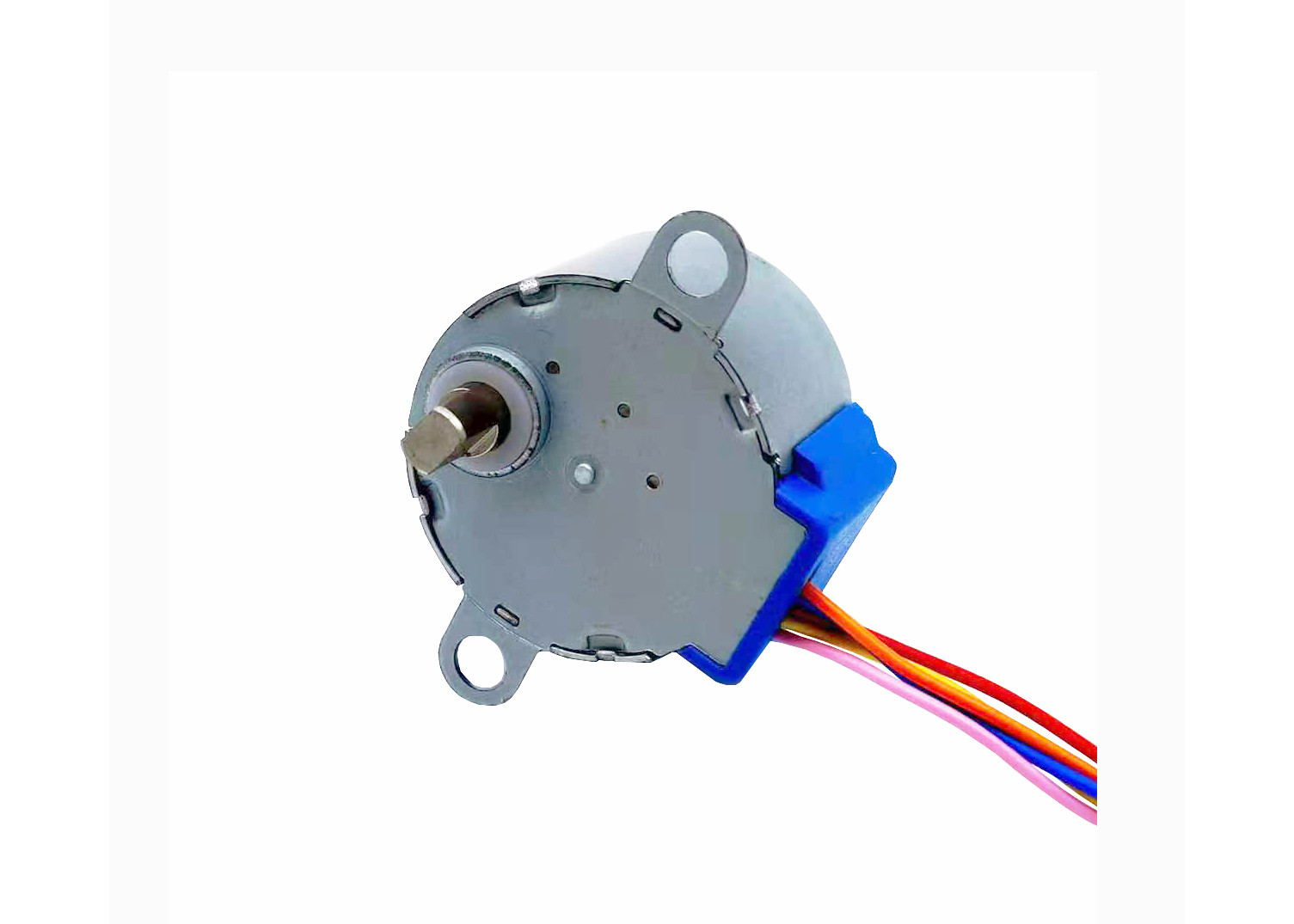

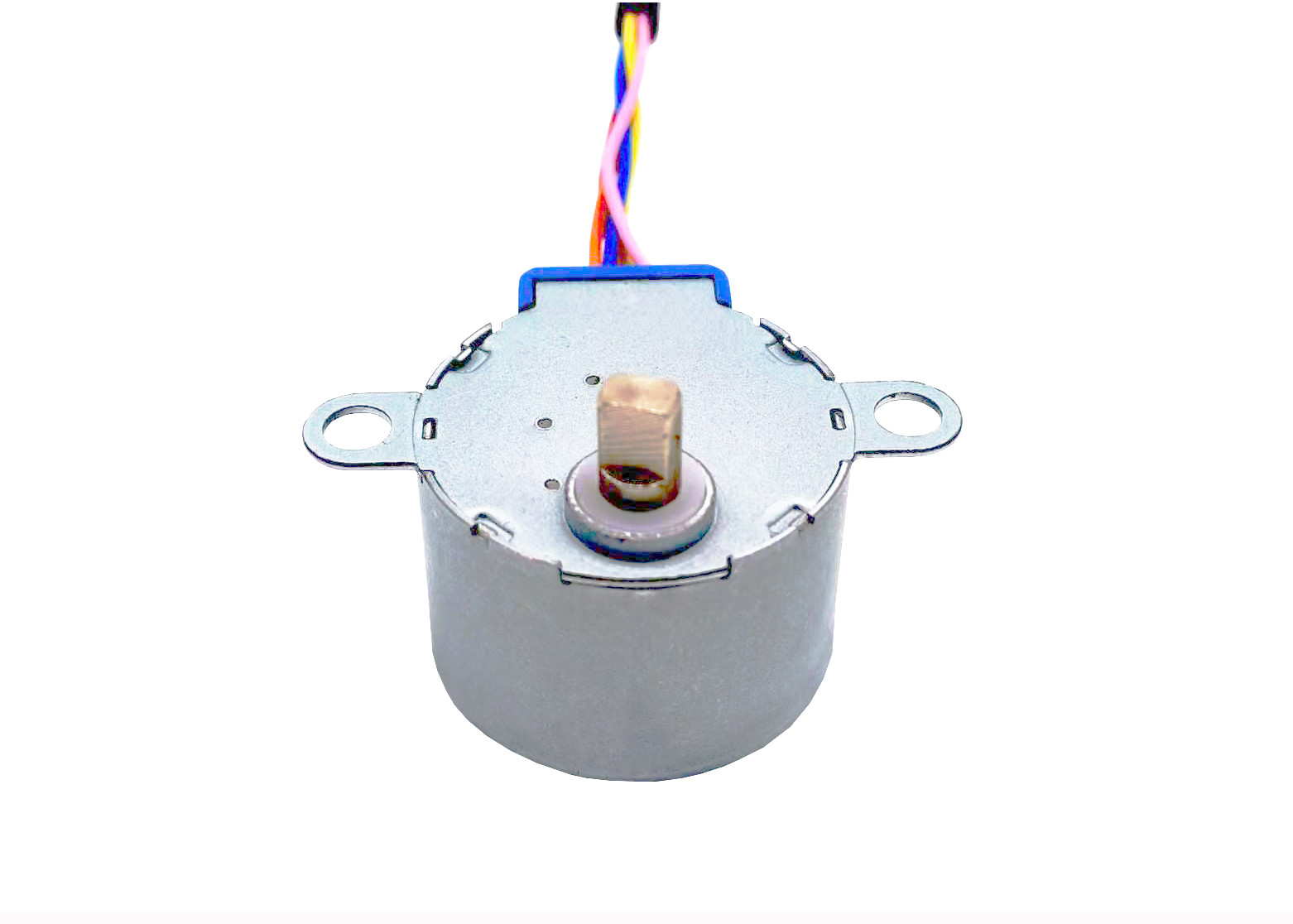

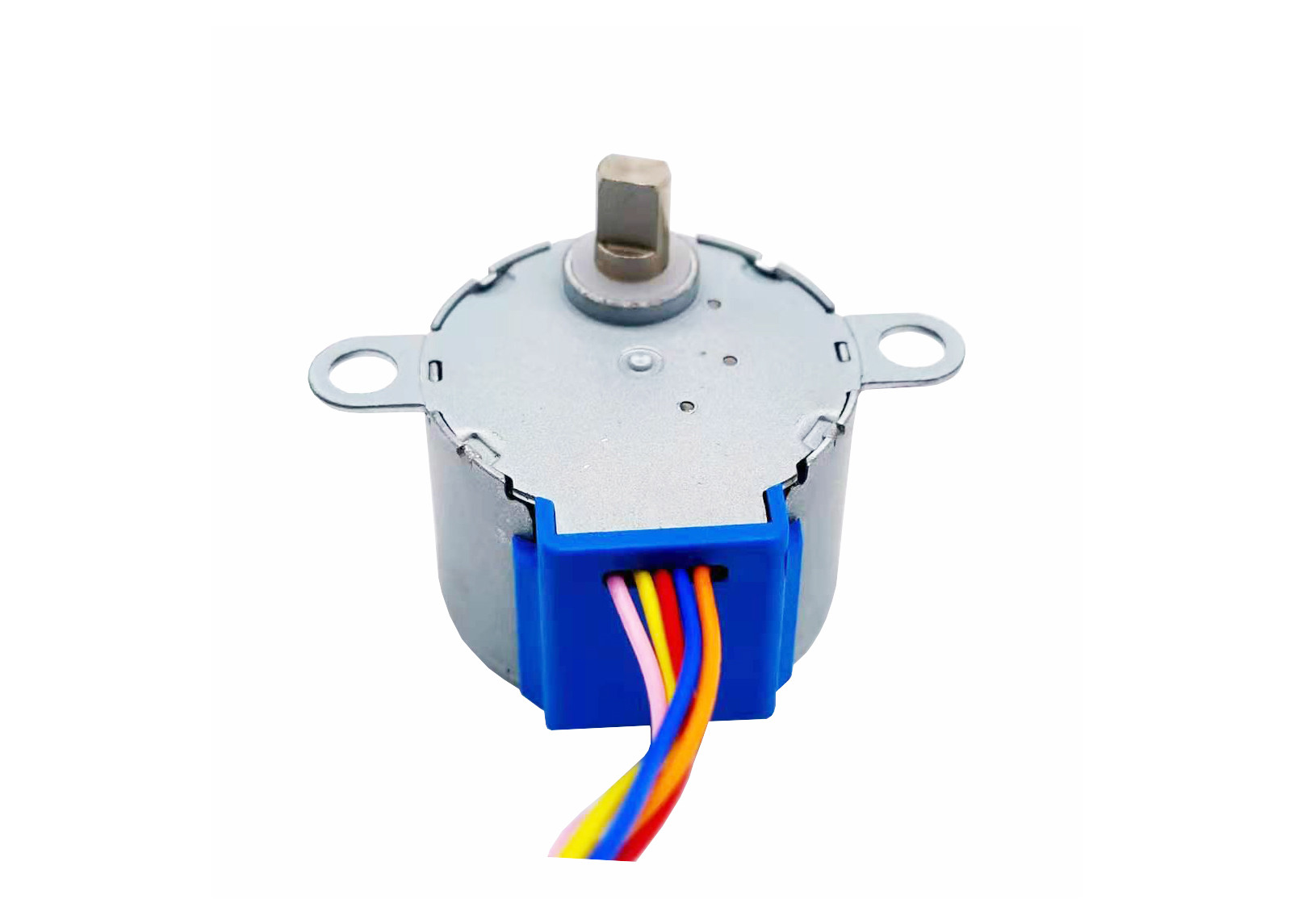

unipolar stepper motor 24mm Diameter Permanent Magnet Stepper Motor With Gearbox

  • unipolar stepper motor 24mm Diameter Permanent Magnet Stepper Motor With Gearbox
  • unipolar stepper motor 24mm Diameter Permanent Magnet Stepper Motor With Gearbox
  • unipolar stepper motor 24mm Diameter Permanent Magnet Stepper Motor With Gearbox
  • unipolar stepper motor 24mm Diameter Permanent Magnet Stepper Motor With Gearbox
  • unipolar stepper motor 24mm Diameter Permanent Magnet Stepper Motor With Gearbox
Place of Origin China
Brand Name VIV-TECH
Certification RoHS
Model Number 24BYJ48-
Minimum Order Quantity 1 Unit
Price $0.68-3.0/unit
Packaging Details Standard export package, or can be customized
Delivery Time 15-30 work days
Payment Terms MoneyGram, T/T, Western Union, T/T
Supply Ability 1000000units/year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Step Angle 11.25°/32 Voltage 12V
Resistance 70Ω Gear Ratio 1:32
Type Permanent Magnet Pull-in Torque ≥58.8mN.m
Custom Torque  ≥29mN.m No-load Pull-in Frequency ≥500HZ
No-load Pull Frequency ≥800HZ Insulation Resistance DC.500v ≥10
Highlight

Dia 24mm Magnet Stepper Motor

,

Gearbox Permanent Magnet Stepper Motor

,

24BYJ48 Permanent Magnet Dc Motor
Leave a Message
Product Description

24BYJ48 24mm diameter permanent magnet stepper motor with gearbox

This product is mainly used for sanitary ware, thermostatic valves, hot water faucets, automatic adjustment of water temperature and water flow, etc.
At the same time, other areas that require precise control can be achieved. Due to the realization of open-loop control, low-cost position control is realized.
It is applied to the precise control of gas valves, water purifier valves, instruments and other automatic control fields.
At the same time, the external wiring part can adopt various types and lengths of connecting wires, or FPC FFC according to customer requirements.
The output part can be used in a variety of ways, such as gears, pulleys, V-grooves, and turbo screws.
The shape of the mounting plate and the angle of the outlet can be adjusted according to customer needs!
Our products can be customized, if you can write to me.











unipolar stepper motor 24mm Diameter Permanent Magnet Stepper Motor With Gearbox 0

Mechanical Dimension:MM

unipolar stepper motor 24mm Diameter Permanent Magnet Stepper Motor With Gearbox 1

Typical Applications

  • Smart Toilet
  • Smart kitchen
  • Air Conditioning
  • Refrigerator
  • Vending Machine
  • Entertainment Equipment

Specifications



Motor diameter

24mm

Rated voltage

12V

Resistance (25℃) Ω phase ±8%

70Ω

Step angle

11.25°/32

Reduction ratio

1:32

Pull-in torque

≥58.8mN.m

Custom torque

≥29mN.m

No-load pull-in frequency

≥500HZ

No-load pull frequency

≥800HZ

Insulation resistance DC.500v

≥10

Insulation dielectric strength

No breakdown or flying fox

Temperature rise 400HZ 3 min

≤60K
noise

≤45dB(A)



Competitive Advantage

  •  High quality and the best price.
  • Fast deliver,storage company and rich inventory

  • Near Shanghai port, the traffic is very convenient.

Torque Curve For Reference



Product Detail Presentation

unipolar stepper motor 24mm Diameter Permanent Magnet Stepper Motor With Gearbox 2unipolar stepper motor 24mm Diameter Permanent Magnet Stepper Motor With Gearbox 3









Type of Fixture Cover



The regular models are shown in the figure, and the special sizes can be customized.

unipolar stepper motor 24mm Diameter Permanent Magnet Stepper Motor With Gearbox 4

Type of Wire Connect

Motor input method with Pin type, FPC, PCB, Lead wire etc.

These can be customized according to customer needs.

unipolar stepper motor 24mm Diameter Permanent Magnet Stepper Motor With Gearbox 5
