15mm Double Stacked 2 Phase 4 Wire PM Stepper Motor

15mm Double Stacked 2 Phase 4 Wire PM Stepper Motor

15mm Double Stacked 2 Phase 4 Wire PM Stepper Motor
15mm Double Stacked 2 Phase 4 Wire PM Stepper Motor
15mm Double Stacked 2 Phase 4 Wire PM Stepper Motor
Product Details:
Place of Origin: China
Brand Name: VIC-TECH
Certification: RoHS
Model Number: SM15
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit
Price: $3.2-$7/unit
Packaging Details: Selling Units: Single item plastic box inner , outer paper box Package: single carton packing, 100 - 1000 pieces per box. Lead Time : 30 Days After Deposit
Delivery Time: 15-30 work days
Payment Terms: MoneyGram, T/T, Western Union, T/T
Supply Ability: 1000000units/year
Contact Now
Detailed Product Description
Step Angle: 18 ° Voltage: 5.0 V
Resistance: 31 Ω ± 10% Phase: 2 Phases
Type: Permanent Magnet Current: 200 MA
High Light:

15mm 4 Wire Stepper Motor

,

Double Stacked PM Stepper Motor

,

2 Phase PM Stepper Motor

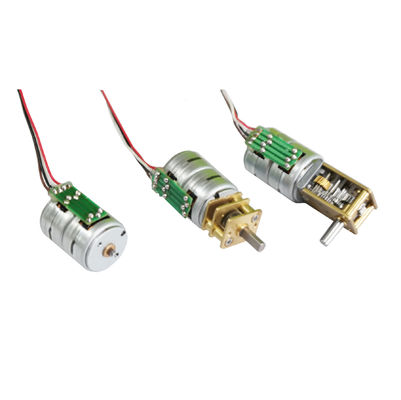

15mm double stacked 4 wires 2 phase 18° step angle double motor

The stepping motor with a diameter of 15 has a stepping angle of 18degrees. Each part is made of precision molds. Therefore, compared with similar products, this product has the advantages of stable rotation, small positioning torque and high efficiency.
All metal parts such as motor casings are treated by environmentally friendly plating. The appearance is exquisite and can be used in relatively harsh environments.



Mechanical Dimension:MM

15mm Double Stacked 2 Phase 4 Wire PM Stepper Motor 0

Technical Features

15mm double stacked motor is our new developed 15mm motor, designed specifically for higher torque requirement, compared to regular 15mm motors.

It has 2 times of length, and about 1.6 times of torque compared to a regular 15 mm stepper motor.



The motor can also be attached with different types of gearboxes, such as worm gearboxes.

Also, the coil resistance can be customized based on customers requirement.





Please feel free to contact us if you want to order our 15mm motors.



Typical Applications

  • Medical instruments

  • Precision instrument

  • Robot

  • Factory automation

  • Game machine

  • ATM equipment

  • Security equipment

Parameters:



Product name 15mm double stacked motor
Rated voltage DC 5V
Phase number 2 phases
Coil resistance 31Ω±10%
Exciting mode 2-2
Insulation level F class
Max pull out frequency 1300 Hz min
Max pull in frequency 800 Hz min
Pull out torque 10.5 gf*cm (500PPS) min




Competitive Advantage

  • High quality and the best price.
  • Fast deliver,storage company and rich inventory
  • Near Shanghai port, the traffic is very convenient.

Torque Curve For Reference



Type of Fixture Cover



The regular models are shown in the figure, and the special sizes can be customized.

15mm Double Stacked 2 Phase 4 Wire PM Stepper Motor 1

Type of Wire Connect

Motor input method with Pin type, FPC, PCB, Lead wire etc.

These can be customized according to customer needs.

15mm Double Stacked 2 Phase 4 Wire PM Stepper Motor 2
