Customized Cover Permanent Magnet Stepper Motor For Medical Machine SM15

  • Customized Cover Permanent Magnet Stepper Motor For Medical Machine SM15
  • Customized Cover Permanent Magnet Stepper Motor For Medical Machine SM15
  • Customized Cover Permanent Magnet Stepper Motor For Medical Machine SM15
Place of Origin China
Brand Name VIC-TECH
Certification RoHS
Model Number SM15
Minimum Order Quantity 1 Unit
Price $3.2-$5/unit
Packaging Details Selling Units: Single item plastic box inner , outer paper box Package: single carton packing, 100 - 1000 pieces per box. Lead Time : 30 Days After Deposit
Delivery Time 15-30 work days
Payment Terms MoneyGram, T/T, Western Union, T/T
Supply Ability 1000000units/year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Step Angle 18 ° Voltage 5.0 V
Resistance 8 Ω ± 10% Phase 60 MA
Type Permanent Magnet Current 200 MA
Highlight

small permanent magnet motor

,

pm stepper motor

,

Medical Machine Permanent Magnet Stepper Motor
Leave a Message
Product Description

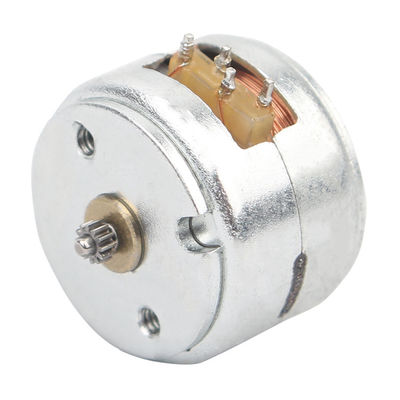

SM15 15mm permanent magnet stepper motor 15by micro gear motor for medical equipment

The stepping motor with a diameter of 15 has a stepping angle of 18degrees. Each part is made of precision molds. Therefore, compared with similar products, this product has the advantages of stable rotation, small positioning torque and high efficiency.
All metal parts such as motor casings are treated by environmentally friendly plating. The appearance is exquisite and can be used in relatively harsh environments.

Customized Cover Permanent Magnet Stepper Motor For Medical Machine SM15 0

Mechanical Dimension:MM

Customized Cover Permanent Magnet Stepper Motor For Medical Machine SM15 1

Technical Features

The stepping motor with a diameter of  15 has a stepping angle of 18degrees. Each part is made of precision molds. Therefore, compared with similar products, this product has the advantages of stable rotation, small positioning torque and high efficiency.
All metal parts such as motor casings are treated by environmentally friendly plating. The appearance is exquisite and can be used in relatively harsh environments.



Precision medical equipment, automatic door locks and other fields

Motor input part icon for the light, but can according to the customer demand can be changed to FPC cable, PCB and other forms

At the same time we can complete the corresponding drive system to meet customer needs!

Our team has more than 10 years experience in the design, development and production of micro motors, so we can develop and design the products according to the special needs of customers!



Customer needs is the direction of our efforts, please feel free to contact!



Typical Applications

  • Medical instruments

  • Precision instrument

  • Robot

  • Factory automation

  • Game machine

  • ATM equipment

  • Security equipment

Specifications



Product Name 15mm permanent magnet stepper motor
Model SM15
Rated Voltage  5.0 V
Coil Resistance 8 Ω ± 10%
No. Of phase 2 Phases
Step Angle 18 degree
Max. Starting Frequency 400 PPS min. (AT 10.2 V DC)
Max. Slewing Frequency 450 PPS min. (AT 10.2 V DC)
Insulation Class Class E for Coils
Insulation Strength 600 V AC for One Second
Insulation Resistance 500 MΩ (DC 100 V)
Operating Temperature Range -20~+70 ℃
Weight 25 g(Ref.)
OEM & ODM SERVICE AVAILABLE




Competitive Advantage

  • High quality and the best price.
  • Fast deliver,storage company and rich inventory

  • Near Shanghai port, the traffic is very convenient.

Torque Curve For Reference



Type of Fixture Cover



The regular models are shown in the figure, and the special sizes can be customized.

Customized Cover Permanent Magnet Stepper Motor For Medical Machine SM15 2

Type of Wire Connect

Motor input method with Pin type, FPC, PCB, Lead wire etc.

These can be customized according to customer needs.

Customized Cover Permanent Magnet Stepper Motor For Medical Machine SM15 3

Product Detail Presentation

Customized Cover Permanent Magnet Stepper Motor For Medical Machine SM15 4
