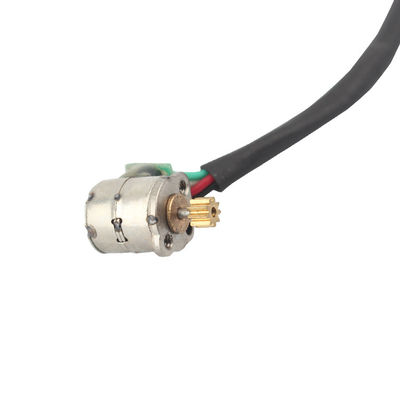

Micro-Step Motor 6mm pm stepper motor 3.3VDC micro stepping motor for Electronic equipment
| Place of Origin | CHINA |
|---|---|
| Brand Name | vic-tech |
| Certification | ROHS |
| Model Number | VSM0656 |
| Minimum Order Quantity | 5 |
| Price | 1.35~ 5 USD |
| Packaging Details | paper box |
| Delivery Time | 15 day |
| Payment Terms | EXW |
| Supply Ability | 1000000PCS/ year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Ambient Temperature | -30℃~+70℃ | Current | 0.050A |
|---|---|---|---|
| Life | ≥5000h | Weight | 0.01kg |
| Holding Torque | 0.8g.cm/800pps | Voltage | 3.3Vdc |
| Motor Type | Micro Stepper Motor | Step Angle | 18°/step |
Product Description
Product Description:
The 6mm stepper motor is a micro stepper motor with the following characteristics:
Small and exquisite: The 6mm stepper motor has a small volume, usually with a diameter of 6mm, making it very suitable for occasions that require miniaturization design.
High accuracy: 6mm stepper motors have high angle and positioning accuracy, typically reaching an angle accuracy of 1.8 degrees per step
Fast speed: The 6mm stepper motor has a fast response speed and can achieve high-speed rotation, with a maximum speed of up to thousands of revolutions per minute.
Simple driving method: The 6mm stepper motor only needs to control the stepper signal to achieve precise rotation, and the driving method is simple.
Low noise: The 6mm stepper motor operates with low noise and will not cause significant interference to the surrounding environment.
Low energy consumption: 6mm stepper motors have low power consumption and are suitable for battery powered applications.
It should be noted that the torque and output power of a 6mm stepper motor are relatively small, making it suitable for some miniaturized and precision application scenarios. If greater torque and output power are required, a stepper motor of corresponding specifications needs to be selected.
Features:
- Product Name: Micro Stepper Motor
- Voltage: 3.3V
- Current: 0.15A
- Ambient temperature: -30℃~+70℃
- Life: ≥5000h
- Insulation resistance: 1MΩ DC100V
Technical Parameters:
| Parameter | Value |
|---|---|
| Motor type | Micro Stepper Motor |
| Voltage | 3.3V |
| Current | 0.05A |
| Resistance | 40Ω |
| Step angle | 18°/step |
| Weight | 0.01kg |
| Holding torque | 0.8g.cm/900pps |
| Life | ≥5000h |
| Noise | ≤35dB |
| Insulation resistance | 1MΩ DC100V |
Applications:
Vic-tech's Micro Stepper Motor, model VSM0656,6mm micro stepper motors are widely used in various fields that require precision control and positioning due to their small size, high accuracy, and fast response speed, including but not limited to:
Automatic equipment: such as vending machine, ATM, Vending machine, etc.
Medical equipment: such as syringes and handheld medical devices in medical devices.
Smart home: such as smart door locks, smart curtains, smart lighting, etc.
Intelligent toys: such as robot toys, aircraft, etc.
Electronic equipment: such as Optical instrument, precision instruments, aerospace equipment, etc.
Cars and ships: such as the steering system of electric vehicles, car seat adjustment systems, and ship automatic control systems.
Customization:
Brand Name: vic-tech
Model Number: VSM0652
Place of Origin: CHINA
Certification: ROHS
Minimum Order Quantity: 5
Price: 5 USD
Packaging Details: paper box
Delivery Time: 15 day
Payment Terms: EXW
Supply Ability: 1000000PCS/ year
Step angle: 18°
Noise: ≤35dB
Current: 0.05A
Holding torque: 0.8g.cm/800pps
Motor type: Micro Stepper Motor
Keywords: Small Stepper Motor, Micro-Stepping Motor, Mini Stepping Motor
Support and Services:
We provide technical support and service for Micro Stepper Motor. Our technical support services include:
1. Expert advice on product selection and application
2. Troubleshooting and repair services
3. Software and firmware updates
4. Technical documentation and training materials
5. Access to our online resources, such as our Knowledge Base and FAQs
6. Access to our technical support team via phone, email, and chat.My email: hongpingye@v-motor.cn
Packing and Shipping:
Packaging and Shipping
- The Micro Stepper Motor is packed in a sturdy box.
- Protective packaging material is used to protect the product from damage during shipping.
- The package is securely sealed.
- The package is shipped through a reliable carrier.
