Motor Manufacturer，Rreliable Quality， Price Concessions
|Place of Origin:||China|
|Minimum Order Quantity:||1 Unit|
|Packaging Details:||Selling Units: Single item plastic box inner , outer paper box Package: single carton packing, 100 - 1000 pieces per box. Lead Time : 30 Days After Deposit|
|Delivery Time:||15-30 work days|
|Payment Terms:||MoneyGram, T/T, Western Union, T/T|
|Step Angle:||18 °||Voltage:||5.0 V|
|Resistance:||8 Ω ± 10%||Phase:||60 MA|
|Type:||Permanent Magnet||Current:||200 MA|
small permanent magnet motor,
pm stepper motor,

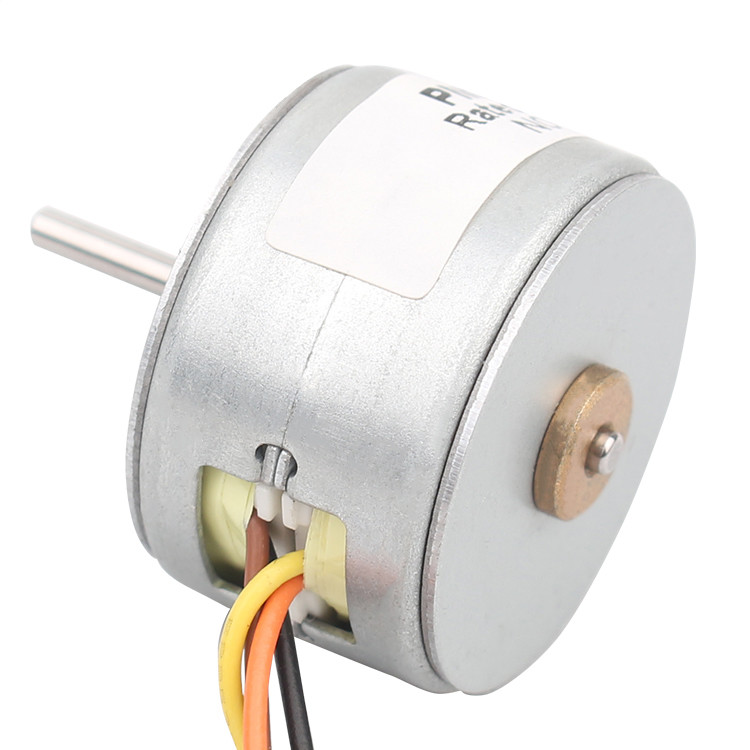

Permanent Magnet Stepper Motor 25mm
The stepping motor with a diameter of 25 has a stepping angle of 18degrees. Each part is made of precision molds. Therefore, compared with similar products, this product has the advantages of stable rotation, small positioning torque and high efficiency.
All metal parts such as motor casings are treated by environmentally friendly plating. The appearance is exquisite and can be used in relatively harsh environments.
Precision medical equipment, automatic door locks and other fields
Motor input part icon for the light, but can according to the customer demand can be changed to FPC cable, PCB and other forms
At the same time we can complete the corresponding drive system to meet customer needs!
Our team has more than 10 years experience in the design, development and production of micro motors, so we can develop and design the products according to the special needs of customers!
Customer needs is the direction of our efforts, please feel free to contact!
|Product Name||25 mm permanent magnet stepper motor|
|Rated Voltage||5.0 V|
|Coil Resistance||8 Ω ± 10%|
|No. Of phase||2 Phases|
|Step Angle||18 degree|
|Max. Starting Frequency||400 PPS min. (AT 10.2 V DC)|
|Max. Slewing Frequency||450 PPS min. (AT 10.2 V DC)|
|Insulation Class||Class E for Coils|
|Insulation Strength||600 V AC for One Second|
|Insulation Resistance||500 MΩ (DC 100 V)|
|Operating Temperature Range||-20~+70 ℃|
|OEM & ODM SERVICE||AVAILABLE|
Near Shanghai port, the traffic is very convenient.
Type of Fixture Cover
The regular models are shown in the figure, and the special sizes can be customized.
Motor input method with Pin type, FPC, PCB, Lead wire etc.
These can be customized according to customer needs.
