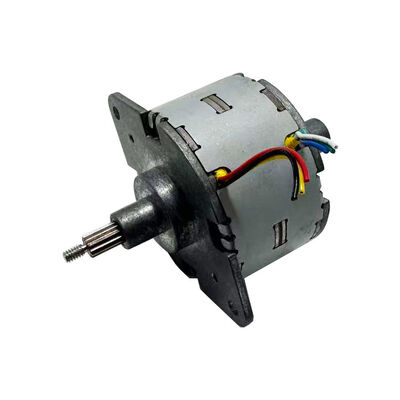

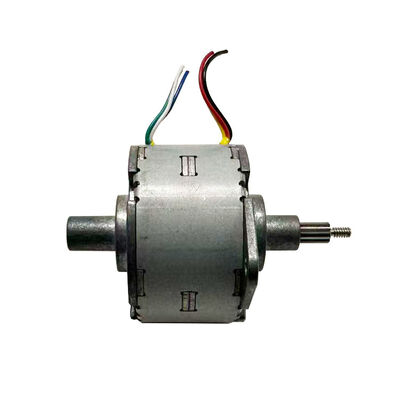

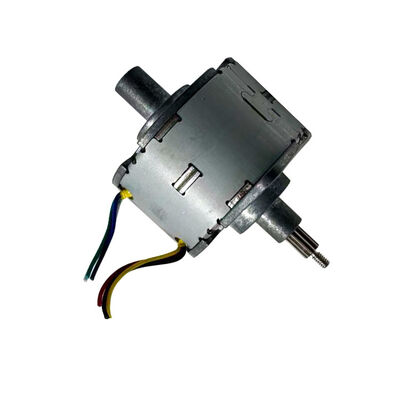

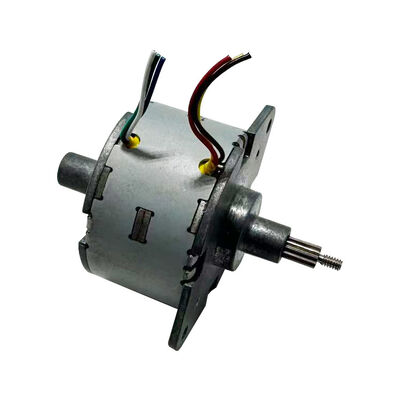

12V DC high torque linear stepper motor, 46mm diameter fixed axis stepper motor
| Place of Origin | China |
|---|---|
| Brand Name | VIC-TECH |
| Certification | RoHS, ISO9001 |
| Model Number | VSM46- |
| Minimum Order Quantity | 1Unit |
| Price | $11~$30/Unit |
| Packaging Details | Standard export package in corrugated carton (Mass production). |
| Delivery Time | 15-30 work days |
| Payment Terms | Western Union, T/T, L/C, |
| Supply Ability | 100000 Units/year |
Product Details
| Motor Type | Permanent Magnet Linear Stepper Motor | Motor Diameter | 46 Mm |
|---|---|---|---|
| Step Angle | 7.5° | Phase Current | 0.41 A |
| Phase Number | 2 Phases (Bipolar) | Coil Resistance | 29Ω/phase |
Product Description
46mm diameter fixed shaft length screw permanent magnet linear stepper motor, voltage 12V
This is a linear screw stepper motor with a diameter of 46mm, and the length of the screw is adjustable.
Since the lead of the screw determines the linear velocity and thrust of the motor, the longer the lead, the higher the linear velocity, and the lower the linear thrust/force.
We offer two different step angles: 7.5 °/step and 15 °/step.
A higher rated voltage will result in higher motor coil resistance, depending on the customer's power supply and driver parameters.
Customers can choose all parameters according to their own needs
Typical applications:
* Medical Equipment
* Linear Robotic Control
* Precision Calibration
* High Precision Valve
* Other Precise Position Movement
Plus tt has extra low noise and high stability.
Design Layout (Unit:mm)
Parameter sheet:
| Motor type | Linear stepper motor |
| Motor diameter | 46mm |
| Rated voltage | 12V |
| Phase current | 0.41A |
| Phase resistance | 29Ω/phase |
| Phase inductance | 52 mH/phase |
| Step angle | 7.5 |
| Screw lead | 1.2192mm (customizable) |
| Step length | 0.0254mm/step |
| Stroke | 24 mm (customizable) |
| Phase No. | 2 phases |
| Insulation resistanc | 20MΩ(DC 500V) |
| Insulation chass | B |
| Operating temp range | -20~﹢55℃ |
| Storang temp range | -40~﹢100℃ |
