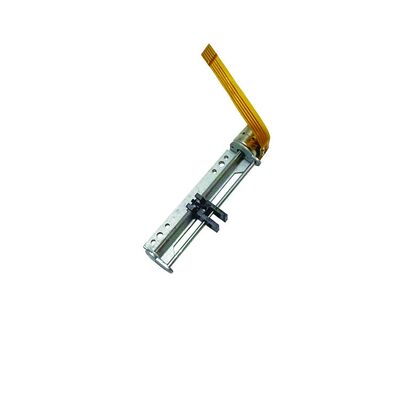

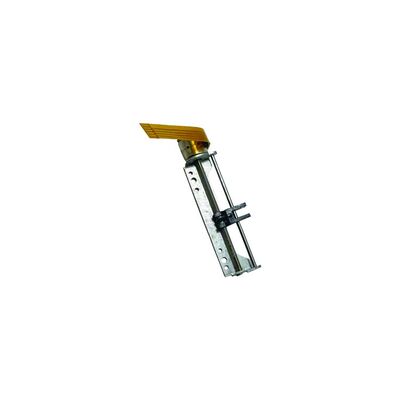

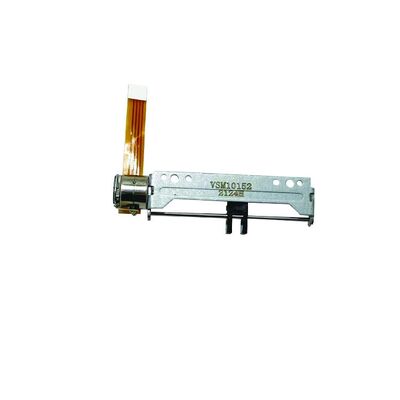

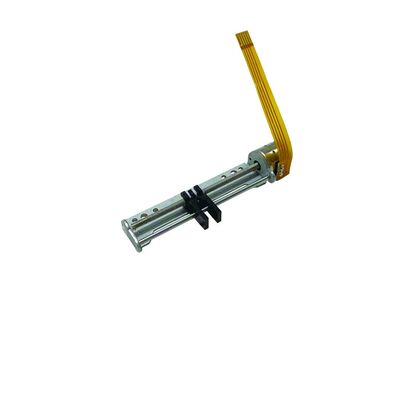

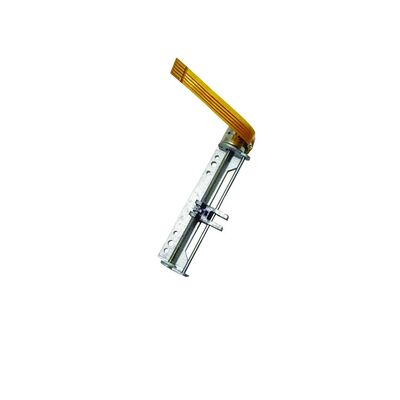

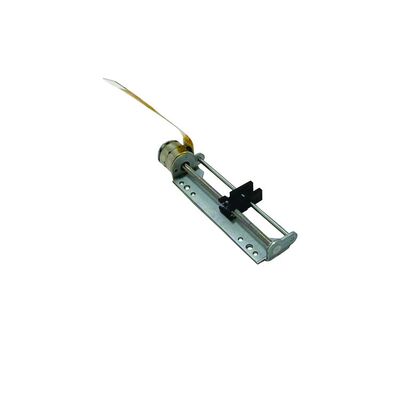

Micro Stepper Motor 10mm Diameter 2 Phase 3.3V DC Screw Motor with 18 Degree Step Angle for Precise Linear Motion Control

Place of Origin	Jiangsu, China (Mainland)
Brand Name	VIC-TECH
Certification	RoHS
Model Number	VSM10152
Minimum Order Quantity	1Unit
Price	$3~$7/Unit
Packaging Details	Selling Units: Single item plastic box inner , outer paper box Package: single carton packing, 100 - 1000 pieces per box. Lead Time : 30 Days After Deposit
Delivery Time	15-30 work days
Payment Terms	T/T, Western Union,
Supply Ability	1000000 Units/year

Product Details

Step Angle(degrees)	18 °	Phase	2
Voltage	3.3V	Resistance	10±10%ohm
Weight	10g	Rotation	CW/CCW
Type	Permanent Magnet

Leave a Message

Product Description

VSM10152 2 Phase 10mm Micro Slider Screw Stepper Motor 3.3V DC Pm Stepper Motor Camera Lens Linear Stepper Motor

VSM10152 is a precision screw motor with a diameter of 10mm, and there is a screw with a pitch of 0.4mm on the output shaft. The screw is supported by the screw and rotates to generate thrust.

The stepping Angle of the motor is 18 degrees. The motor operates 20 steps per week, so the displacement resolution can reach 0.02mm, achieving precise control.

The actuator adopts a subdivision drive mode to meet the requirements.

Our team has over 10 years of experience in the design, development and production of stepper motors, and can achieve product development and auxiliary design according to the special needs of customers!

Our customers' demands are our efforts. Please feel free to contact us at any time!

Micro Stepper Motor 10mm Diameter 2 Phase 3.3V DC Screw Motor with 18 Degree Step Angle for Precise Linear Motion Control

Mechanical Dimension:MM

Micro Stepper Motor 10mm Diameter 2 Phase 3.3V DC Screw Motor with 18 Degree Step Angle for Precise Linear Motion Control

Typical Applications

Intelligent Security Products
Camera Lenses
Door Locks
Wearable device

Specifications

Product Name	10mm micro stepper motor
Model	VSM10152
Rated Voltage	3.3V
Coil Resistance (ohm)	10±10%
No.Of Phases	2
Step Angle	18°
MAX. STARTING FREQUENCY	1000 PPS min. (AT 3.3 V DC)
MAX. SLEWING FREQUENCY	1200 PPS min. (AT 3.3 V DC)
PULL IN TORQUE	3.5 gf-cm min. (AT 500 PPS , 3.3V DC)
PULL OUT TORQUE	4.5gf-cm min. (AT 500 PPS , 3.3V DC)
INSULATION CLASS	CLASS E FOR COILS
INSULATION STRENGTH	300V AC FOR ONE SECOND
INSULATION RESISTENCE	50 MΩ (DC 100 V)
OPERATING TEMPERATURE RANGE	-20~+70℃
OEM & ODM SERVICE	AVAILABLE

Competitive Advantage

High quality and the best price.
Fast deliver,storage company and rich inventory
Near Shanghai port, the traffic is very convenient.

Type Of Wire Connect For Reference

Motor input method with Pin type, FPC, PCB, Lead wire etc.

These can be customized according to customer needs.

Type of Fixture Cover

The regular models are shown in the figure, and the special sizes can be customized.

Micro Stepper Motor 10mm Diameter 2 Phase 3.3V DC Screw Motor with 18 Degree Step Angle for Precise Linear Motion Control

Product Detail Presentation
