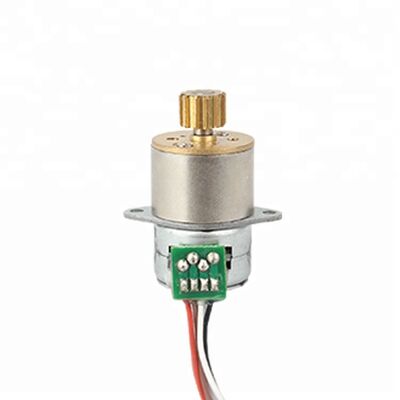

SM1516 15mm Stepper Motor Micro Gear Stepper Motor with Gearbox
Product Details
| Phase | 2 | Torque | 15g*cm |
|---|---|---|---|
| Type | Permanent Magnet | Current / Phase | 0.5A |
| Nema Frame Size | 15mm | Voltage | DC 5 V, 5V |
| Warranty | Other | Gear Ratio | 1/63 |
| Highlight | 15mm micro stepper motor,stepper motor with gearbox,micro gear stepper motor |
||
Product Description

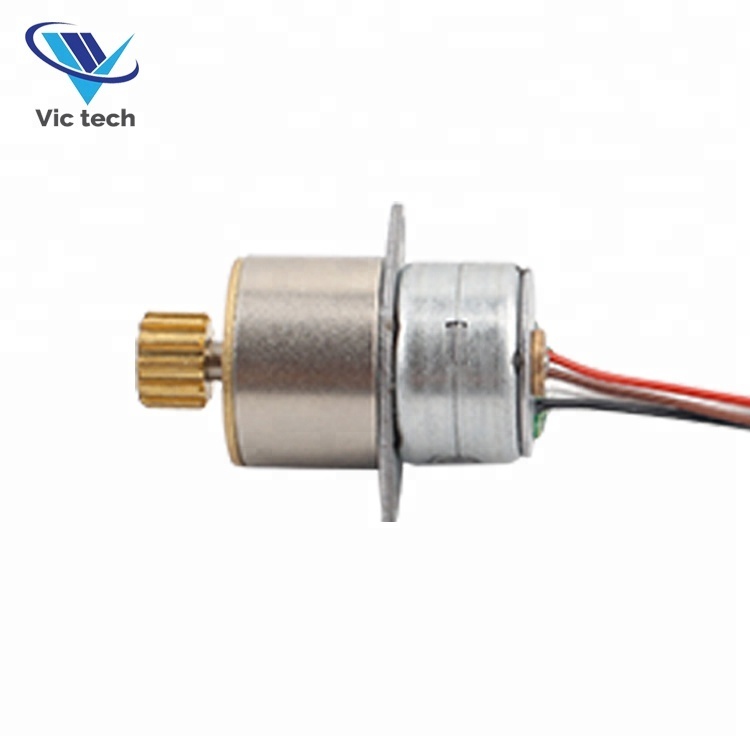

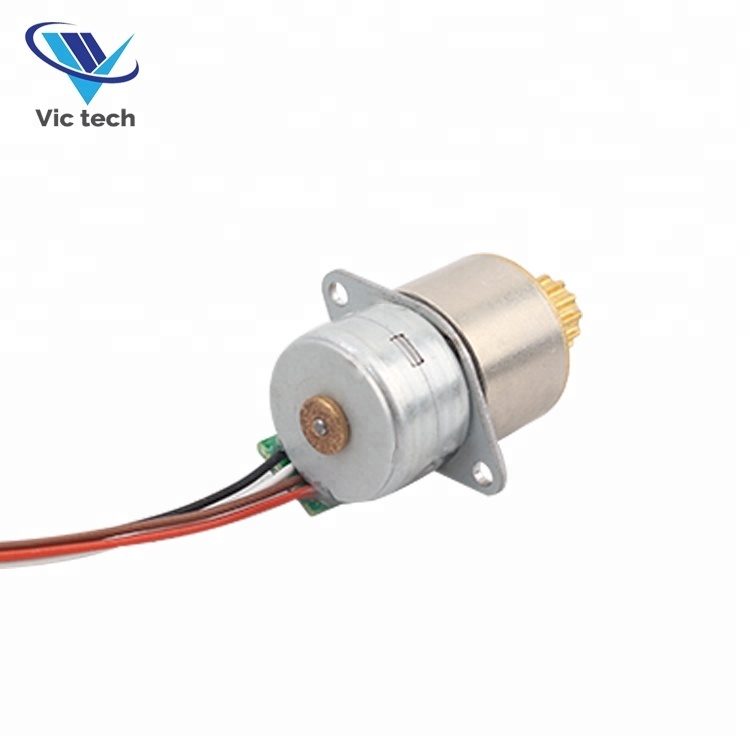

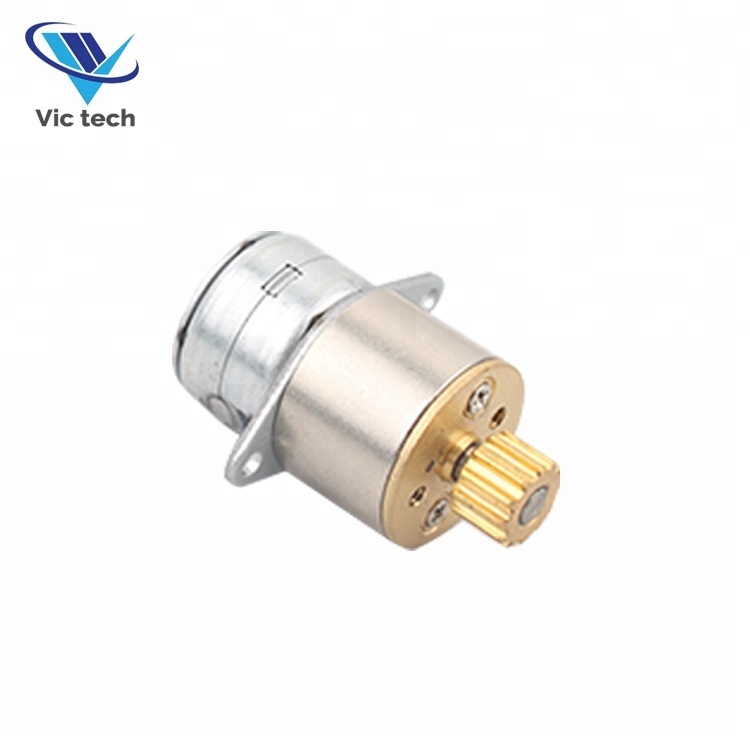

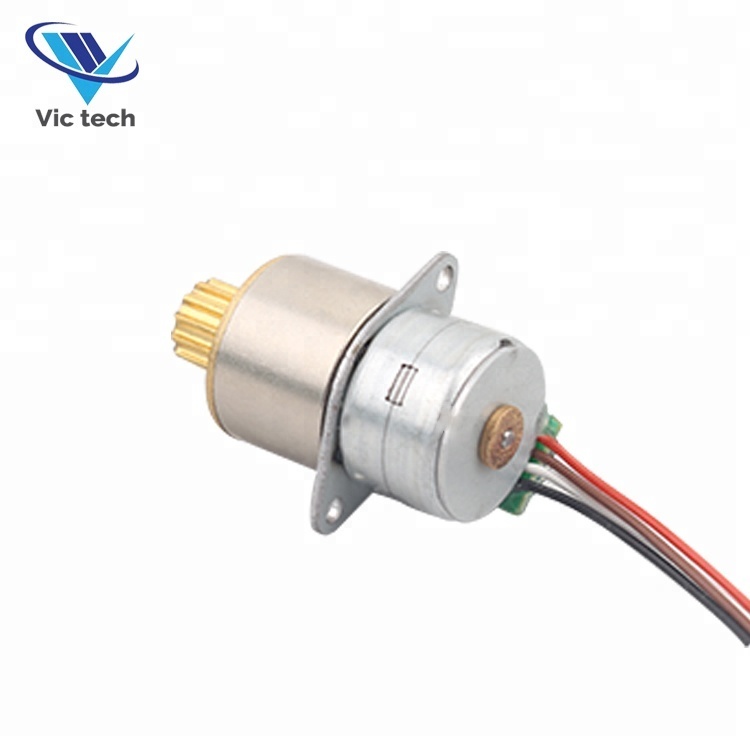

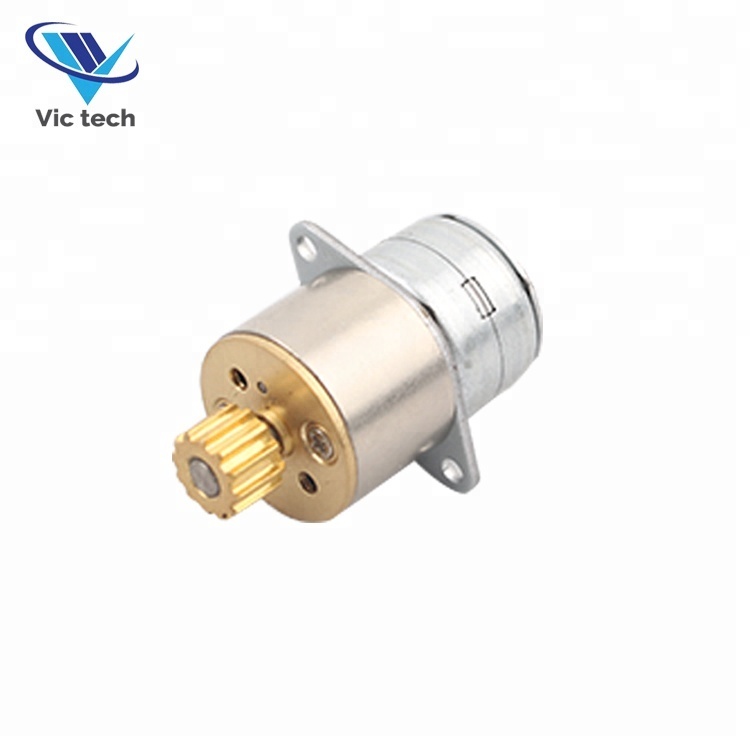

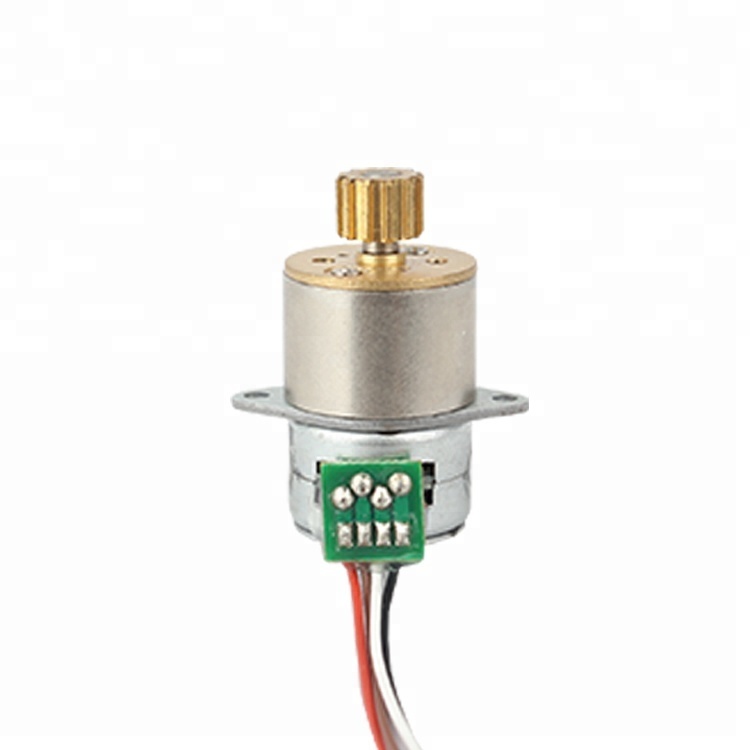

SM1516-63G Gear Stepper Motor
The product is made up of micro stepping motor with outer diameter 15MM and precision metal reducer, and the speed reduction ratio can be customized according to the customer's needs.
All parts of the product are machined on the precision equipment, and the advanced and reliable assembly process is adopted, so that the product has the characteristics of high transmission efficiency, low noise and high reliability.
| MOTOR | |
| PRODUCT NAME | 15mm Micro Geared Stepper Motor |
| MODEL | SM1516-63G |
| COIL TYPE | BIPOLAR |
| STARTING FREQUENCY | 750 PPS min. (AT 2.6V DC) 800 PPS min. (AT 3. 0 V DC) |
| RUNNING FREQUENCY | 800 PPS min. (AT 2.6V DC) 850 PPS min. (AT 3.0 V DC) |
| DETENT TORQUE | 60g.cm |
| RESISTENCE | 5MΩ±7%/phase |
| SYNCHRONOUS WHEEL | |
| MATERIAL | C3604BD |
| GEAX TYPE | MXL |
| TEECH NUMBER | 12 |
| TEECH DIAMETER | 7.254 |
| OEM & ODM SERVICE | AVAILABLE |
SM1516-63G Small Stepper Motor
SHAFT TYPES:
Out shaft standard as follows,also can customerized due to the user drawings
welcome to contact customer service for more types
- Round Type :DIA3mm. 4mm. 5mm
- D-cut Type: DIA3-D2.5 DIA4-D3 etc
- Screw Type: M3 M4 M5 Serial
- Trape Type
- I-cut Type: DIA3-I2 DIA4-I3
- Other Type: Shaft with a hole etc
TYPE of FIXTURE COVER:
The regular models are shown in the figure, and the special sizes can be customized.
TYPE of WIRE CONNECT:
Motor input method with Pin type
, FPC, PCB, Lead wire etc. These can be customized according to customer needs.
