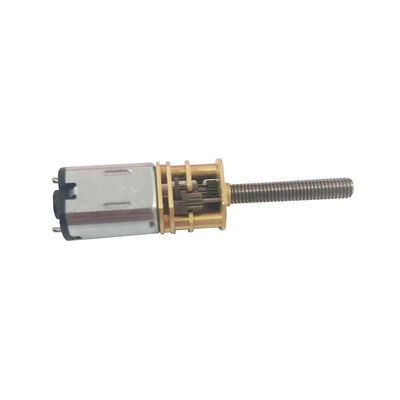

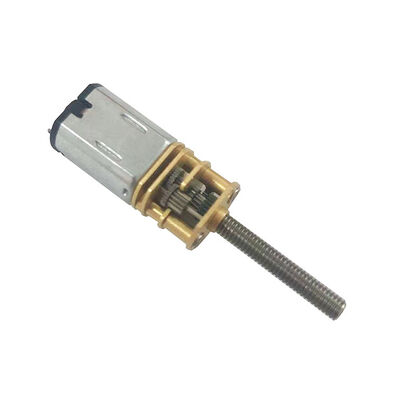

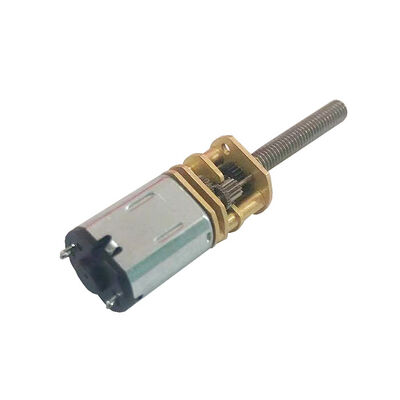

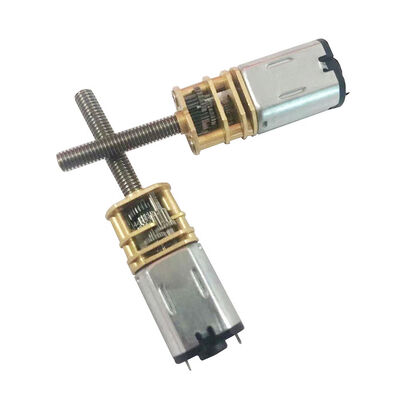

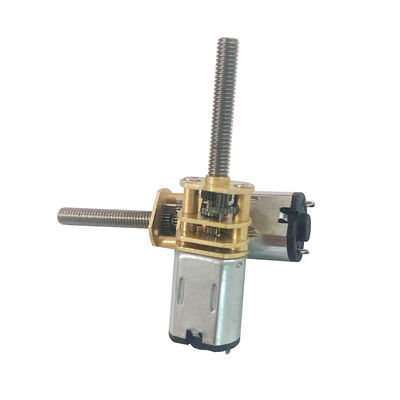

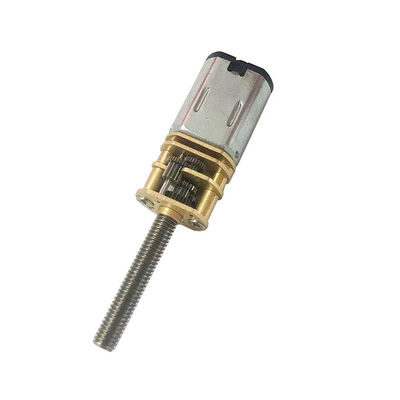

Geared Reducer M10 DC Brushed Motor 5V With M3 Lead Screw Output Shaft
Product Details
| Continuous Current(A) | 0.3A | Efficiency | 50% |
|---|---|---|---|
| Speed(RPM) | 20000 RPM/gear Ratio | Commutation | Brush |
| Construction | Permanent Magnet | Frame | 10mm(0.39in) |
| Motor Mounting Type | Flange Mount | Protect Feature | Other |
| Rated Power | 1W | Rated Voltage | DC 3V |
| Torque | 50 G.cm(0.69oz.in) | Type | Gear Motor |
| Usage | Home Appliance | Warranty | Other |
| Gearbox Type | GM10 (8*10mm) | Gear Material | Brass Gear+ Steel Gears |
| Gear Ratio | 20:1/50:1/100:1/250:1 | Lead Screw Type | M3*0.5P |
| Highlight | M10 DC brushed motor with M3 lead screw,5V geared reducer motor,Micro stepper motor with output shaft |
||
Product Description
Geared Reducer M10 DC Brushed Motor 5V With M3 Lead Screw Output Shaft
This is a M10 brushed DC motor with gearbox on top.
Gearbox is GM10 (8*10mm size), and we have different gear ratio for choice, including 20:1/50:1/100:1/250:1.
Rated voltage is 5V DC, and we also have 3V DC version, if you require lower rated voltage.
Output shaft is regular M3 lead screw, lead screw length is adjustable, if customers need it to be longer/shorter.
Before you place order, please confirm gear ratio/rated speed/ lead screw length.
Electrical Parameters:
|
Model No. |
GM10-M10 |
|
Motor type |
M10 DC motor |
|
Output shaft type |
M3*0.5P length |
|
Unloaded speed |
20000 RPM/gear ratio |
|
Gearbox type |
GM10 gearbox |
|
Rated voltage |
5V DC (Adjustable) |
|
Lead screw length |
18mm (Adjustable) |
Gearbox Parameters:
|
Gear ratio |
20:1 |
50:1 |
100:1 |
250:1 |
|
Precise ratio |
20.313 |
50.312 |
99.531 |
249.943 |
|
Tooth number |
14 |
14 |
14 |
14 |
|
Gear levels |
3 |
5 |
5 |
5 |
|
Efficiency |
71% |
58% |
58% |
58% |
SHAFT TYPES:
Out shaft standard as follows,also can customerized due to the user drawings
welcome to contact customer service for more types
- Round Type :DIA3mm. 4mm. 5mm
- D-cut Type: DIA3-D2.5 DIA4-D3 etc
- Screw Type: M3 M4 M5 Serial
- Trape Type
- I-cut Type: DIA3-I2 DIA4-I3
- Other Type: Shaft with a hole et
-
