Weight:
By using Aluminium Alloy 6061-T651 on bell, its weight becomes lighter with higher tensile strenth.
Bearing:
There are there different Japanese bearings for you to choose.(EZO/NSK/NMB)
Shaft:
Hollow SUS420 Stainless Steel brings higher tensile strength with lighter weight.
Potting:
Using unique technique of pottiing to provide outstanding waterproof performance. We have obtained National utility model patent
certificate.
Durability:
Enough to handle pressure under 200 m of water.
All Products
-
Micro Stepper Motor
-
Permanent Magnet Stepper Motor
-
Geared Stepper Motor
-
Linear Stepper Motor
-
Slider Stepper Motor
-
Hybrid Stepper Motor
-
Small DC Gear Motor
-
ROV Thruster Motors
-
Micro Metal Gearmotor
-
Micro Gearbox
-
Position Control Stepper Motor
-
3D Printer Stepper Motor
-
Stepper Motor Driver
-
DC Motor Controller
-
Lead Screw And Nut
-
Andres BlancoThe thruster have arrived correctly. I tested them on the ROV and we are very happy with the result. The epoxy interior finish is very good and the power of the motors in relation to the size is quite good. -
Gregoire LangeThe cooperation between Changzhou Vic-Tech Motor Tech and our company was just great. Good understanding of our needs, great willing to solve our problems. I recommend !
-
David MoleveltProfessional and clear communication. Order was shipped in time. Counter connectors where added to the shipment. Driver works like we agreed !
-
Buildstorm Private LimitedThe product works as expected, it was packed nicely. Seller responds very quickly and helps in making a buying decision. They are ready to customize the product for you.
-
Ashley GriffinShipment was received very quickly. Product was well protected by packaging. Company rep was cordial and kind. A Plus rating!
16V 32V 300W SW2820 Underwater ROV Thrust Motor for Underwater Robot
Product Details
| Continuous Current(A) | 16 A | Efficiency | Other |
|---|---|---|---|
| Speed(RPM) | 10,000 Rpm | Commutation | Brushless |
| Construction | Permanent Magnet | Frame | 36mm |
| Motor Mounting Type | Flange Mount | Protect Feature | Waterproof |
| Rated Power | 300W | Torque | 1650 |
| Type | Micro Motor | Usage | Boat, Underwater Drone/robot |
| Warranty | 3 Months ~ 1 Year | KV Value | 350 |
| Slot & Pole | 12N14P | Motor Core | Japanese Kawasaki Silicone Steel |
| Shaft Diameter | 3 Mm | Bearing | EZO Stainless Steel |
| Magnet | NdFeB N48H | External Size | 35.5 Mm X 49 Mm |
| Weight | 138 G | ||
| Highlight | 16V 32V underwater ROV motor,300W thrust motor for underwater robot,SW2820 micro stepper motor |
||
Product Description
Product Overview

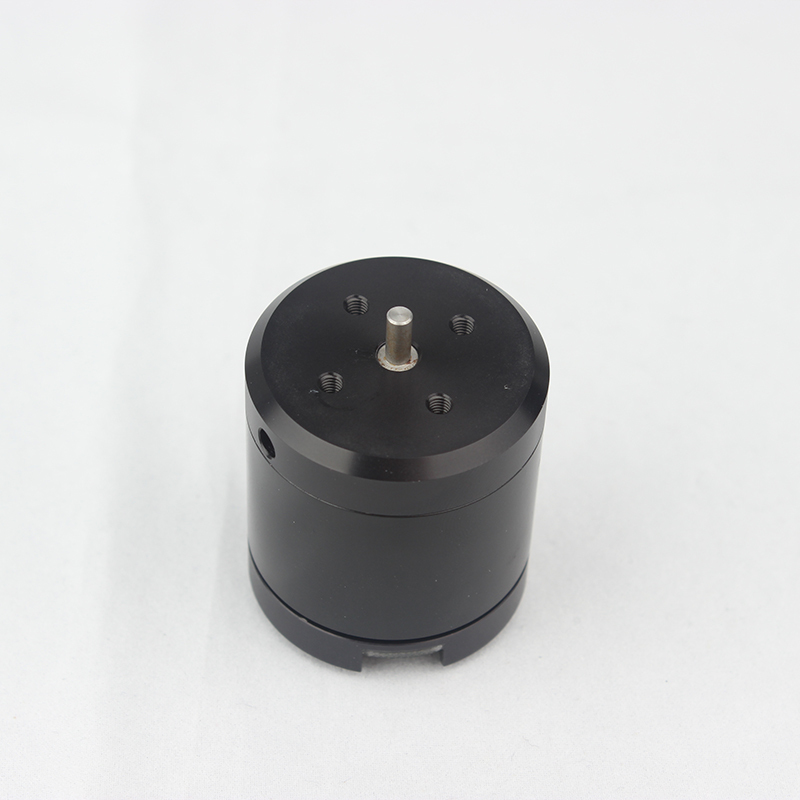

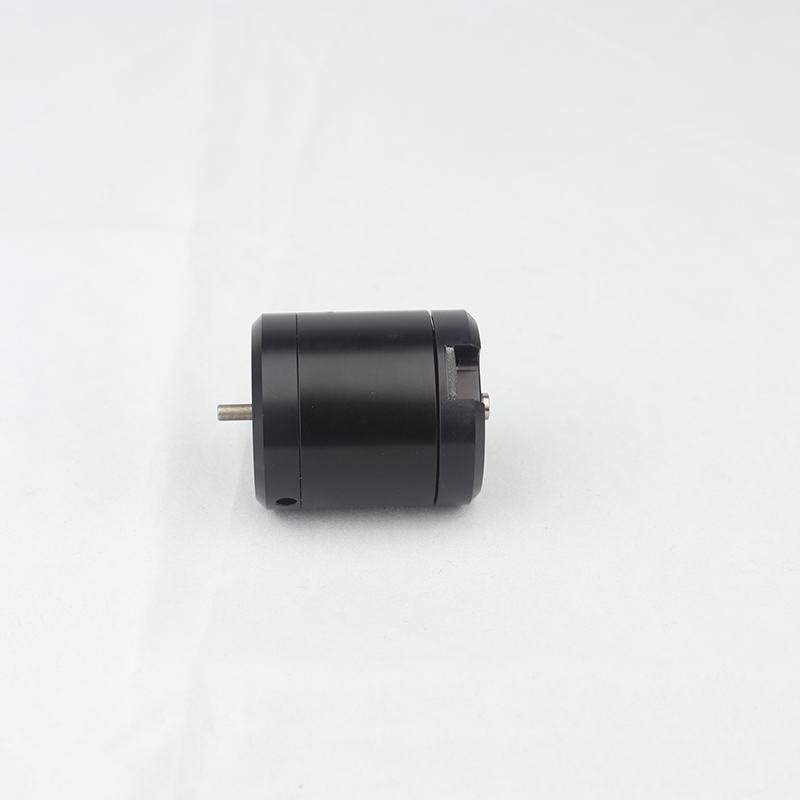

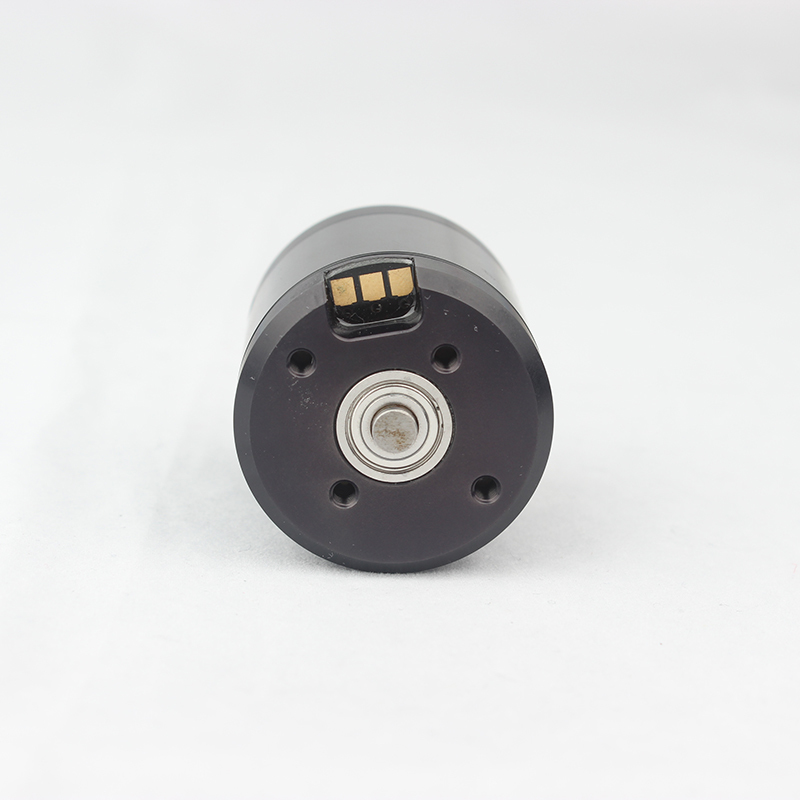

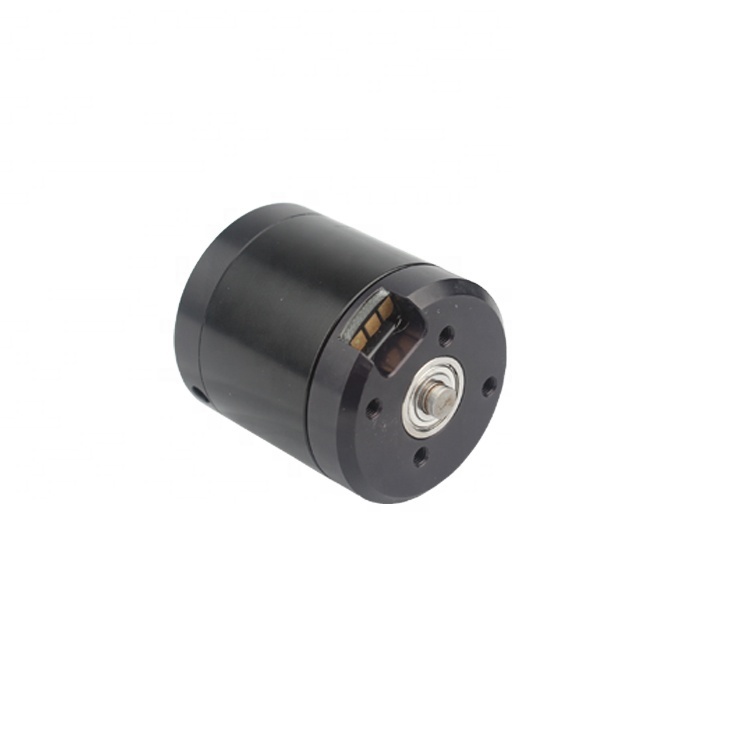

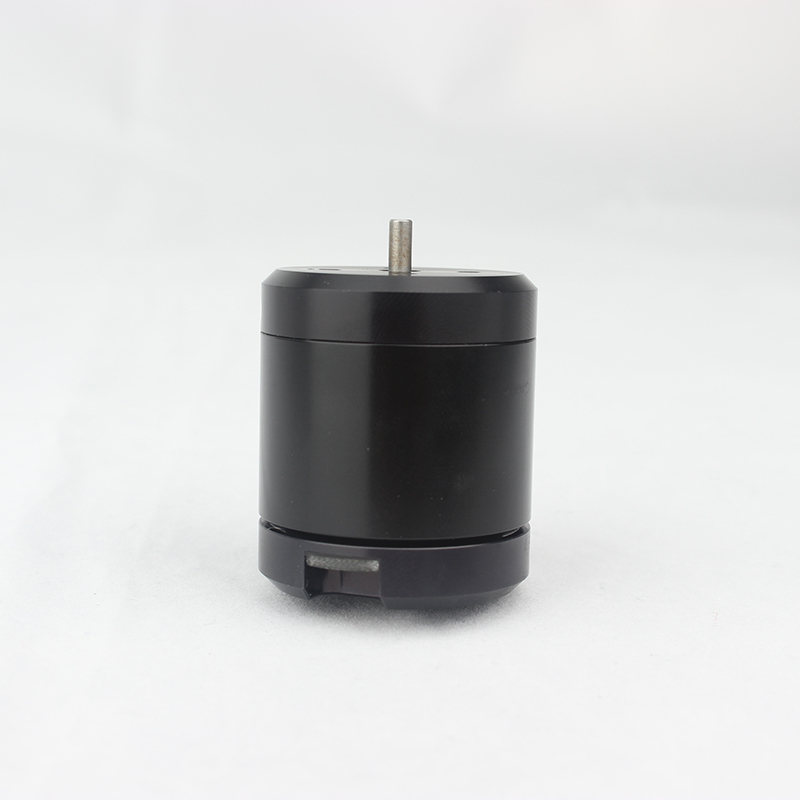

Sumax underwater 2820 ROV motor for underwater robot
The SUMAX 2820 Underwater motor is new designed brushless motor with features specifically for Underwater Robot/ Remote Operated Vehicle (ROV).
Underwater motors, as core components, have strict requirements on water-proof, anti-corrosion, water resistance, etc. As one of earliest manufacturers developing underwater motor in China, we have ripe experience on designing and producing underwater products(we provide OEM service), and reliable experimental data. We haven’t received any complaints about the quality of our underwater motors from our customers yet.
At the same time , in the field of underwater motor potting, we have obtained National utility model patent certificate. We haven’t found any other companies are using this technology to product underwater motors.
FEATURES AT A GLANCE
Details Images
PRODUCT SPECIFICATIONS
KV Value | 350 | Voltage | 24 - 36 V |
Max Current(A) | 15 | Motor Core | Japanese Kawasaki Silicone Steel (Thicknes0.2mm) |
Max Power(W) | 400 | Magnet | NdFeB N48H |
Weight(g) | 138g | Slot & Pole Distribution | 12N14P |
Shaft Diameter(mm) | 3 | Bearing | EZO Stainless Steel |
External Size(mm) | 35.5*49 | Appearance Craft | Hard Anodizing |
