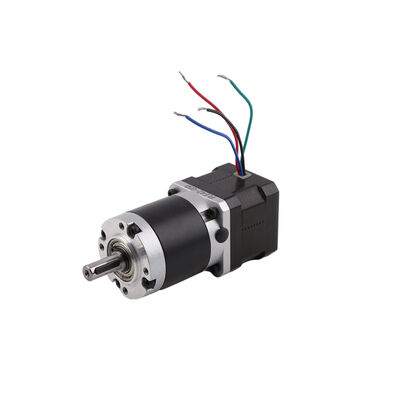

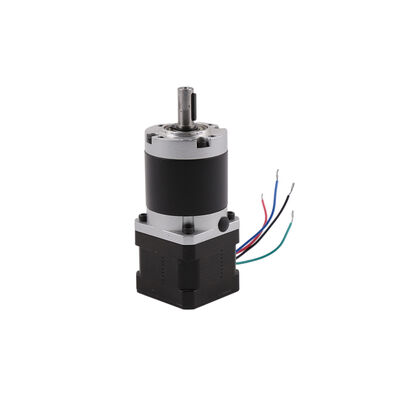

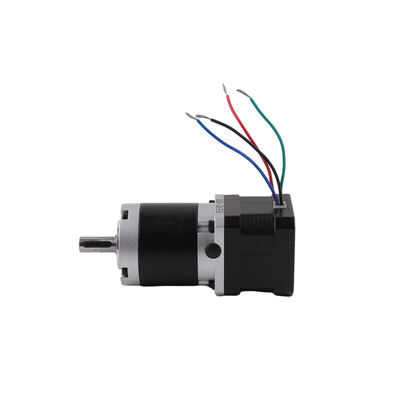

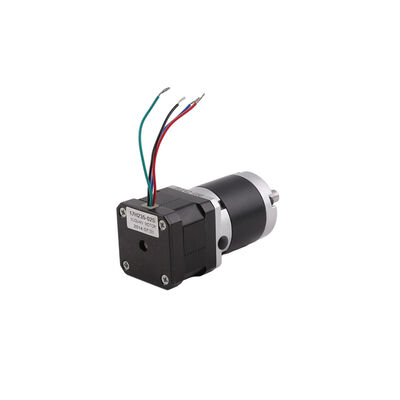

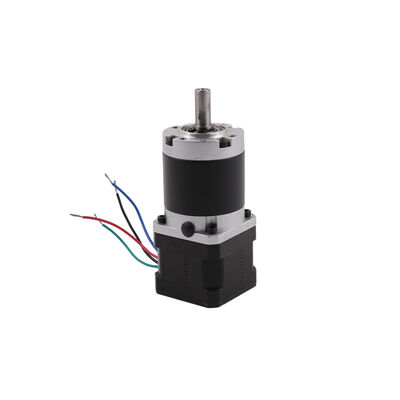

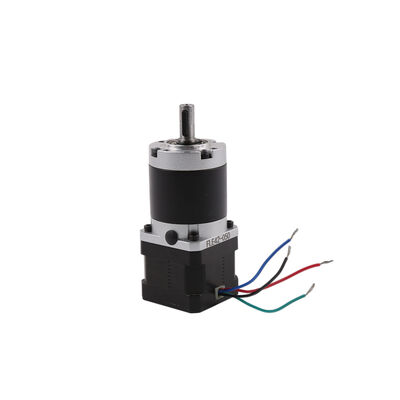

High Torque Nema 17 Gearbox Motor 42mm High Precision Geared Gear Reducer Stepper Motor for 3d Printer
Product Details
| Phase | 2 | Shaft Diameter | 8mm(0.31in) |
|---|---|---|---|
| Torque | 0.2 Nm(0in) | Type | Permanent Magnet |
| Current / Phase | 1.33A | Nema Frame Size | NEMA 17 |
| Voltage | 2.8V~12V, 2.8V~12V | Warranty | 3 Months ~ 1 Year |
| Highlight | Nema 17 stepper motor with gearbox,42mm high torque stepper motor,3D printer geared stepper motor |
||
Product Description
FAQ
High torque nema 17 42mm high precision geared gear reducer stepper motor for 3d printer
The 42mm Hybrid Stepper Motor Series is available with a high performance gear box. Our gearboxes come in a high efficiency, high accuracy planetary gear configuration. Use with a microstepping driver to reduce vibration and achieve higher step resolution. Choose a baseline version or request your own customized configuration.
This is a 42mm square hybrid stepper motor (NEMA 17) mount with a planetary gearbox.
There are several gearbox ratio for you to choose, gear ratio from 3.71 to 719.98
Base on different gear stage, gearbox will have different length and efficiency.
1 stage: 32.2 mm length, 90% efficiency
2 stages: 40.0 mm length, 80% efficiency
3 stages: 50.0 mm length, 72% efficiency
4 stages: 57.0 mm length, 63% efficiency
Please let us know the following Parameter if we are lucky to attract your interests:
1. Voltage & Frequency
2. Number of revolutions and direction of rotation
3. Type of output shaft ( Our standard shaft our your customized shaft)
4. Torque on output shaft
5. Length of lead wire if you have requirements
The necessary driving device or control device for the customer can cooperate with the customer for development.
The basic step angle of the motor is 1.8 degrees.
At the same time, we can provide the same size products with a step angle of 0.9 degrees!
The output part is linear.
Our team has more than 10 years of stepper motor design, development and production experience, so we can achieve product development and auxiliary design according to the special needs of customers!
Customer needs are our efforts, please feel free to contact us!
| MOTOR | NEMA 17 gearbox STEPPER MOR |
| PRODUCT NAME | 42BYGH34-36PG19 |
| GEAR RATIO | 1:3.7~719.98 |
| NO.OF PHASES | 2 PHASES |
| STEP ANGLE | 18°/STEP |
| COIL RESISTANCE | 2.1Ω±10% |
| PHASE INDUCTANCE | 12±20% mH |
| HOLDING TORQUE | 2.6Kg.cm |
| INSULATION CLASS | B |
| WEIGHE | 0.50KG |
| OEM & ODM SERVICE | AVAILABLE |
42mm(NEMA17) geared stepper motor with planetary gearbox
SHAFT TYPES:
Out shaft standard as follows,also can customerized due to the user drawings
welcome to contact customer service for more types
- Round Type :DIA3mm. 4mm. 5mm
- D-cut Type: DIA3-D2.5 DIA4-D3 etc
- Screw Type: M3 M4 M5 Serial
- Trape Type
- I-cut Type: DIA3-I2 DIA4-I3
- Other Type: Shaft with a hole etc
TYPE of WIRE CONNECT:
Motor input method with Pin type
, FPC, PCB, Lead wire etc. These can be customized according to customer needs.
