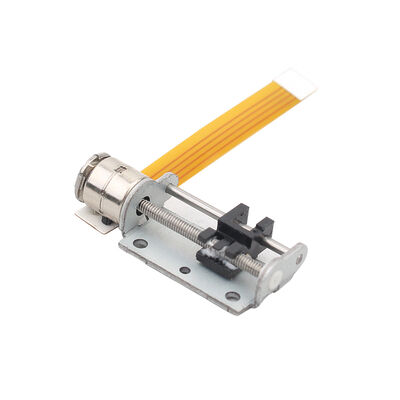

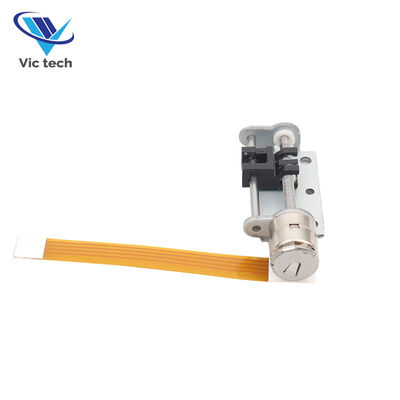

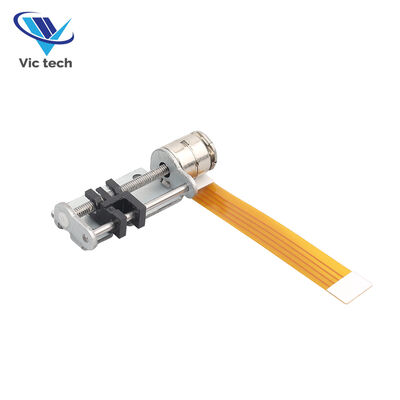

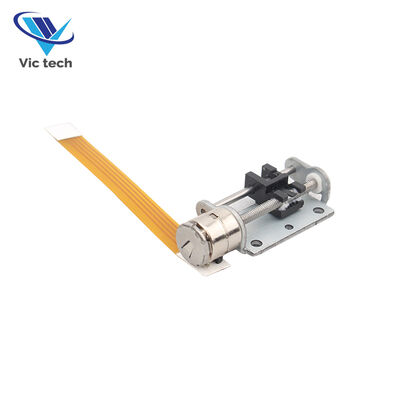

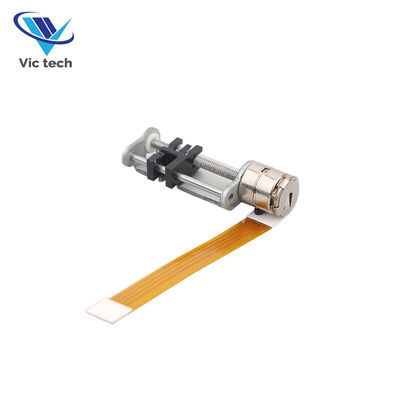

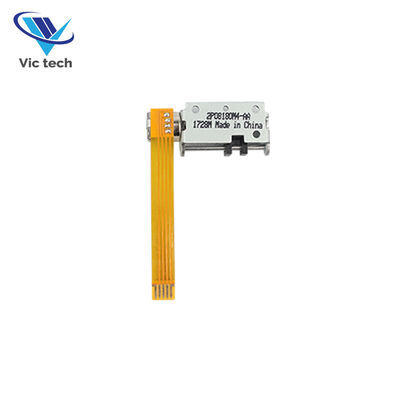

VSM0806 8mm Micro Slider Screw Stepper Motor 2 Phase Lead Screw Stepper Motor Applied to Camera Lens
Product Details
| Phase | 2, 2 | Shaft Diameter | 3.0mm |
|---|---|---|---|
| Torque | 1.5gf.cm~2.0gf.cm | Type | Permanent Magnet |
| Current / Phase | 0.3A | Nema Frame Size | No |
| Voltage | 3.3v | Warranty | 3 Months ~ 1 Year |
| Rated Voltage | 3.3V | Coil Resistance | 20Ω±10% |
| Step Angel | 18 | Size | DIA8*L33mm |
| Highlight | 8mm micro stepper motor,2 phase lead screw stepper motor,camera lens stepper motor |
||
Product Description
8mm Micro slider Linear Stepping Motor Screw motor with Bracket Stepper Motor
VSM0806 is a precision micro step motor, the output shaft with a pitch of 0.4mm of the screw, through the screw and the screw rod supporting the turn of the screw into a thrust.
Motor basic step angle is 18 degrees, the motor running 20 steps every week, so the resolution of displacement can reach 0.02mm, to achieve the purpose of precision control.
Actuator aspects using subdivision drive way to meet.
Because of its small size, high precision, easy to control and other excellent characteristics, so this micro stepper motor is widely used in the camera, optical instruments, lenses, precision medical devices, automatic door locks and other fields.
The motor input part of the FPC, but can according to the customer demand can be changed to a connecting line needle, PCB and other forms.
The mounting bracket can be changed according to the customer's request.
| PRODUCT NAME | 8MM MICROLINEAR STEPPER MOTOR |
| MODEL | VSM0806 |
| MAX. STARTING FREQUENCY | 800 PPS min. (AT 3.3 V DC) |
| MAX. SLEWING FREQUENCY | 2000 PPS min. (AT 3.3 V DC) |
| PULL IN TORQUE | 1.5 gf-cm min. (AT 500 PPS , 3.3V DC) |
| PULL OUT TORQUE | 2.0 gf-cm min. (AT 500 PPS , 3.3V DC) |
| INSULATION CLASS | CLASS E FOR COILS |
| INSULATION STRENGTH | 300 V AC FOR ONE SECOND |
| INSULATION RESISTENCE | 50 MΩ (DC 100 V) |
| OPERATING TEMPERATURE RANGE | -10 ~+60 ℃ |
| OEM & ODM SERVICE | AVAILABLE |
8mm Micro slider Linear Stepping Motor
8mm micro slider screw stepper motor 2 phase lead screw Stepper motor Applied to camera lens
Basic Drawing:
TYPE of WIRE CONNECT:
Motor input method with Pin type
, FPC, PCB, Lead wire etc. These can be customized according to customer needs.
