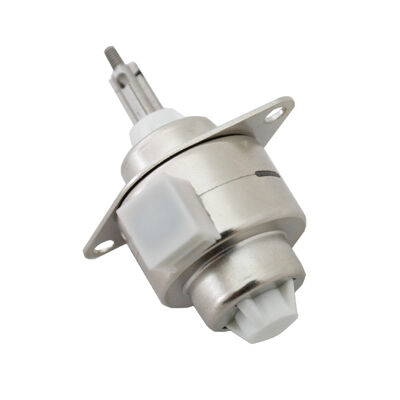

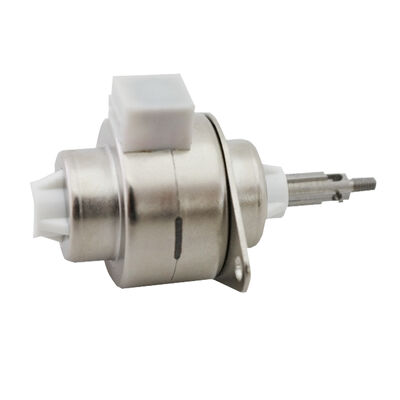

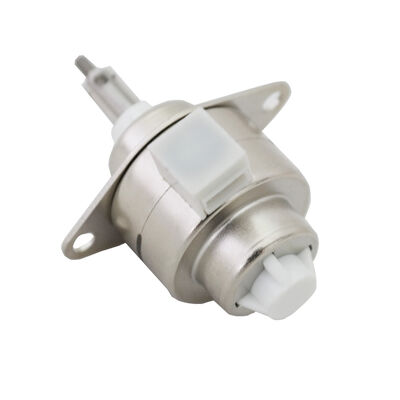

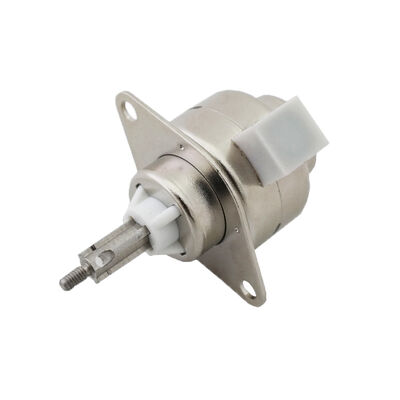

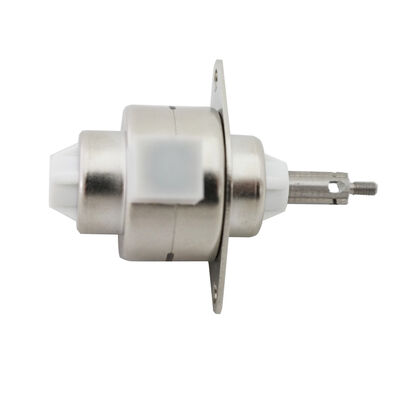

25mm PM Mini Linear Stepping Motor 12V Captive Low Voltage Linear Actuator Stepper Motor for Office Automation

25mm PM mini Linear stepping motor  12V captive low voltage linear actuator stepper motor  for office automation

SM25-020L-LINEAR SERIAL is a Stepper motor  whit a lead screw,  when rotor running CW or CCW,the lead screw will go forword or backword. at the same time ,the lead will rotating.

motor stepper step angle is 7.5 degree, lead pitch is 0.6096mm, when motor stepper rotate one step, the lead move 0.0127mm

This product is a patented product of the company. It converts the rotation of the motor into a linear motion through the relative movement of the internal rotor and the screw. It is mainly used in valve control, automatic buttons, medical equipment, textile machines, robots and other related fields.
At the same time, the external wiring part can use four terminal posts (light pins) or connecting wires, or FPC FFC PCB, etc. according to customer requirements.
The output part is linear.

Our team has more than 10 years of stepper motor design, development and production experience, so we can achieve product development and auxiliary design according to the special needs of customers!
Customer needs are our efforts, please feel free to contact us!

bipolar customized small motors

Changzhou Vic-Tech Motor Techology Ltd. is a professional  manufacturers and scientific research institution, dedicated in brushless motor development, motor application overall solutions, and motor processing and manufacturing. Our company is located in ‘City of Chinese Micro Motor’ Changzhou, Jiangsu Province. With beautiful scenery and convenient traffic, only 1 km away from expressway, 2 km away from railway station, 15 km away from airport. Changzhou is between two cosmopolises, Shanghai and Nanjing, only 100km away from both cities. Convenient logistics and timely information provide conditions for our high efficient and satisfying service. Our company has experience of researching and developing motor over sereval decades, and we have our own developing team with experienced professional engineers and electric experts. With capacity to design new products, provide ralted solutions based on customers’ specific requirements (including mechanical structure, drive control, motor parameters etc.) At the same time, we have 4 manufacturer in Shenzhen, Changzhou and Dongguan to produce stepper motors, permanent-magnet motors, micro motors, and DC motors, and all of them have passed ISO9001:2008 international quality system authentication. We have enough capability for your big orders.

1. How about the quality of products in your company?

We have high and best quality products and our products get some good feedbacks from clients over the world. Once you got our peoducts with some questions under guarantee, we will provide helps at first time. at the usual time we keep our records about products complaints as low as 1%.

2. Are you a manufacturer?

Yes, we are a manufacturer, not agent. We have own factory, which is located changzhou, CHINA. We have a leading power in producing and exporting galvanized steel pipe etc. I promise that we are what you are looking for. and Welcome you to contact us !
