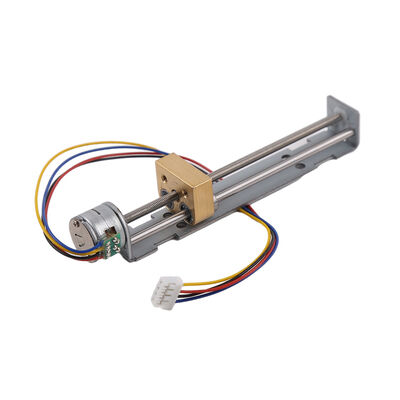

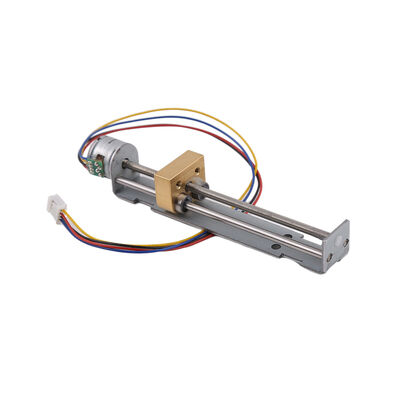

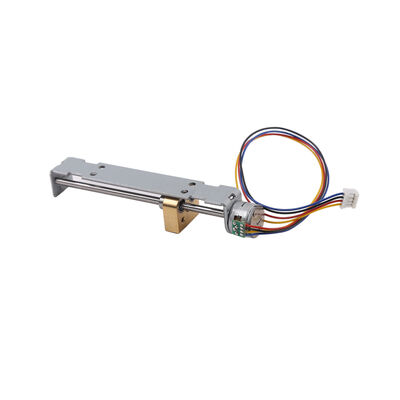

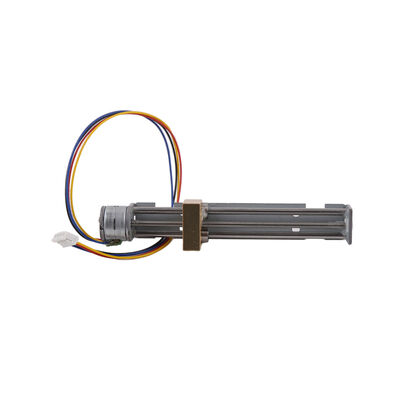

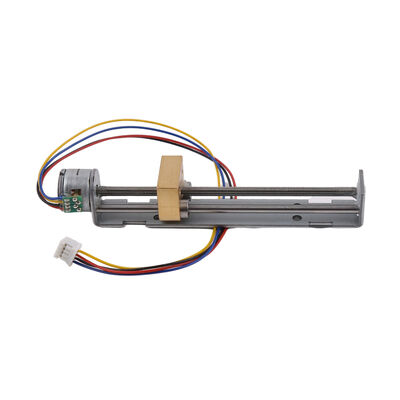

SM15-80L-T 15 mm 18 Degrees Step Angle M3 Lead Screw Linear Stepper Motor with Brass Slider

  • SM15-80L-T 15 mm 18 Degrees Step Angle M3 Lead Screw Linear Stepper Motor with Brass Slider
  • SM15-80L-T 15 mm 18 Degrees Step Angle M3 Lead Screw Linear Stepper Motor with Brass Slider
  • SM15-80L-T 15 mm 18 Degrees Step Angle M3 Lead Screw Linear Stepper Motor with Brass Slider
  • SM15-80L-T 15 mm 18 Degrees Step Angle M3 Lead Screw Linear Stepper Motor with Brass Slider
  • SM15-80L-T 15 mm 18 Degrees Step Angle M3 Lead Screw Linear Stepper Motor with Brass Slider
Place of Origin Jiangsu, China
Brand Name Vic-tech
Certification ISO, RoHS
Model Number SM15-80L-T
Minimum Order Quantity 1
Price $7-16
Product Details
Phase 2, 2 Torque 15g*cm
Type Permanent Magnet Current / Phase 400mA
Nema Frame Size 15mm(0.59in) Voltage DV 9V
Warranty 3 Months ~ 1 Year Rated Voltage 6V~9V DC
Coil Resistance 15Ω±10% Size 15mm Diameter
Lead Screw M3*P0.5
Highlight

15mm M3 lead screw stepper motor

,

18-degree step angle linear motor

,

brass slider micro stepper motor
Leave a Message
Product Description

SM15-80L-T 15 mm 18 degrees step angle M3 lead screw linear stepper motor with brass slider

Product Description



SM15-80-T is a 15mm diameter stepper motor attached with a M3 lead screw, bracket and brass slider.

Lead screw is regular M3 screw with 0.5mm pitch.



About the slider, it’s brass slider made from CNC.(We also have plastic slider option, which is cheaper, and customer can choose plastic slider if they want to save cost)

This biggest advantage of brass slider is that it has two linear bearing holding it and these two bearings provide strong support to the slider, make sure the slider moves smoothly even when load is high.

Thus brass slider have better stability, and the price is higher for a good reason.



If customers think the stroke(travel distance) is too long, we also have other stroke for options.

(Stroke/travel distance is determined by lead screw length)



Paremeters:

Model No.

SM15-80L-T

Motor type

Bipolar PM stepper motor

Rated voltage

6~9V DC

Coil resistance

15Ω/phase

Step angle

18°/step

Lead screw type

M3*P0.5

Step length(resolution)

0.025/step

Slider type

Brass slider+double linear bearings

Thrust (pushing force)

500~700 grams

Stroke

About 80mm



Design drawing:

SM15-80L-T 15 mm 18 Degrees Step Angle M3 Lead Screw Linear Stepper Motor with Brass Slider 0





Product display:

SM15-80L-T 15 mm 18 Degrees Step Angle M3 Lead Screw Linear Stepper Motor with Brass Slider 2
