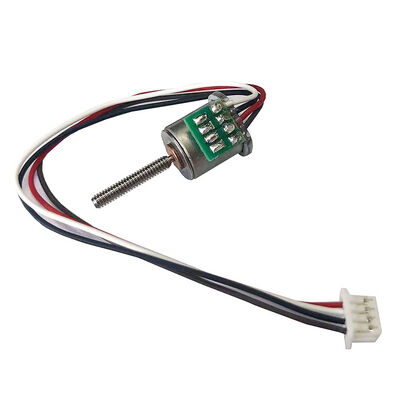

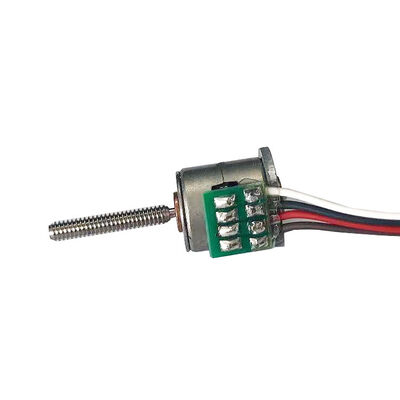

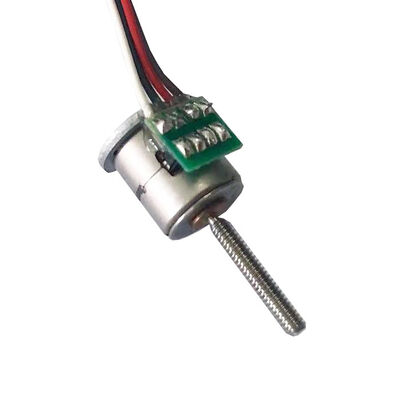

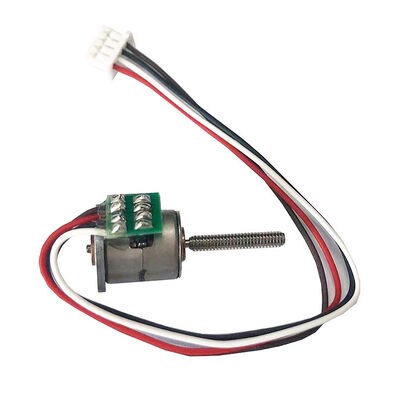

Micro 8mm Diameter 18 Degrees Step Angle Linear Stepper Motor With M2 Lead Screw
Product Details
| Phase | 2 | Torque | 5gf*cm |
|---|---|---|---|
| Type | Permanent Magnet | Current / Phase | 0.2A |
| Nema Frame Size | 10mm | Voltage | DC 3.3V, 3.3V |
| Warranty | Other | Rotation | CW/CCW |
| Resistance | 16.3Ω±7% | Motor Type | Bipolar Stepper |
| Step Angle | 18 Degrees | Lead Screw Type | M2 |
| Highlight | Micro 8mm stepper motor,Linear stepper motor M2 lead screw,18 degrees step angle motor |
||
Product Description
Micro 8mm diameter 18 degrees step angle linear stepper motor with M2 lead screw
This is a 8mm linear stepper motor with a M2 lead screw.
This is customized product.
There are two M1.4 screw holes at the bottom, for standard product it’s on top.
These screw holes can be used to fix the motor.
Lead screw is regular M2*0.4P triangle lead screw, and pitch is 0.4mm.
We can replace the lead screw into others if customers require.
The lead screw length is also customizable.
Parameters:
|
Model No. |
VSM08- |
|
Motor type |
Permanent magnet linear stepper motor |
|
Motor diameter |
8mm |
|
Step angle |
18°/step |
|
Lead screw type |
M2*0.4P |
|
Step length |
0.02mm/step |
|
Coil resistance |
16.3Ω/phase |
|
Lead screw length |
12.5mm |
SHAFT TYPES:
Out shaft standard as follows,also can customerized due to the user drawings
welcome to contact customer service for more types
- Round Type :DIA3mm. 4mm. 5mm
- D-cut Type: DIA3-D2.5 DIA4-D3 etc
- Screw Type: M3 M4 M5 Serial
- Trape Type
- I-cut Type: DIA3-I2 DIA4-I3
- Other Type: Shaft with a hole etc
TYPE of FIXTURE COVER:
The regular models are shown in the figure, and the special sizes can be customized.
TYPE of WIRE CONNECT:
Motor input method with Pin type
, FPC, PCB, Lead wire etc. These can be customized according to customer needs.
