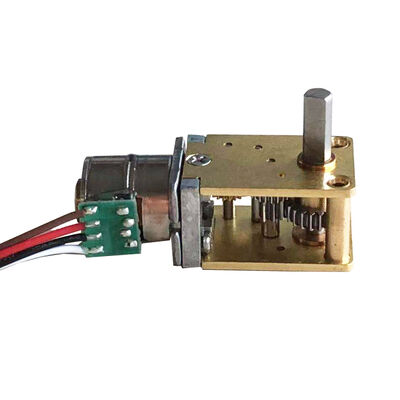

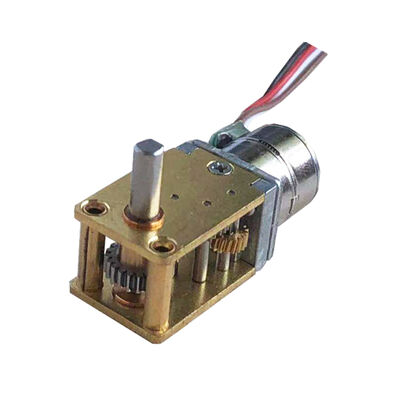

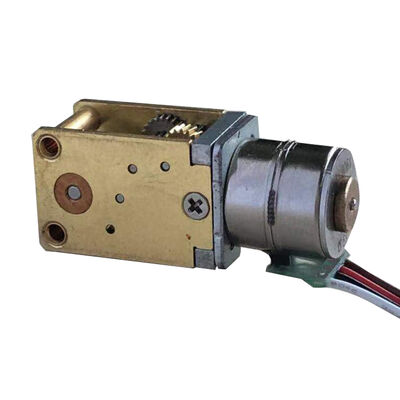

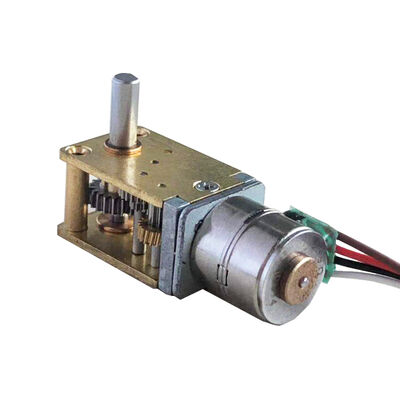

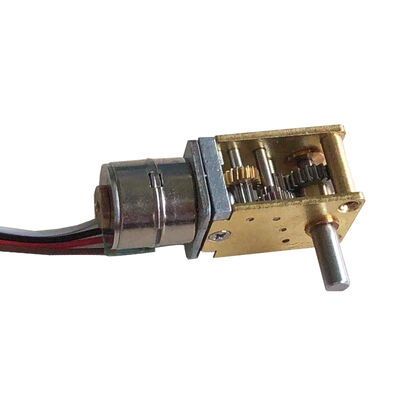

3V 5V Precious 10mm Diameter 18 Degree Step Angle Geared DC Stepper Motor With Metal Gearbox Horizontal Gear Reducer

Product  Feature:

This product is the use of diameter 10MM micro stepper motor and 10*12 *18 mm precision metal reduction gearbox combination, the reduction ratio can be customized according to customer needs.
Motor basic step angle is 18 degrees, that is, 20 steps per turn, plus the deceleration box deceleration effect, the final motor rotation angle resolution can reach 0.05~6 degrees, can be used in many requirements
Precise control of the rotating position of the field.
1:118 1:236 1:603 gear ratio and so on, the customer can according to different use torque speed requirements to match the speed ratio, at the same time,Given the proper driving frequency of the stepper motor can reach the determination of the speed and torque.
This product gear box uses the most advanced equipment in the international processing related parts, so the high precision, high efficiency, low noise, and the use of reasonable and reliable process, make the product has better reliability.
The power input part and standard stepper motor can be used as probe structure, FPC, FFC, PCB cable and other forms.
Part of the output of the motor can be used in a variety of output structure, such as the circular axis, D axis, and the wire rod!

SHAFT TYPES:

Out shaft standard as follows,also can customerized due to the user drawings

welcome to contact customer service for more types

• Round Type :DIA3mm. 4mm. 5mm
• D-cut   Type: DIA3-D2.5  DIA4-D3 etc
• Screw Type:  M3 M4 M5 Serial
• Trape  Type
• I-cut    Type:  DIA3-I2 DIA4-I3
• Other  Type:  Shaft with a hole etc

TYPE of FIXTURE COVER:

The regular models are shown in the figure, and the special sizes can be customized.

TYPE of WIRE CONNECT:

Motor input method with Pin type

, FPC, PCB, Lead wire etc. These can be customized according to customer needs.

Changzhou Vic-Tech Motor Techology Ltd. is a professional  manufacturers and scientific research institution, dedicated in brushless motor development, motor application overall solutions, and motor processing and manufacturing. Our company is located in ‘City of Chinese Micro Motor’ Changzhou, Jiangsu Province. With beautiful scenery and convenient traffic, only 1 km away from expressway, 2 km away from railway station, 15 km away from airport. Changzhou is between two cosmopolises, Shanghai and Nanjing, only 100km away from both cities. Convenient logistics and timely information provide conditions for our high efficient and satisfying service. Our company has experience of researching and developing motor over sereval decades, and we have our own developing team with experienced professional engineers and electric experts. With capacity to design new products, provide ralted solutions based on customers’ specific requirements (including mechanical structure, drive control, motor parameters etc.) At the same time, we have 4 manufacturer in Shenzhen, Changzhou and Dongguan to produce stepper motors, permanent-magnet motors, micro motors, and DC motors, and all of them have passed ISO9001:2008 international quality system authentication. We have enough capability for your big orders.
