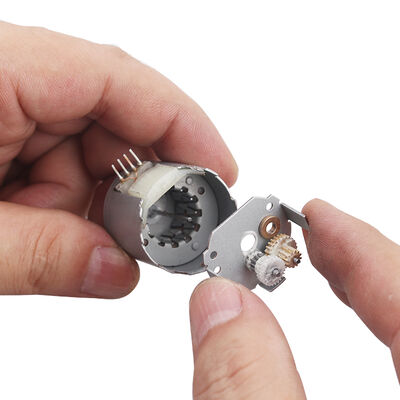

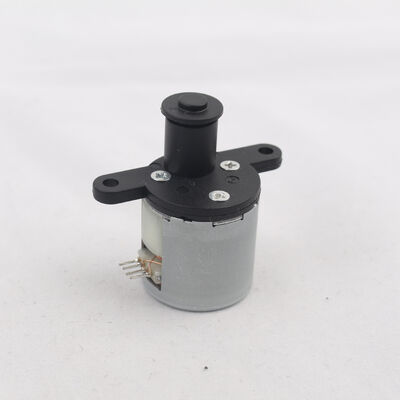

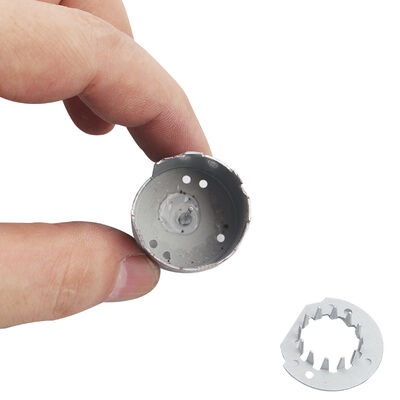

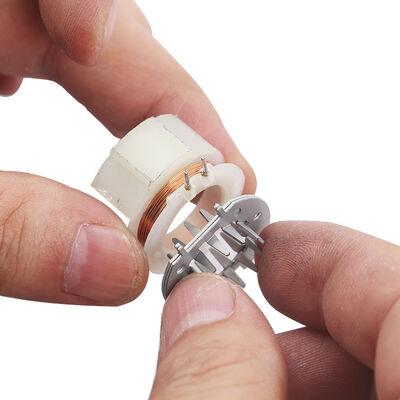

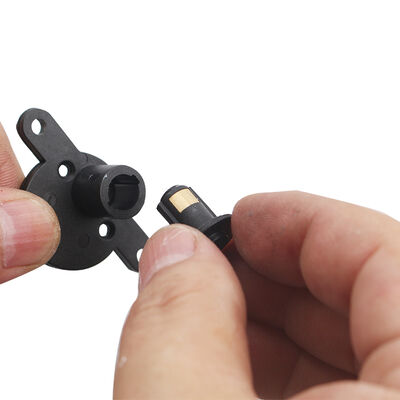

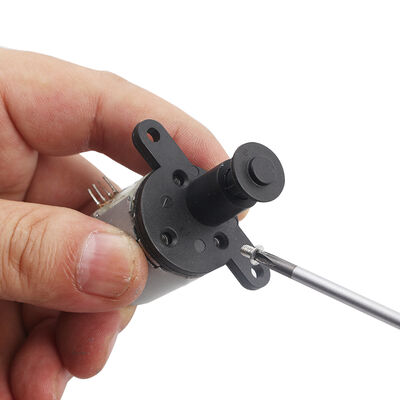

25BYJ 412L 3.3v Micro Dc Geared Stepper Motor 25PM Linear Geared Stepper Motors Valve for Precise Position Control
Product Details
| Phase | 2 | Torque | 50gf*cm |
|---|---|---|---|
| Type | Permanent Magnet | Current / Phase | 0.64A |
| Nema Frame Size | 25mm(0.98in) | Voltage | DC 3.3V, 2.2-3.4V |
| Warranty | Other | Gear Ratio | 1/10 |
| Gear Type | Spur | Weight | 40g |
| Holding Torque | 70N | Resistance | 5 Ohm |
| Appearance | Could Be Customized | ||
| Highlight | 3.3v micro stepper motor,25BYJ geared stepper motor,linear stepper motor for valves |
||
Product Description
25BYJ 412L 3.3v Micro Dc Geared Stepper Motor 25PM Linear geared stepper motors Valve For Precise Position Control
| MOTOR PARAMETER | |
| PRODUCT NAME | Small Stepper Motor Valve Control Stepper Gear Actuator |
| MODEL | 25BYJ412L-1L |
| Coil Type | BIPOLAR |
| STARTING FREQUENCY | 750 PPS min. (AT 2.6V DC) 800 PPS min. (AT 3. 0 V DC) |
| RUNNING FREQUENCY | 800 PPS min. (AT 2.6V DC) 850 PPS min. (AT 3.0 V DC) |
| DETENT TORQUE | 60g.cm |
| RESISTENCE | 5MΩ±7%/phase |
| ACTUATOR | |
| STROKE | 5MM |
| SPINDLE | 3.5MM |
| DIAMETER PITH | 1.0 |
| PUSH FORCE | MIN 70N (2.6VDC 300Hz) MIN 70N(3.2VDC 700Hz) |
| BACKLASH | MAX0.01664M(8 STEP) |
| OEM & ODM SERVICE | AVAILABLE |
Application : Highlights :
Refrigeration Industry Air Conditioner, Fan Winding possibilities - Bipolar
Electric Generator Valve Control Maintenance free - motor is brush
Other Industries & Applications Robotics Cost effective - compact design, lower integration cost
Monitoring Industry(CCTV) Camera Excellent open loop control - No encoders necessary
Sanitary Ware Automatic Toilet Bowl Digitally controlled - Easy to use with a micro processor
SHAFT TYPES:
Out shaft standard as follows,also can customerized due to the user drawings
welcome to contact customer service for more types
- Round Type :DIA3mm. 4mm. 5mm
- D-cut Type: DIA3-D2.5 DIA4-D3 etc
- Screw Type: M3 M4 M5 Serial
- Trape Type
- I-cut Type: DIA3-I2 DIA4-I3
- Other Type: Shaft with a hole etc
TYPE of FIXTURE COVER:
The regular models are shown in the figure, and the special sizes can be customized.
TYPE of WIRE CONNECT:
Motor input method with Pin type
, FPC, PCB, Lead wire etc. These can be customized according to customer needs.
