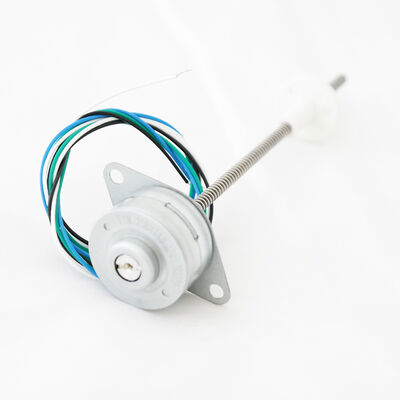

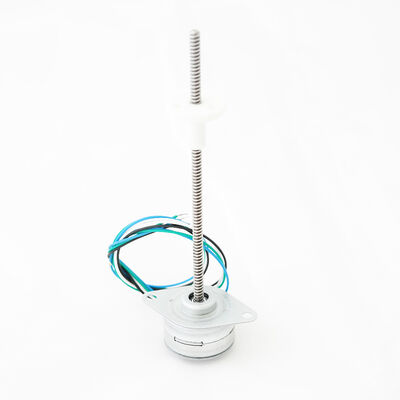

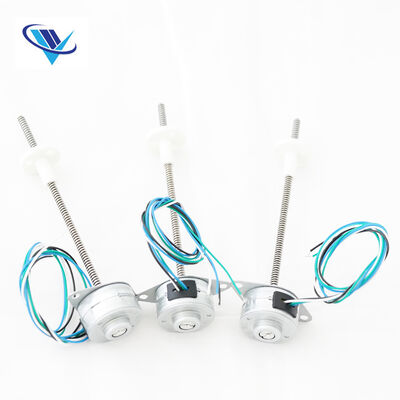

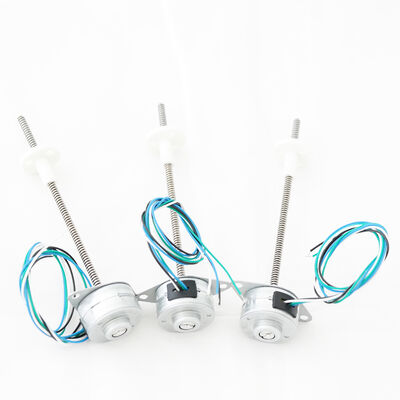

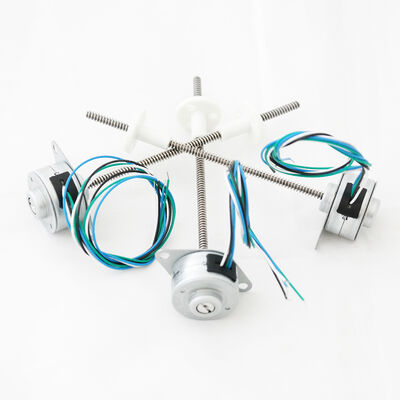

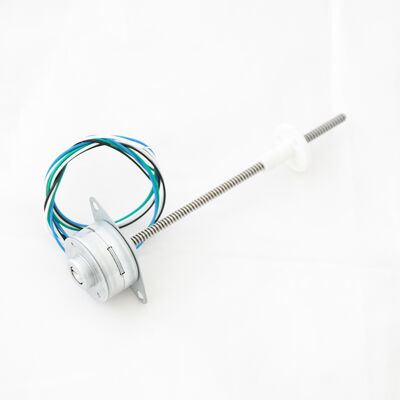

12V High Torque 25mm Small Dc Motor Micro Linear Stepper Motor 2 Phase Linear Drive Motor with Lead Screw

  • 12V High Torque 25mm Small Dc Motor Micro Linear Stepper Motor 2 Phase Linear Drive Motor with Lead Screw
  • 12V High Torque 25mm Small Dc Motor Micro Linear Stepper Motor 2 Phase Linear Drive Motor with Lead Screw
  • 12V High Torque 25mm Small Dc Motor Micro Linear Stepper Motor 2 Phase Linear Drive Motor with Lead Screw
  • 12V High Torque 25mm Small Dc Motor Micro Linear Stepper Motor 2 Phase Linear Drive Motor with Lead Screw
  • 12V High Torque 25mm Small Dc Motor Micro Linear Stepper Motor 2 Phase Linear Drive Motor with Lead Screw
  • 12V High Torque 25mm Small Dc Motor Micro Linear Stepper Motor 2 Phase Linear Drive Motor with Lead Screw
Place of Origin Jiangsu, China
Brand Name Vic-Tech
Certification Rohs
Model Number 25BYT48-12Q
Minimum Order Quantity 1
Price $12-28
Product Details
Phase 2 Torque 75gf*cm
Type Permanent Magnet Current / Phase 140 MA/phase
Nema Frame Size 25mm Voltage 12 V DC, 12v
Warranty Other Lead Pitch 3.5mm
Push Force 5N
Highlight

12V high torque micro stepper motor

,

25mm linear drive motor with lead screw

,

2 phase small DC stepper motor
Leave a Message
Product Description



 25BYT48-12Q micro linear stepper motor high torque 2 phase stepper motor with lead screw

12V High Torque 25mm Small Dc Motor Micro Linear Stepper Motor 2 Phase Linear Drive Motor with Lead Screw 0

Mechanical Dimension:MM

12V High Torque 25mm Small Dc Motor Micro Linear Stepper Motor 2 Phase Linear Drive Motor with Lead Screw 2

Typical Applications

  • Medical Equipment

  • Automatic Control

  • Precision Calibration

  • Precision Fluid Measurement

  • Precise Position Movement

Specifications

Product Name

25BYT48-12Q linear stepper motor

Model

 25BYT48-12Q
Excitation 2-2
Rated Voltage 12V
Phase 2
Step Angle 7.5 degree

Resistance

84Ω±10%
Current Per Phase 0.143A

Travel Per Step Avail



Holding Torque

150g.cm

Inductance Per Phase

48±20% (mH) At 1KHz(Ref)

After All Journey

98mm

Life

3000h MIN At 20℃ 100pps
Operating Temp Range -10℃~40℃
Storage Temp Range -30℃~80℃

Insulation Class

class E
Insulation Resistance >100MΩ MIN At DC 500V

lead wrie

UL1061 28#
Weight 42g

OEM & ODM Srvice

Available



Competitive Advantage

  • High quality and the best price.

  • Fast deliver,storage company and rich inventory

  • Near Shanghai port, the traffic is very convenient.

Product Detail Presentation

12V High Torque 25mm Small Dc Motor Micro Linear Stepper Motor 2 Phase Linear Drive Motor with Lead Screw 4
