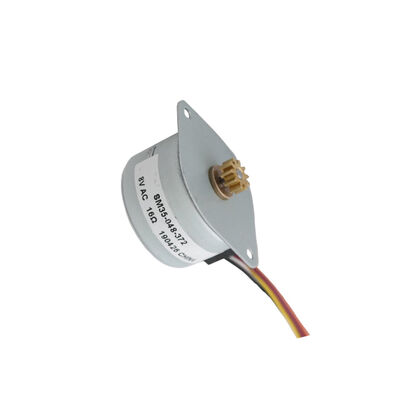

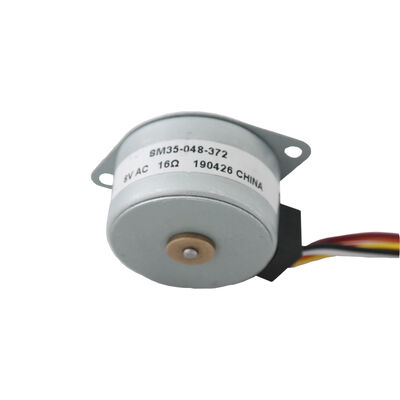

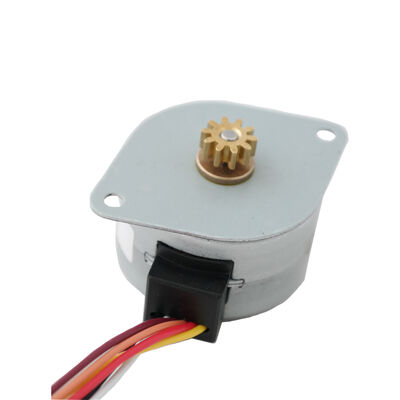

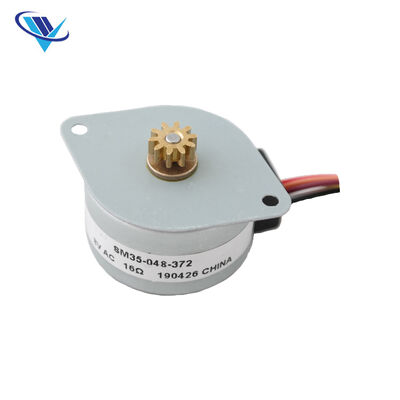

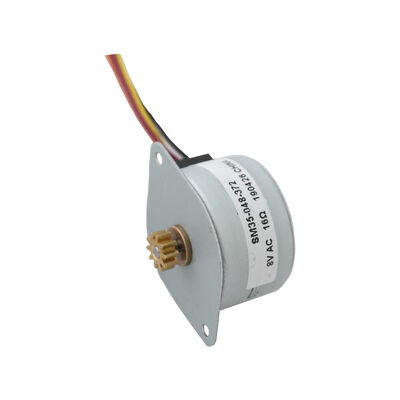

4 Phase 6 Wire Permanent Magnet Stepper Motor 7.5 Degree High Torque 35mm Micro Stepper Motor

4 phase 6 wires 7.5° pm stepper motor high torque stepper motor with gearbox

SM35-048-372 micro stepper motor awhich can be customized according to customer needs.

Suitable for printers, scanners, monitors, etc.
Motor basic step angle is 7.5 degrees, that is, 48 steps per turn, plus the deceleration box deceleration effect, the final motor rotation angle resolution can reach 0.05~6 degrees, can be used in many requirements.

Precise control of the rotating position of the field.

Given the proper driving frequency of the stepper motor can reach the determination of the speed and torque.

Mechanical Dimension:MM

Technical Features

This product gear box uses the most advanced equipment in the international processing related parts, so the high precision, high efficiency, low noise, and the use of reasonable and reliable process, make the product has better reliability.
The power input part and standard stepper motor can be used as probe structure, FPC, FFC, PCB cable and other forms.
Part of the output of the motor can be used in a variety of output structure, such as the circular axis, D axis, and the wire rod!

SHAFT TYPES:

Out shaft standard as follows,also can customerized due to the user drawings

welcome to contact customer service for more types

• Round Type :DIA3mm. 4mm. 5mm
• D-cut   Type: DIA3-D2.5  DIA4-D3 etc
• Screw Type:  M3 M4 M5 Serial
• Trape  Type
• I-cut    Type:  DIA3-I2 DIA4-I3
• Other  Type:  Shaft with a hole etc

TYPE of FIXTURE COVER:

The regular models are shown in the figure, and the special sizes can be customized.

TYPE of WIRE CONNECT:

Motor input method with Pin type

, FPC, PCB, Lead wire etc. These can be customized according to customer needs.
