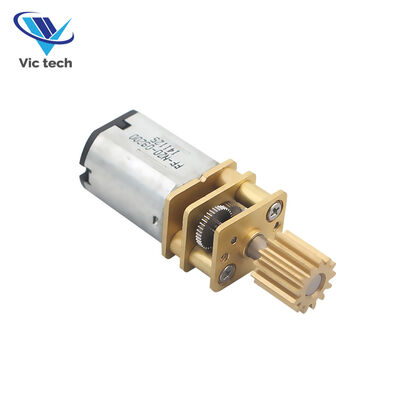

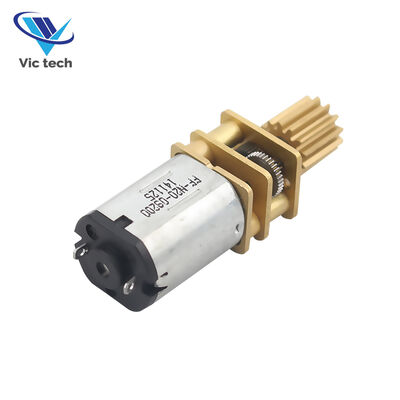

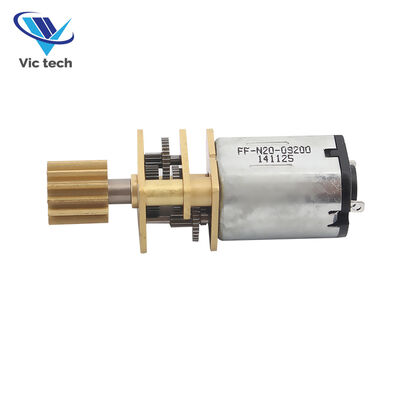

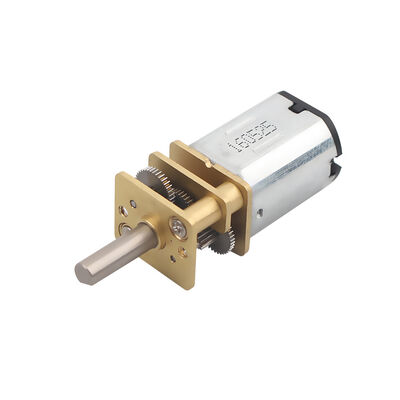

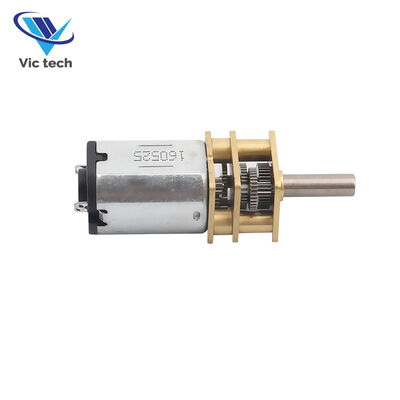

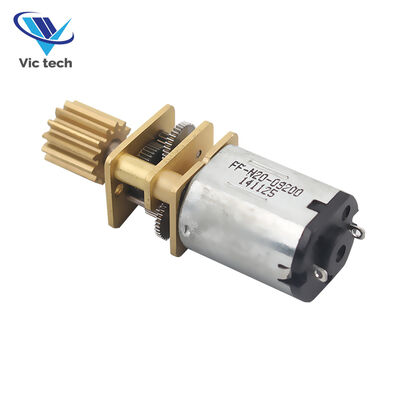

N20 12mm Brushed DC Geared Motor for Door Locks and 3D Printers
Product Details
| Continuous Current(A) | 0.05~0.5( A) | Efficiency | IE 1 |
|---|---|---|---|
| Speed(RPM) | 10000~15000( Rpm ) | Commutation | Brush |
| Construction | Permanent Magnet | Frame | No |
| Motor Mounting Type | Panel Mount | Protect Feature | Drip-proof |
| Rated Power | 2w | Speed Rpm | 100 RPM |
| Torque | 0.0005~0.002( NM ) | Type | Gear Motor |
| Usage | Door Locks And 3D Printers | Warranty | 3 Months ~ 1 Year |
| Gear Ratio | 1:50 1:150 1:298 | ||
| Highlight | 12mm brushed DC geared motor,N20 DC motor for door locks,geared motor for 3D printers |
||
Product Description
12mm N20 DC Gear Motor for 3D printer and Robot
VSM N20 is a DC gear motor made of precious metal brushed DC motor with precision metal reducer. The outer dimensions are oblate, outer diameter 12, flat 10, motor length 15mm, the length of the gearbox is
9MM, DC motor because of mature technology, low price, simple drive control and widely used in cameras, copiers, door locks, optical drives, precision instruments, cameras and other fields.
After supporting the gearbox, the torque is greatly increased, the speed is reduced, and it is easy to control!
Our gearboxes are processed and assembled by imported machine tools to ensure that the accuracy of each gear is higher than other manufacturers in the same industry, so the gearbox is stable in transmission, low in noise, high in efficiency, reliable in structure, long in life and quality.
stability.
Our team has more than 10 years of experience in micro-motor design, development and production, so we can achieve product development and auxiliary design according to the special needs of customers!
Customer needs are our efforts, please feel free to contact us!
| PRODUCT NAME | Brush dc motor |
| MODEL | VSM N20 |
| Size | DIA12- thick10(mm) |
| Gear Ratio | 5:1 10:1 30:1 63:1 100:1 150:1 210:1 298:1 |
Smart lock micro electric gear n20 motor
SHAFT TYPES:
Out shaft standard as follows,also can customerized due to the user drawings
welcome to contact customer service for more types
- Round Type :DIA3mm. 4mm. 5mm
- D-cut Type: DIA3-D2.5 DIA4-D3 etc
- Screw Type: M3 M4 M5 Serial
- Trape Type
- I-cut Type: DIA3-I2 DIA4-I3
- Other Type: Shaft with a hole etc
TYPE of FIXTURE COVER:
The regular models are shown in the figure, and the special sizes can be customized.
TYPE of WIRE CONNECT:
Motor input method with Pin type
, FPC, PCB, Lead wire etc. These can be customized according to customer needs.
SHAFT TYPES:
Out shaft standard as follows,also can customerized due to the user drawings
welcome to contact customer service for more types
- Round Type :DIA3mm. 4mm. 5mm
- D-cut Type: DIA3-D2.5 DIA4-D3 etc
- Screw Type: M3 M4 M5 Serial
- Trape Type
- I-cut Type: DIA3-I2 DIA4-I3
- Other Type: Shaft with a hole etc
