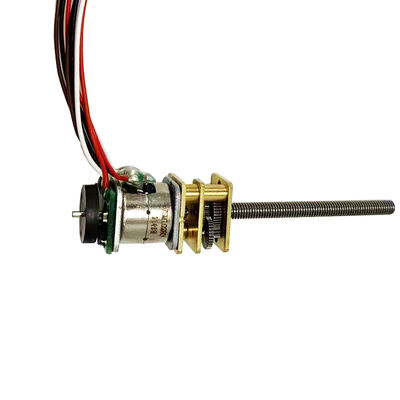

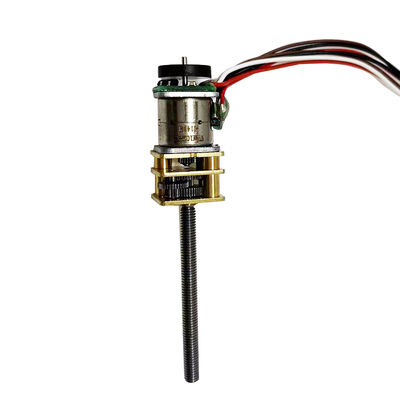

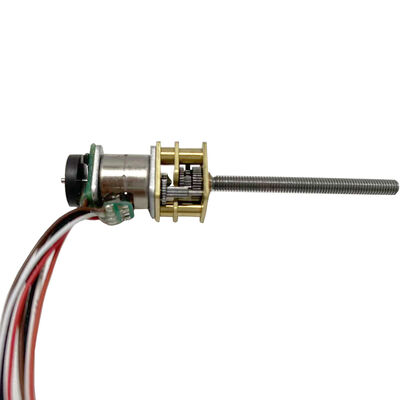

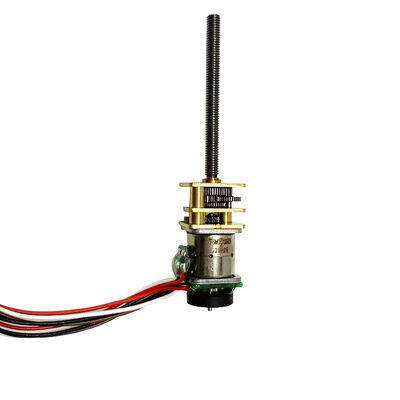

Chinese factory 10BY mini deceleration stepper motor 3V~5VDC Gear stepper motor 10mm with encoder

  • Chinese factory 10BY mini deceleration stepper motor 3V~5VDC Gear stepper motor 10mm with encoder
  • Chinese factory 10BY mini deceleration stepper motor 3V~5VDC Gear stepper motor 10mm with encoder
  • Chinese factory 10BY mini deceleration stepper motor 3V~5VDC Gear stepper motor 10mm with encoder
  • Chinese factory 10BY mini deceleration stepper motor 3V~5VDC Gear stepper motor 10mm with encoder
  • Chinese factory 10BY mini deceleration stepper motor 3V~5VDC Gear stepper motor 10mm with encoder
Place of Origin China
Brand Name VIC-TECH
Certification RoHS
Model Number SM10-50G-35M3-2CH ENCODER
Minimum Order Quantity 1Unit
Price $3.45~8/unit
Packaging Details Standard export package, or can be customized
Delivery Time 10~30 days after the sample is paid
Payment Terms MoneyGram, Western Union,Credit Card,T/T, L/C
Supply Ability 10000 PCS 45days

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Gear Motor Torque High Torque
Construction Permanent Magnet Continuous Current(a) Customized
Certification ROHS Voltage(v) 3V~5V
Output Shaft D-axis Or Screw Axis Reduction Ratio Customizable1:5~1000
Step Angle 18° Encoder 1ppr 3ppr 7ppr 12ppr
Leave a Message
Product Description

10mm micro Gear stepper motor with encoder

The motor consists of a miniature stepper motor with a diameter of 10mm and a 10 * 12 precision metal gearbox. The motor is equipped with an encoder that can accurately feedback the position to meet customer requirements. The encoder signal can also be customized according to customer needs, such as single channel/dual channel and signal
Traditional gear ratios include 1:5, 1:10, 1:20, 1:30, 1:50, 1:63, 1:89, 1:100, 1:120, 1:150, 1:210, 1:250, 1:298, 1:380, 1:420, 1:500, 1:600, 1:1000. Customers can match speed ratios according to different torque and speed requirements, and provide appropriate driving frequencies. Stepper motors can achieve the goal of determining speed and torque.
If you are unable to accurately determine the required output speed, you can send us the approximate required speed and load weight, and we can recommend similar gear ratios for testing
The motor is usually connected with wires, but can also be customized with FPC and bare pins

Mechanical Dimension:MM

Chinese factory 10BY mini deceleration stepper motor 3V~5VDC Gear stepper motor 10mm with encoder 0

Technical Features



This product gear box uses the most advanced equipment in the international processing related parts, so the high precision, high efficiency, low noise, and the use of reasonable and reliable process, make the product has better reliability.
The power input part and standard stepper motor can be used as probe structure, FPC, FFC, PCB cable and other forms.
Part of the output of the motor can be used in a variety of output structure, such as the circular axis, D axis, and the wire rod!

Typical Applications

  • Saliva Analyzer
  • Blood Analyzer
  • Welding Machine
  • Intelligent Security Products
  • Fiber Fusion Splicer
  • Digital Electronics

Specifications

PRODUCT NAME 10mm geared stepper motor
MODEL SM10-50G-35M3-2CH ENCODER
RESISTENCE 40 Ω±7%
OPERATING TEMPERATURE RANGE -0~+55 ℃
OEM & ODM SERVICE

AVAILABLE



Product Detail Presentation

Chinese factory 10BY mini deceleration stepper motor 3V~5VDC Gear stepper motor 10mm with encoder 1
