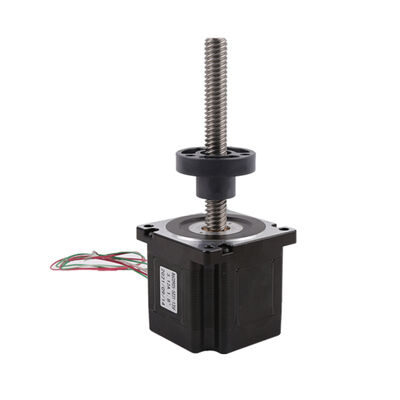

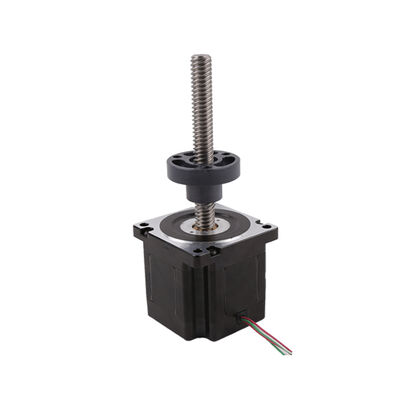

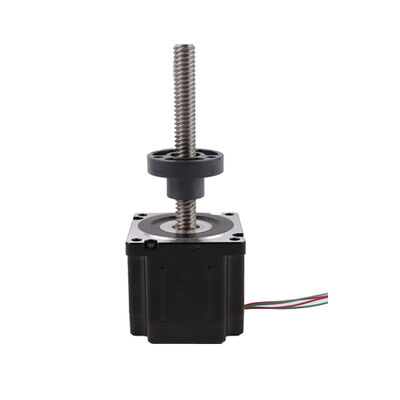

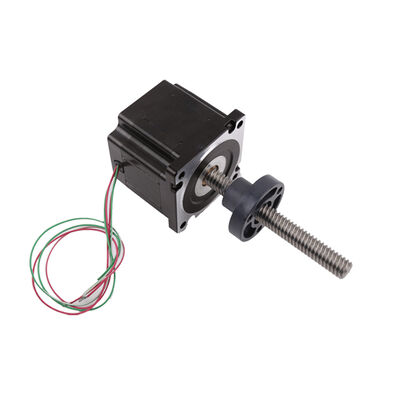

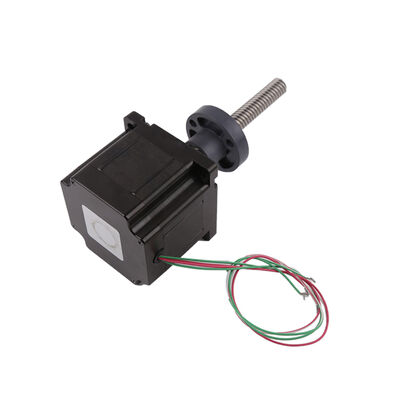

High torque 86mm hybrid NEMA34 stepper motor 4.5N.cm bipolar linear stepper motor with nut
| Place of Origin | Jiangsu, China (Mainland) |
|---|---|
| Brand Name | VIC-TECH |
| Certification | RoHS |
| Model Number | 86C0905-5031-135F |
| Minimum Order Quantity | 1 Unit |
| Price | $124.00 - $145.00 / Units |
| Packaging Details | Standard export package, or can be customized |
| Delivery Time | 15-30 work days |
| Payment Terms | T/T, Western Union, MoneyGram |
| Supply Ability | 100000Units per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Step Angle(degrees) | 1.8° | Minimal Thrust | 50KG/300pps |
|---|---|---|---|
| Phase | 2 | Type | Hybrid |
| Current / Phase | 3.12A | Voltage | 5V |
Product Description
NEMA34 stepper motor with straight T-shaped screw and nut motor
This motor has a diameter of 86mm and a T-shaped screw with a nut, making it a very classic and powerful high-precision linear motion solution. It perfectly combines the advantages of stepper motors and the mechanical structure of screw rods, and is widely used in scenarios that require precise position control and reliable holding force
The hybrid stepper motor has a natural magnetic resistance holding torque when powered off, and with the mechanical self-locking of the screw (especially the trapezoidal screw), it can firmly maintain its position in the absence of power, saving energy and improving safety.
Customers can choose the thickness of the motor according to their needs to meet installation requirements
Mechanical Dimension:MM
Technical Features
Our stepper motor series are: 20mm, 28mm, 35mm, 39mm, 42mm, 57mm, 60mm, 86mm, 110mm, 130mm. Two-phase, three-phase and four-phase hybrid stepping motor. The DC brushless motor range includes 42BLS, 57BL(S), 86BLS, and matching DC brushless drivers.
Therefore, the products are in line with ROHS requirements. Applications include robotics, industrial electronic automation equipment, medical equipment, advertising equipment, printing equipment, textile machinery and so on. Has been exported to the United States, Germany, Italy, Spain, the United Kingdom, Mexico, Brazil and other more than 20 countries.
Typical Applications
- This combination is very suitable for scenarios that require medium to large loads, medium to low speeds, and precise point control:
3D printer (large/industrial grade): controls the precise movement of the print head or platform.
CNC machine tool: Drive the feed of the tool holder and worktable on the X/Y/Z axes.
Automated assembly equipment: used for precision part handling, alignment, and pressing.
Laser cutting/engraving machine: Control the scanning path of the laser head.
Medical equipment: such as sample injection pumps, scanner mobile platforms.
Laboratory instruments: positioning of the stage for spectrometers and microscopes.
Packaging machinery: fixed length cutting, packaging position control.
|
序号 No. |
项目 ITEM |
规格 SPEC. |
备注 REMARKS |
| 1 | 额定电压 Voltage |
5VDC |
|
| 2 |
驱动电压 Source Voltage |
24 VDC |
表示供电电源施加在驱动回路上的电压.在恒压驱动方式下,它和额定电压相同. Indicates the voltage that the power supplier applys to the driver circuit. It is same as the rated voltage when motor is drived on a constant voltage model. |
| 3 | 相数 Phase | 2 Phase | |
| 4 |
额定电流 Rated Current |
3.5 A /Phase |
微步驱动时的峰值 Peak value when microstep |
| 5 |
励磁模式 Exciting mode |
Bipolar | |
| 6 | 步距角Step angle | 1.8 deg | ±7％ |
| 7 | 转向Rotation | CW/CCW |
The above products are only representative models, we can customize the products according to customer requirements. Includes the length and diameter of the shaft.Our company can also provide OEM services.
