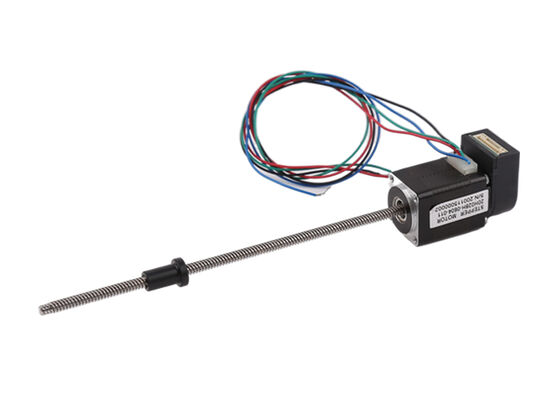

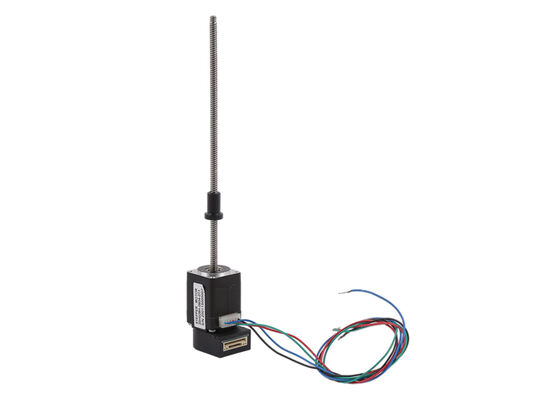

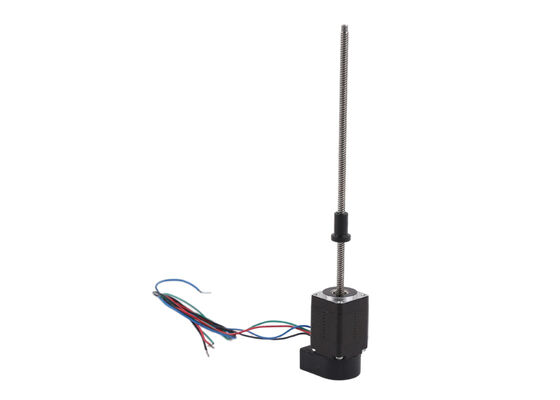

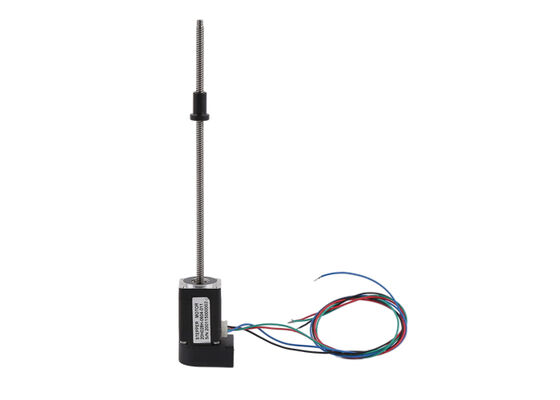

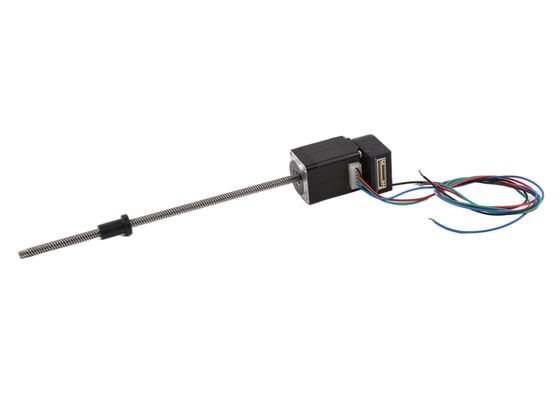

NEMA 8 2-phase 4-step bipolar hybrid stepper motor with a 1.8° step angle and a 20mm diameter.
| Place of Origin | China |
|---|---|
| Brand Name | VIC-TECH |
| Certification | RoHS, ISO9001 |
| Model Number | NEMA 8 |
| Minimum Order Quantity | 1Unit |
| Price | $55~$80/Unit |
| Packaging Details | Standard export package in corrugated carton (Mass production). |
| Delivery Time | 15-30 work days |
| Payment Terms | Western Union, T/T, L/C, MoneyGram |
| Supply Ability | 100000 Units/year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Resistance | 3.7Ω±15% | Phase | 2 Phases, 4 Steps |
|---|---|---|---|
| Type | Hybrid Linear Stepper Motor | Step Angle | 1.8 Degree |
| Encoder Type | Optical Encoder | Encoder Resolution | 500/1000/2000 PPR |
| Highlight | NEMA 8 stepper motor 1.8° step angle,2-phase hybrid stepper motor 20mm diameter,linear stepper motor with bipolar drive |
||
Product Description
VSM25C-48S External Drive Long Leadscrew Permanent Magnet Linear Stepper Motor, 25mm Diameter
This is a NEMA 8 bipolar hybrid stepper motor with high resolution and equipped with a 500/1000/2000 PPR photoelectric encoder.
A hybrid stepper motor with a diameter of 20.2mm.
This motor is a standard NEMA 8 hybrid motor and is interchangeable with other hybrid motors.
The lead screw of this motor is a Tr3.5*4mm pitch trapezoidal lead screw.
The encoder is a high-resolution photoelectric encoder, available in 500, 1000, and 2000 PPR specifications.
PPR refers to pulses per revolution.
For example, using a 1000 PPR encoder, the encoder will generate 1000 pulse signals for one revolution of the motor, providing very high accuracy.
This motor is ideal for high-precision control and closed-loop systems.
Typical applications:
* Medical Equipment
* Linear Robotic Control
* Precision Calibration
* High Precision Valve
* Other Precise Position Movement
Plus tt has extra low noise and high stability.
Design Layout (Unit:mm)
Parameter sheet:
| Product model | 20BYGH29 |
| Motor type | Bipolar hybrid stepper motor |
| Motor diameter | (NEMA8) 20.2mm |
| Coil resistance | 3.7 Ohm±15% |
| Step angle | 1.8 degrees |
| Lead screw type |
3.5mm diameter*4mm pitch Trapezoidal leas screw |
| Encoder type | Optical encoder |
| Resolution | 500PPR, 1000PPR, 2000 PPR |
