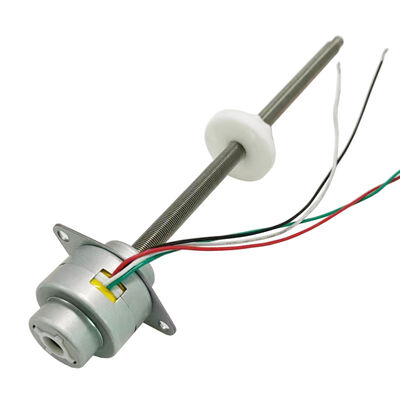

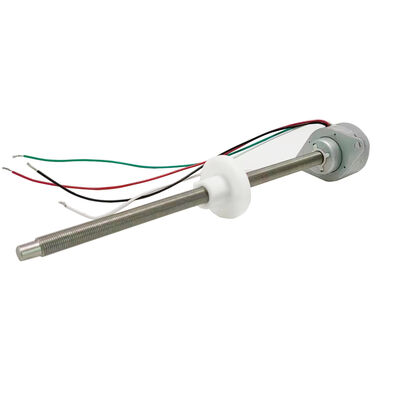

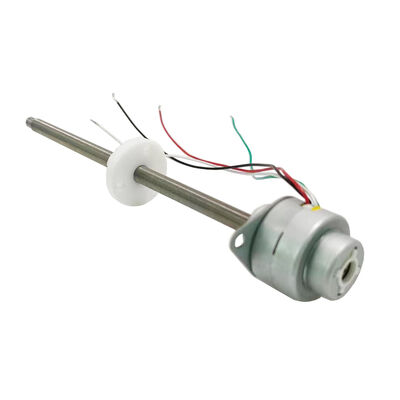

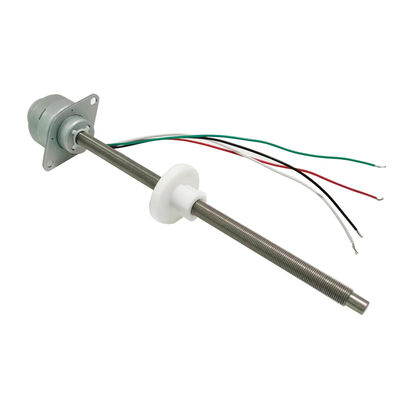

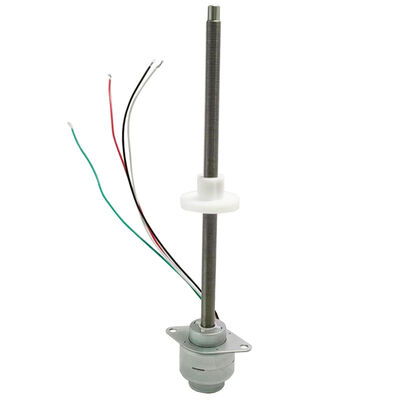

VSM25C-48S External Drive Long Lead Screw Permanent Magnet Linear Stepper Motor 25mm Diameter
| Place of Origin | China |
|---|---|
| Brand Name | VIC-TECH |
| Certification | RoHS, ISO9001 |
| Model Number | VSM25C-48S-0127-145-01 |
| Minimum Order Quantity | 1Unit |
| Price | $11~$31/Unit |
| Packaging Details | Standard export package in corrugated carton (Mass production). |
| Delivery Time | 15-30 work days |
| Payment Terms | Western Union, T/T, L/C, MoneyGram |
| Supply Ability | 100000 Units/year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Motor Type | Permanent Magnet Linear Stepper Motor | Motor Diameter | 25 Mm |
|---|---|---|---|
| Step Angle | 7.5° | Phase Current | 160 MA |
| Phase Number | 2 Phases (Bipolar) | Coil Resistance | 70Ω/phase |
| Highlight | long lead screw linear stepper motor,permanent magnet linear stepper motor,25mm diameter linear stepper motor |
||
Product Description
VSM25C-48S 25mm Diameter External Drive Long Leadscrew Permanent Magnet Linear Stepper Motor
This is a 25mm diameter linear stepper motor equipped with an extra-long 145mm leadscrew. The leadscrew length is adjustable.
Since the leadscrew lead determines the motor's linear speed and thrust, a longer lead results in a higher linear speed but lower linear thrust/force.
We offer two different step angles: 7.5°/step and 15°/step.
Higher rated voltage results in higher motor coil resistance, which depends on the customer's power supply and driver parameters.
Customers can select all parameters according to their needs.
Typical applications:
* Medical Equipment
* Linear Robotic Control
* Precision Calibration
* High Precision Valve
* Other Precise Position Movement
Plus tt has extra low noise and high stability.
Design Layout (Unit:mm)
Parameter sheet:
| Motor type | Linear stepper motor |
| Motor diameter | 25mm |
| Rated voltage | 12V DC |
| Phase current | 160mA |
| Phase resistance | 70Ω/phase |
| Phase inductance | 65 mH/phase |
| Step angle | 7.5° |
| Screw lead | 0.6096mm (customizable) |
| Step length | 0.0127mm/step |
| Leads crew length | 145 mm (customizable) |
| Phase No. | 2 phases |
| Driving method | 2-2 excitation |
Competitive Advantage
-
High quality and the best price.
-
Fast deliver,storage company and rich inventory
-
Near Shanghai port, the traffic is very convenient.
