Fixed-axis 20mm diameter linear stepper motor with selectable step angles of 7.5° and 15°

  • Fixed-axis 20mm diameter linear stepper motor with selectable step angles of 7.5° and 15°
  • Fixed-axis 20mm diameter linear stepper motor with selectable step angles of 7.5° and 15°
  • Fixed-axis 20mm diameter linear stepper motor with selectable step angles of 7.5° and 15°
  • Fixed-axis 20mm diameter linear stepper motor with selectable step angles of 7.5° and 15°
  • Fixed-axis 20mm diameter linear stepper motor with selectable step angles of 7.5° and 15°
  • Fixed-axis 20mm diameter linear stepper motor with selectable step angles of 7.5° and 15°
Place of Origin China
Brand Name VIC-TECH
Certification RoHS
Model Number VSM20-
Minimum Order Quantity 1Unit
Price $6.5~$30/Unit
Packaging Details Standard export package, or can be customized
Delivery Time 15-30 work days
Payment Terms Western Union, T/T, L/C, MoneyGram
Supply Ability 1000000 Units/year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Phase Inductance 13.5Ω Or 74.5Ω No. Of Phases 2 Phases
Phase Current 160mA Or 370mA Linear Force 1500g ~ 4000g
Step Angle 7.5° Or 15° Rated Voltage 5V Or 12V
Stroke 14mm,18mm, 25mm,32mm
Highlight

20mm linear stepper motor

,

fixed-axis stepper motor with selectable step angles

,

linear stepper motor 7.5° 15° step angles
Leave a Message
Product Description

Fixed-axis 20mm diameter linear stepper motor, with step angles of 7.5° and 15° available.



5V linear stepper motor, fixed-axis diameter 36mm, travel 16mm.

This is a permanent magnet linear stepper motor. It converts rotational motion into linear motion through the relative movement of the internal rotor and lead screw. As the rotor rotates continuously, the lead screw moves forward or backward. This series of motors is available in three structures: fixed-axis, through-axis, and externally driven.

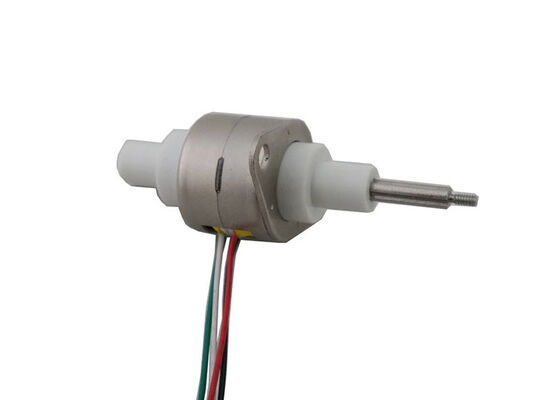

The image shows a fixed-axis linear stepper motor.

External wiring can be customized according to customer requirements.

Mainly used in valve control, textile machinery, automatic buttons, robotics, medical equipment robots, and related fields.

If you need this motor, please feel free to contact us!



Fixed-axis 20mm diameter linear stepper motor with selectable step angles of 7.5° and 15° 0



Mechanical Dimension:MM

Fixed-axis 20mm diameter linear stepper motor with selectable step angles of 7.5° and 15° 1











Technical Features


This product is a patented product of the company. It converts the rotation of the motor into a linear motion through the relative
movement of the internal rotor and the screw. It is mainly used in valve control, automatic buttons, medical equipment, textile
machines, robots and other related fields.
At the same time, the external wiring part can use four terminal posts (light pins) or connecting wires, or FPC FFC PCB, etc.
according to customer requirements.
The output part is linear.

Typical Applications

  • Medical Equipment

  • Automatic Control

  • 3D Printer

  • Precision Calibration

  • Precision Fluid Measurement

  • Precise Position Movement

Specifications

Motor diameter

20mm

Rated voltage

5V ,12V DC

No. of phases

2

Phase Current

160mA,370mA

Phase Inductance

13.5Ω,70Ω

Step angle

7.5°,15°
Stear Travel 0.0127mm,0.0254mm,0.0508mm,0.1016

Stroke

14mm,18mm,25mm,32mm



Competitive Advantage

  • High quality and the best price.

  • Fast deliver,storage company and rich inventory

  • Near Shanghai port, the traffic is very convenient.

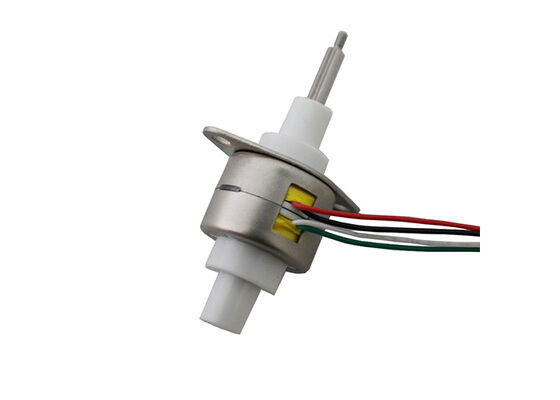

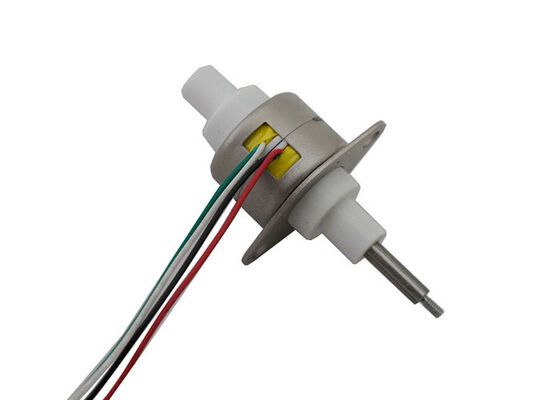

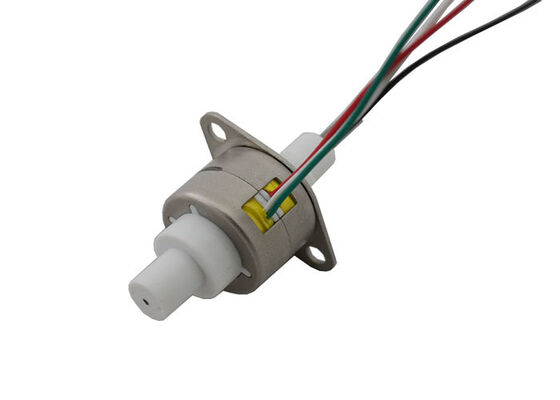

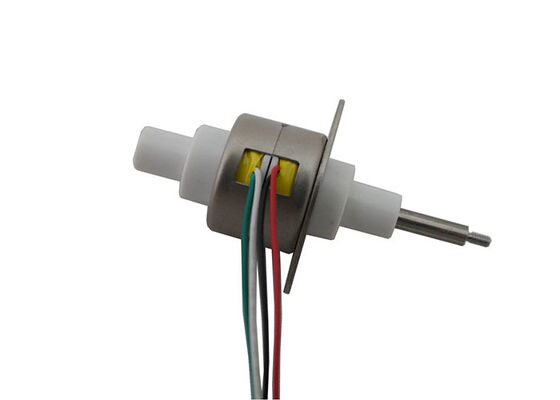

Product Detail Presentation


 Fixed-axis 20mm diameter linear stepper motor with selectable step angles of 7.5° and 15° 2



Fixed-axis 20mm diameter linear stepper motor with selectable step angles of 7.5° and 15° 3



Fixed-axis 20mm diameter linear stepper motor with selectable step angles of 7.5° and 15° 4
