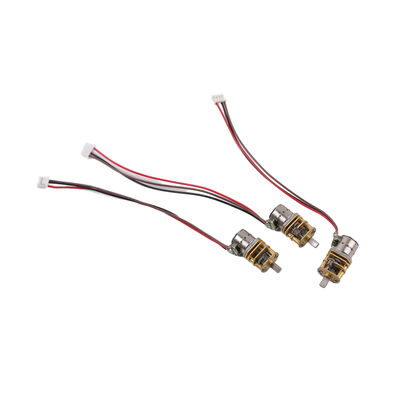

8mm diameter gearbox stepper motor 2-phase 4-wire mini gear motor application precision equipment

  • 8mm diameter gearbox stepper motor 2-phase 4-wire mini gear motor application precision equipment
  • 8mm diameter gearbox stepper motor 2-phase 4-wire mini gear motor application precision equipment
  • 8mm diameter gearbox stepper motor 2-phase 4-wire mini gear motor application precision equipment
  • 8mm diameter gearbox stepper motor 2-phase 4-wire mini gear motor application precision equipment
  • 8mm diameter gearbox stepper motor 2-phase 4-wire mini gear motor application precision equipment
  • 8mm diameter gearbox stepper motor 2-phase 4-wire mini gear motor application precision equipment
Place of Origin China
Brand Name VIC-TECH
Certification RoHS
Model Number SM08-016-250G-3D
Minimum Order Quantity 1 Unit
Price $3.2-$7/unit
Packaging Details Selling Units: Single item plastic box inner , outer paper box Package: single carton packing, 100 - 1000 pieces per box. Lead Time : 30 Days After Deposit
Delivery Time 15-30 work days
Payment Terms MoneyGram, T/T, Western Union, T/T
Supply Ability 1000000units/year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Step Angle 18 ° Voltage 3.3 V
Resistance 40 Ω ± 10% Type Permanent Magnet
Current 80 MA Phase 2-2
Highlight

8mm stepper motor 2-phase 4-wire

,

mini gear motor precision equipment

,

micro stepper motor with gearbox
Leave a Message
Product Description

 3.3v micro stepper motor with gearbox

This compact 8mm diameter micro stepper motor integrates a high-precision metal planetary reducer, engineered for applications where space, reliability, and customized performance are critical.

Key Features & Advantages:

  • Ultra-Compact Design: The 8mm diameter form factor provides a significant advantage for space-constrained installations and miniaturized devices.

  • Fully Customizable Output: Both the gear reduction ratio and the output shaft configuration can be tailored to meet specific customer application and mounting requirements.

  • High-Performance Gearing: Features a precision-machined metal planetary gearbox, ensuring:

    • High Transmission Efficiency

    • Low Operating Noise

    • Long Life & High Reliability

  • Precision Manufacturing: All components are processed on advanced precision equipment and assembled using reliable, proven processes for consistent quality.

Standard Reduction Ratio Options:
A wide range of standard ratios is available for selection and testing: 1:5, 1:10, 1:30, 1:50, 1:60, 1:100, 1:200, 1:250.
Custom ratios can be developed based on customer needs.

Mechanical Dimension:MM

8mm diameter gearbox stepper motor 2-phase 4-wire mini gear motor application precision equipment 0







Typical Applications:
Ideal for precision motion control in:

  • Medical devices and diagnostic equipment

  • Miniature robotics and actuators

  • Optical instruments and lens control

  • Surveillance and pan-tilt mechanisms

  • Advanced office automation equipment

  • Any compact device requiring precise, reliable stepping motion.

Specifications



Product Name 8mm permanent magnet stepper motor
Model SM08-016-250G-3D
Rated Voltage  3.3 V
Coil Resistance 40 Ω ± 10%
No. Of phase 2 Phases
Step Angle 18 degree
Hold Torque  5gf.cm
Insulation Class Class E for Coils
Insulation Strength 100 V AC for One Second
Operating Temperature Range -20~+70 ℃
Weight 9 g (Ref.)
OEM & ODM SERVICE AVAILABLE




Competitive Advantage

  • High quality and the best price.
  • Fast deliver,storage company and rich inventory

  • Near Shanghai port, the traffic is very convenient.

Type of Wire Connect

Motor input method with Pin type, FPC, PCB, Lead wire etc.

These can be customized according to customer needs.

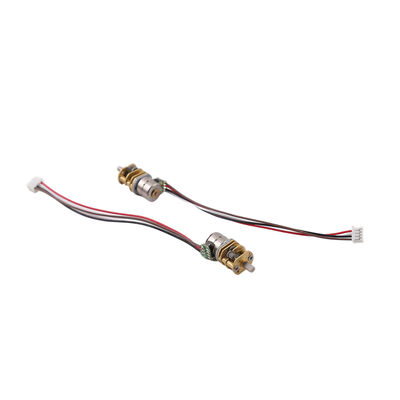

8mm diameter gearbox stepper motor 2-phase 4-wire mini gear motor application precision equipment 1

Product Detail Presentation

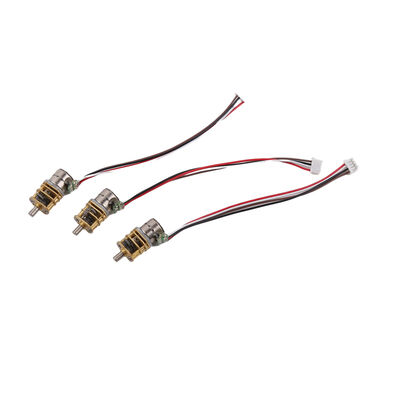

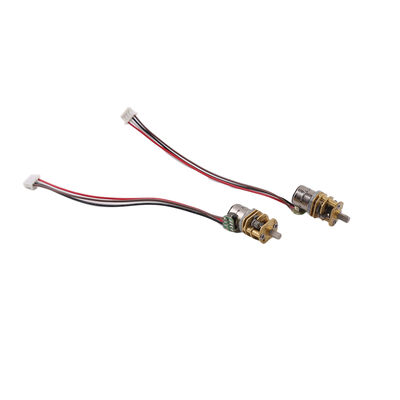

8mm diameter gearbox stepper motor 2-phase 4-wire mini gear motor application precision equipment 2
