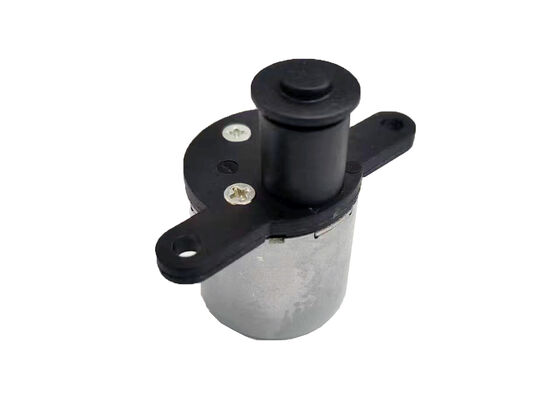

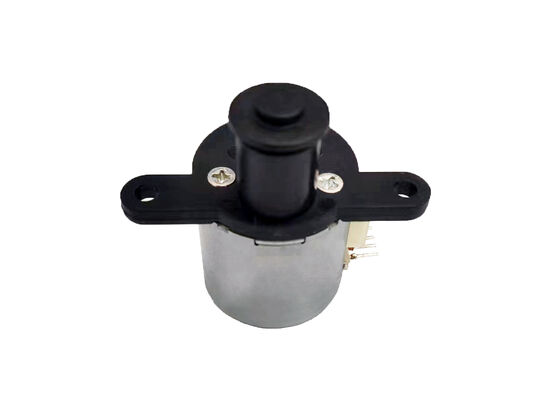

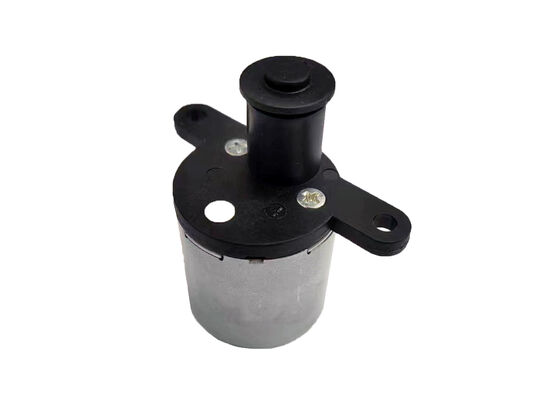

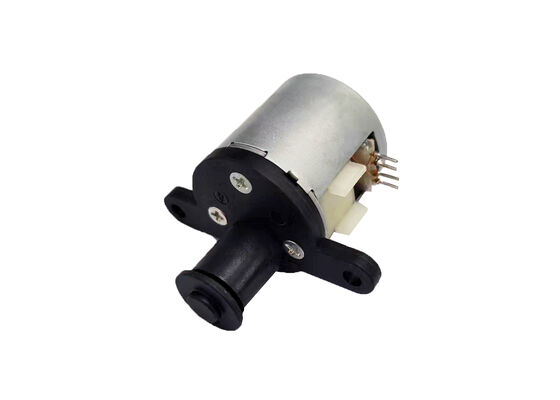

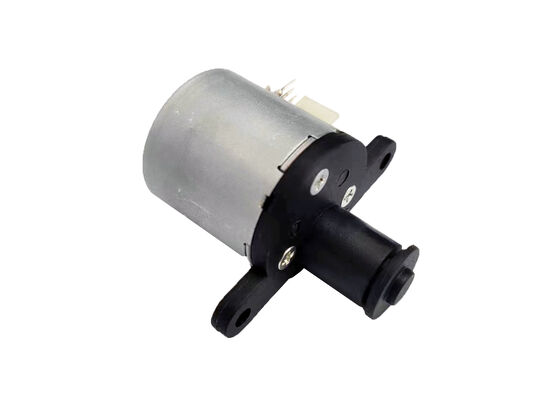

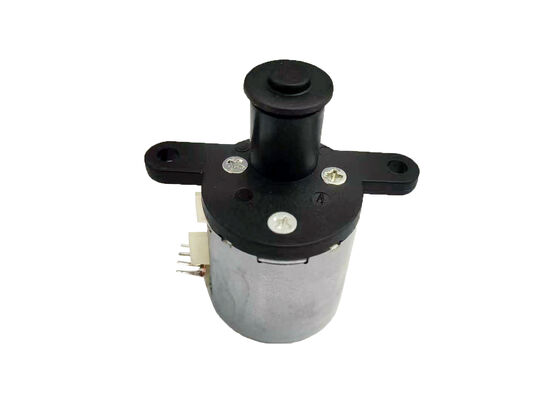

3.3VDC 25mm High Torque Linear Stepper Motor with 2-2 Phase Drive and 7.5° Step Angle
| Place of Origin | China |
|---|---|
| Brand Name | VIC-TECH |
| Certification | RoHS |
| Model Number | 25BYJ412-7L |
| Minimum Order Quantity | 1Unit |
| Price | $5~7/unit |
| Packaging Details | Standard export package, or can be customized |
| Delivery Time | 15-30 work days |
| Payment Terms | MoneyGram,Western Union,Credit Card,T/T,L/C |
| Supply Ability | 10000Units/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Coil Type | Bipolar | Torque | High Torque |
|---|---|---|---|
| Construction | Permanent Magnet | Drive Method | 2-2 Phase |
| Step Angle | 7.5° | Drive Voltage(v) | 2.2~3.4V |
| Resistance | 5Ω±7%/phase | Approval | ROHS |
| Highlight | 3.3VDC Linear Stepper Motor,2-2 Phase Geared Stepper Motor,7.5° Step Angle 25mm Stepper Motor |
||
Product Description
3.3VDC 25mm Diameter High-Torque Linear Stepper Motor
Ideal for intelligent valves, this compact motor delivers high precision and strength performance.
The stepper motor features a built-in reduction gearbox with 1:10 reduction ratio for enhanced torque. Its output ejector with stop-stop structure enables linear slider movement without rotation, delivering over 10kg of thrust.
Customization options include various wiring types (Pin, FPC, PCB, Lead wire) and lengths, adjustable installation plate shapes, and air outlet angles to meet specific requirements.
The motor cap includes two mounting holes (37mm spacing, 31mm version available) and comes with a 1.25mm pitch connector (Molex 51021-0400).
Mechanical Dimension (MM)
Typical Applications
- Saliva Analyzer
- Blood Analyzer
- Welding Machine
- Intelligent Security Products
- Fiber Fusion Splicer
- Digital Electronics
Specifications
| Product Name | 25 mm geared stepper motor |
|---|---|
| Model No | 25BYJ412-7L |
| Resistance | 5Ω±7%/phase |
| Starting frequency | 750 pps (2.6V DC), 800pps (3.0VDC) |
| Running Frequency | 800 pps (3.0V DC) |
| Drive method | 2-2 phase |
| Storage temperature | -20 to +50 ℃ |
| OEM & ODM SERVICE | AVAILABLE |
Application Highlights
| Refrigeration Industry | Air Conditioner, Fan Winding possibilities - Bipolar |
|---|---|
| Electric Generator | Valve Control - Maintenance free (brushless motor) |
| Other Industries | Robotics - Cost effective compact design with lower integration cost |
| Monitoring Industry | CCTV Camera - Excellent open loop control (no encoders needed) |
| Sanitary Ware | Automatic Toilet Bowl - Digitally controlled for easy microprocessor integration |
Type of Wire Connection
Motor input options include Pin type, FPC, PCB, Lead wire, all customizable to customer requirements.
Type of Fixture Cover
Standard models shown below, with special sizes available for customization.
Product Detail Presentation
Frequently Asked Questions
1. Are you a manufacturer or a trader?
We are a manufacturer. We produce motors ourselves.
2. Where is your factory? Can we visit your factory?
Our factory is located in Changzhou city. Feel free to visit us if you want.
3. Do you provide customized samples/free samples?
We offer customized samples with additional customization costs. Free samples are not available.
4. What's the lead time on samples?
- Stock samples: 3 days
- Non-stock samples: 15 days
- Customized samples: 25-30 days
- Non-stock samples: 15 days
- Customized samples: 25-30 days
5. What customization service do you provide?
Our 20+ years experienced team customizes all motor components including:
- Slider, lead screw, and gearbox designs
- Cable length and connector types
- FPC design and other specifications
- Slider, lead screw, and gearbox designs
- Cable length and connector types
- FPC design and other specifications
6. Can we sign an NDA contract for new product development?
Yes, we can sign NDA contracts to protect your confidentiality. Contact us to discuss new project development.
