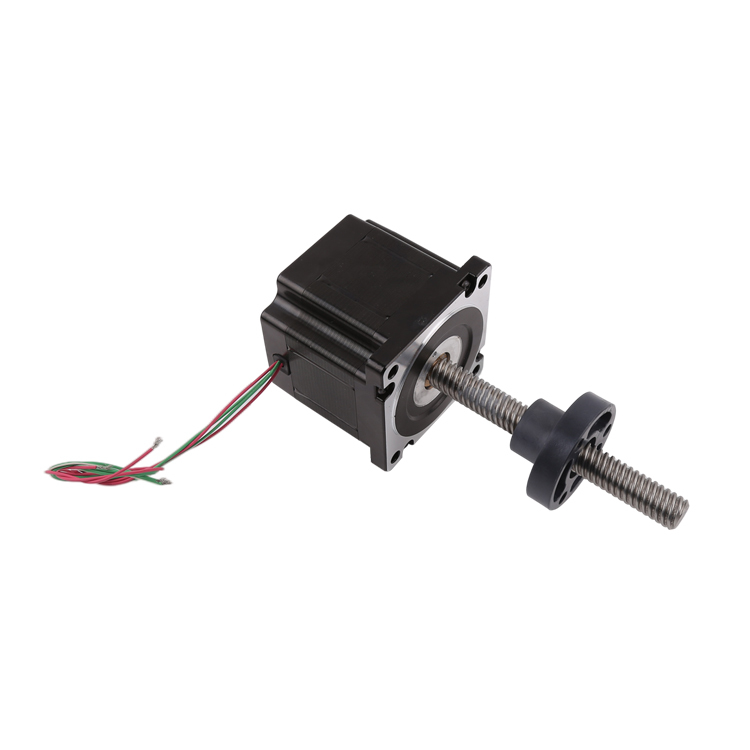

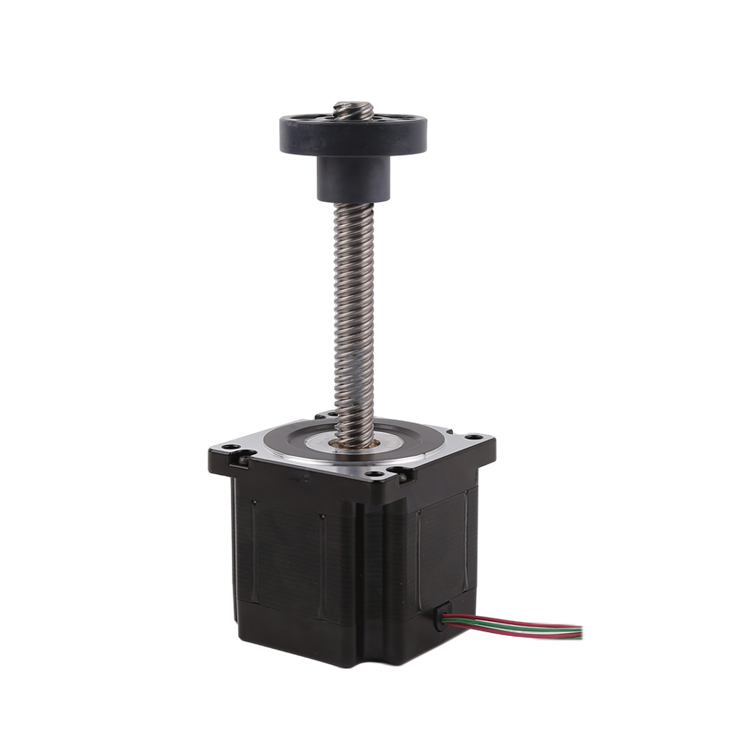

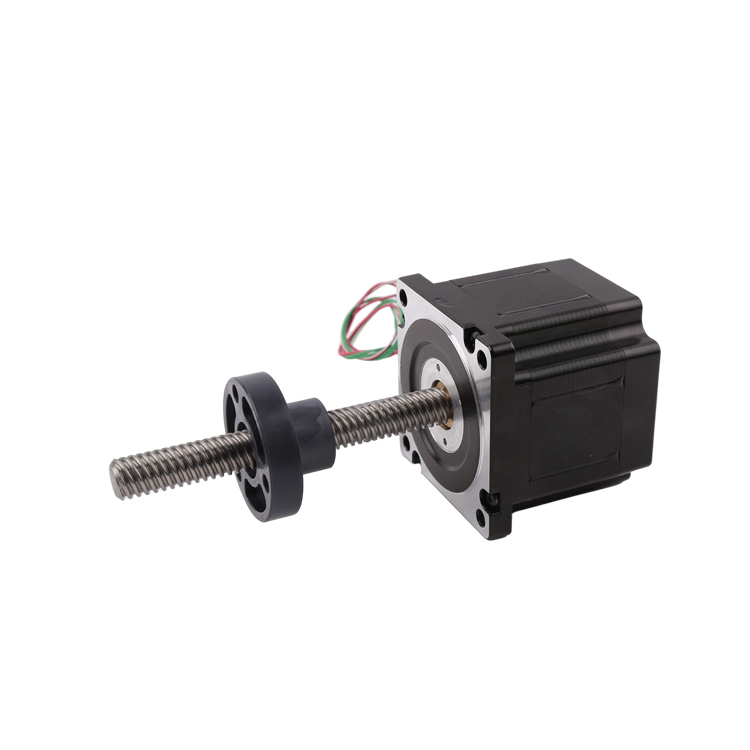

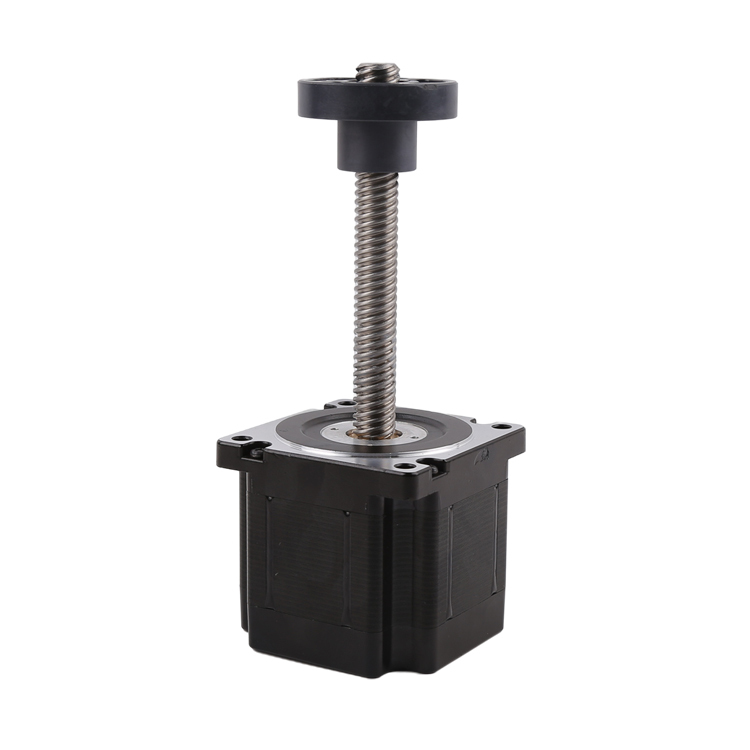

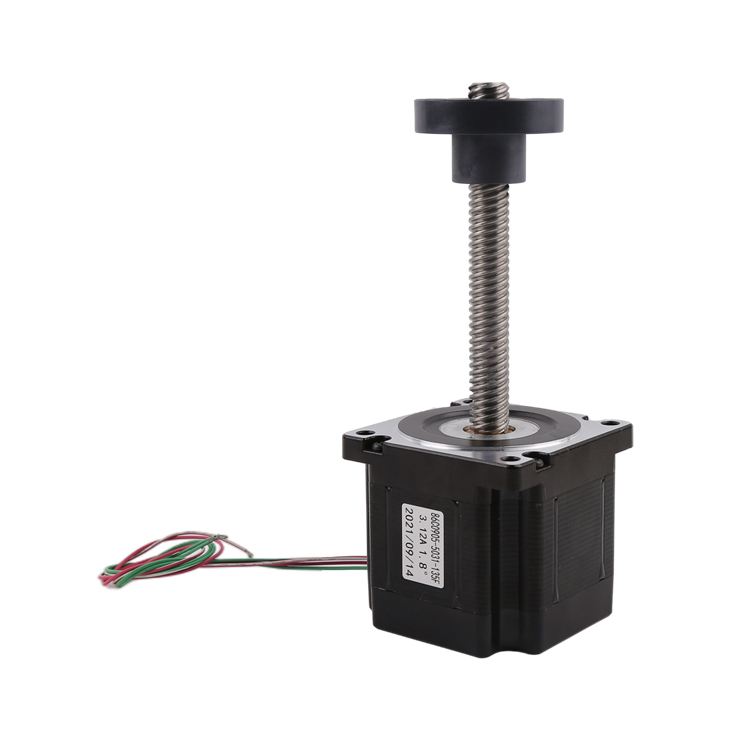

NEMA34 1.8 Degree Stepper Angle 86mm Hybrid Stepper Motor With Screw

  • NEMA34 1.8 Degree Stepper Angle 86mm Hybrid Stepper Motor With Screw
  • NEMA34 1.8 Degree Stepper Angle 86mm Hybrid Stepper Motor With Screw
  • NEMA34 1.8 Degree Stepper Angle 86mm Hybrid Stepper Motor With Screw
  • NEMA34 1.8 Degree Stepper Angle 86mm Hybrid Stepper Motor With Screw
  • NEMA34 1.8 Degree Stepper Angle 86mm Hybrid Stepper Motor With Screw
Place of Origin China
Brand Name Vic-Tech motor
Certification RoHS
Model Number HS86C0905
Minimum Order Quantity 1 pc
Price $120~$155/Unit
Packaging Details The product is packed with pearl cotton, and the outside is in a carton. Most bulk products use pallets for easy transportation and product protection
Delivery Time 3~15 days
Payment Terms T/T, D/P
Supply Ability 100000/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Motor Type Hybrid Stepper Motor Motor Size 86mm (NEMA34)
Step Angle 1.8° Minimal Thru 50KG
Lead Screw Type Trapezoidal Screw Phase Resistance 1.6Ω/phase
Highlight

NEMA34 hybrid stepper motor with screw

,

86mm stepper motor 1.8 degree angle

,

hybrid stepper motor with screw
Leave a Message
Product Description

NEMA34 1.8 Degree Stepper Angle 86mm Hybrid Stepper Motor With Screw



Description:



This is an 86mm hybrid stepper motor with trapezoidal screw.

Its step angle is 1.8 °/step, and it takes 200 steps to rotate 1 turn.

Its lead screw is 12.7mm, which means that when the motor rotates one revolution, the nut moves 12.7mm.

Therefore, step length=lead/200 steps=0.0635/step, which means that when the motor completes a full step, the guide screw nut will undergo a linear motion of 0.0635mm.

The nut is made of self-lubricating plastic material (PPS) and can withstand both high thrust and small friction.





Motor parameters:

Model No. SM86C0905
Motor size 86mm
Phase No. 2 phases (bipolar)
Phase current 3.12A/phase
Phase resistance 1.6Ω/phase
Phase Inductance 8.8mH±20%
Minimal thrust (at 300 PPS) 50KG



Lead screw parameter:

Lead screw type Trapezoidal screw
Lead screw Model No. Tr15.875*12.7-4
Outer diameter 15..875mm
Lead 12.7mm
Starts 4
Pitch 3.175mm
Step length 0.0635mm/step



Design drawing:



NEMA34 1.8 Degree Stepper Angle 86mm Hybrid Stepper Motor With Screw 0



Product display:

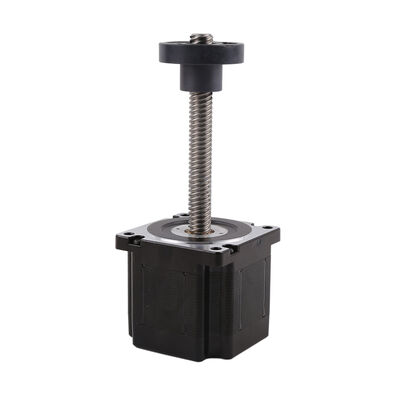

NEMA34 1.8 Degree Stepper Angle 86mm Hybrid Stepper Motor With Screw 1



Application of stepper motor:
Stepper motors are used for precision control and are widely used in medical equipment, 3D printers, industrial precision control, automation equipment, etc.
Stepper motors can be used in any mechanism that requires precise control and rotational/linear motion.


Advantages of stepper motors:
Stepper motors can be precisely controlled and brushless even without a closed-loop encoder/feedback system. Therefore, there are no electromagnetic interference and spark problems. In some cases, they can replace DC brush/brushless motors.
The stepper motor is easy to be controlled by the driver and has established its important position in the field of precision control.
1. Precise control and programmable
2. No electromagnetic interference and sparks
3. Small size
4. Reasonable price
5. Low noise
6. Long service life

Tags:

hybrid linear stepper motor

small dc electric motors

2 phase bipolar stepper motor
