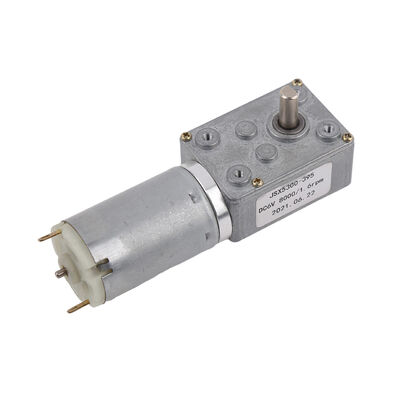

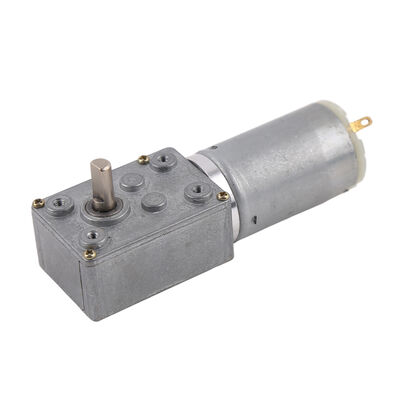

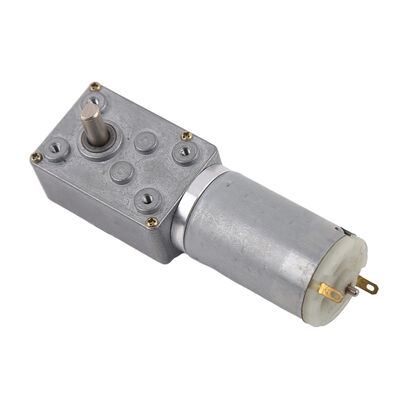

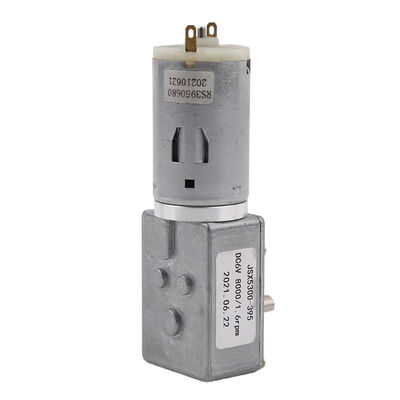

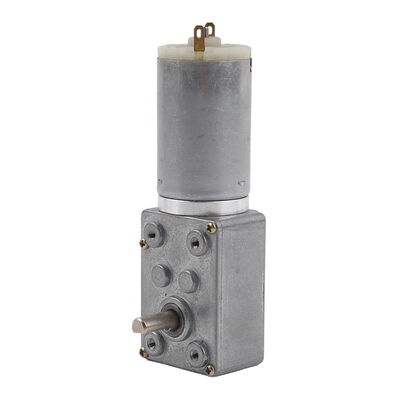

90 Degrees Double Shaft Worm Gear Motor 24V Cylinder DC Motor Motor diameter 31mm

  • 90 Degrees Double Shaft Worm Gear Motor 24V Cylinder DC Motor Motor diameter 31mm
  • 90 Degrees Double Shaft Worm Gear Motor 24V Cylinder DC Motor Motor diameter 31mm
  • 90 Degrees Double Shaft Worm Gear Motor 24V Cylinder DC Motor Motor diameter 31mm
  • 90 Degrees Double Shaft Worm Gear Motor 24V Cylinder DC Motor Motor diameter 31mm
  • 90 Degrees Double Shaft Worm Gear Motor 24V Cylinder DC Motor Motor diameter 31mm
  • 90 Degrees Double Shaft Worm Gear Motor 24V Cylinder DC Motor Motor diameter 31mm
Place of Origin China
Brand Name V-motor
Certification RoHS
Model Number JSX5300
Minimum Order Quantity 1 pc
Price $10~$25/Unit
Packaging Details The product is packed with pearl cotton, and the outside is in a carton. Most bulk products use pallets for easy transportation and product protection
Delivery Time 3~15 days
Payment Terms T/T, D/P
Supply Ability 100000/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Motor Type DC Motor Gearbox Type Worm Gearbox
Motor Diameter 31mm Output Shaft 8 Mm Diameter D Shaft
Gear Ratio From 49:1 To 624:1 Rated Voltage 24V
Highlight

24V double shaft worm gear motor

,

31mm cylinder DC motor

,

small DC gear motor with warranty
Leave a Message
Product Description

90 degrees output shaft worm gearbox with cylinder DC brushed motor



Description:

This is JSX5300 series gearbox motor , it’s a DC brushed motor attached with a worm gearbox.

The output shaft is 8mm diameter D shaft, shaft length is customizable.

Also the gearbox can be changed to double shaft design.

We have multiple gear ratio for you too choose.



Feel free to contact us if you are interested.



Parameters:

Motor type DC brush motor + worm gear box
Rated voltage 24V DC
Gear ratio 49:1 / 74:1 / 101:1 / 218:1 / 505:1 / 634:1
Motor diameter 31mm
Unloaded current 100~300 mA
Rated current 1100~1400 mA
Unloaded speed(single motor) 5000~8000 RPM



Design drawing:

90 Degrees Double Shaft Worm Gear Motor 24V Cylinder DC Motor Motor diameter 31mm 0



Product display:

90 Degrees Double Shaft Worm Gear Motor 24V Cylinder DC Motor Motor diameter 31mm 1



About DC brushed motors:

DC brushed motors are most commonly used motors on the market.

It has electrical brush inside, and it has positive and negative pins (+ and -)

DC motor’s speed can be controlled with different gear ratios, or PWM control. (Pulse-Width Modulation)

With gearbox torque boost, DC motor can reach much higher torque, compared to motor’s original torque.


Advantage of DC brush motors:

1. Cheap price

2. Small size

3. Easy to connect, easy to use

4. Commonly used

5. Fast speed

6. High efficiency (compared to stepper motor)



DC motor with gearbox:

Gearbox can boost motor’s torque, and reduce motor’s speed

We have different gear ratios for you to choose, also gearbox’s efficiency is related to gear levels.

Output torque=original torque*gear ratio* gearbox efficiency

Output speed= original speed/gear ratio



Packaging and Shipping information:

Samples are packed with foam sponge inside paper box.

For mass production, products are packed in paper carton.

For sea shipping (Mass production), cartons are packed on pallet.



Shipping time:

By express(DHL/ UPS/ Fedex/ TNT): 5~12 days

By 4PX express: 10~20 days

Sea shipping: 40~60 days (depends on different countries)
