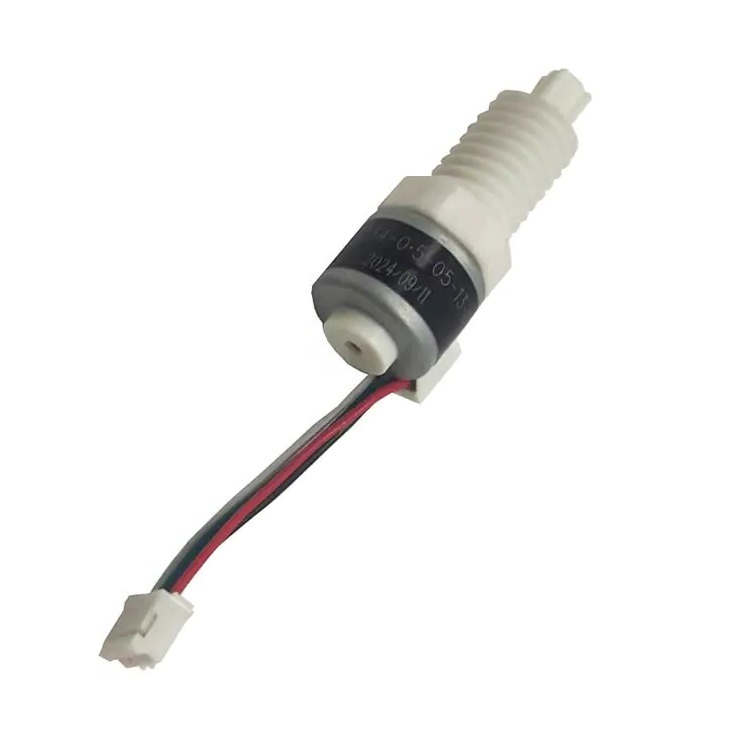

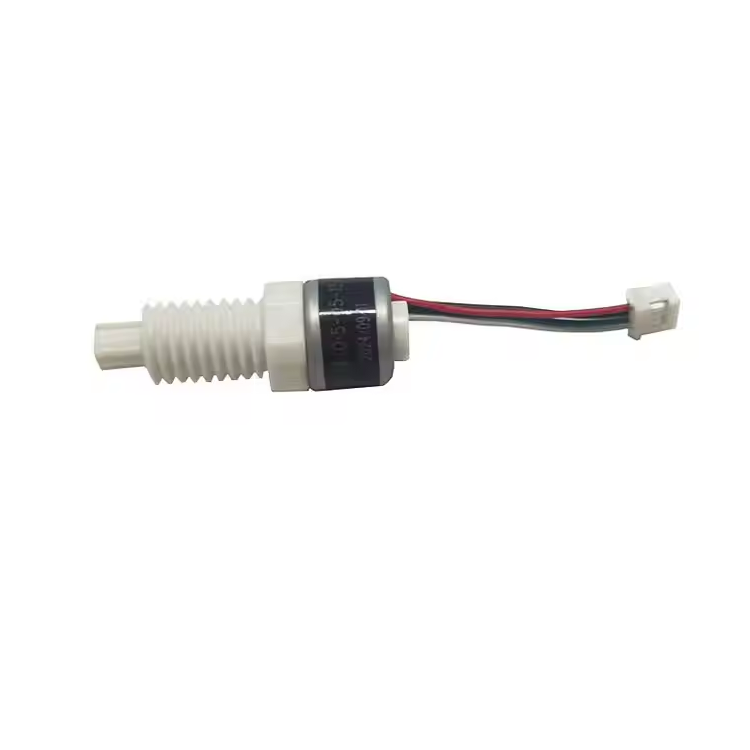

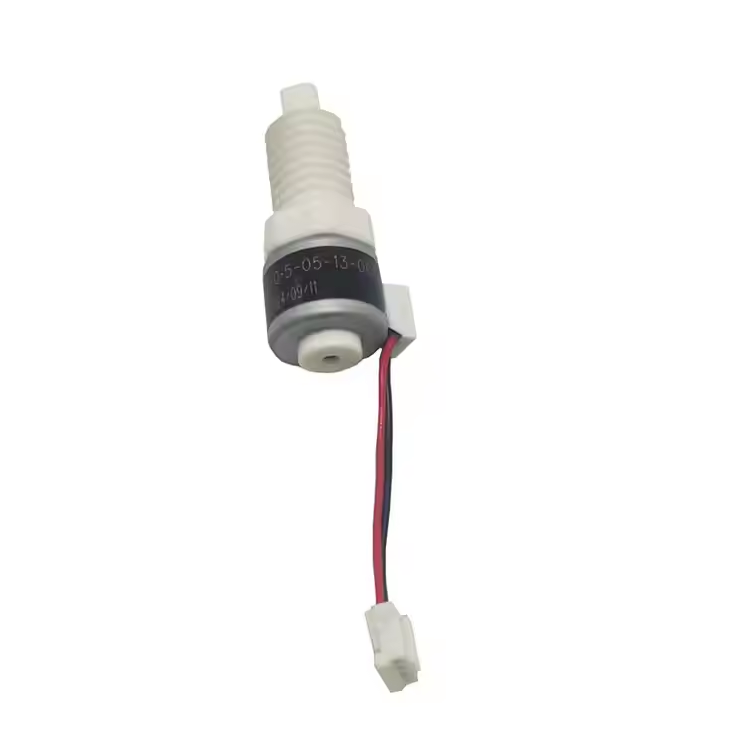

Miniature 15mm diameter linear motor with fixed shaft stroke of 13mm

  • Miniature 15mm diameter linear motor with fixed shaft stroke of 13mm
  • Miniature 15mm diameter linear motor with fixed shaft stroke of 13mm
  • Miniature 15mm diameter linear motor with fixed shaft stroke of 13mm
  • Miniature 15mm diameter linear motor with fixed shaft stroke of 13mm
  • Miniature 15mm diameter linear motor with fixed shaft stroke of 13mm
Place of Origin China
Brand Name VIC-TECH
Certification RoHS
Model Number K15PC34-0.5-05-13-001
Minimum Order Quantity 1Unit
Price $6.8~$28 /Unit
Packaging Details Standard export package, or can be customized
Delivery Time 15-30 work days
Payment Terms Western Union, T/T, L/C, MoneyGram
Supply Ability 100000 Units/year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Resistance 33Ω±10% Phase 2
Type Permanent Magnet Holding Torque 5N
Step Angle(degrees) 18° Voltage 5V
Highlight

15mm linear stepper motor

,

fixed shaft linear motor

,

13mm stroke linear motor
Leave a Message
Product Description

5V high-precision compact size 15mm diameter captive linear stepper motor



This is a 15mm diameter linear stepper motor designed for high-precision linear motion. The small diameter can save customers installation space
The motor is a 2-phase 4-wire bipolar stepper motor, which can accurately control linear operation, and the effective stroke of the screw is 13mm
The screw guide is 0.5 millimeters with a step size of 0.025 millimeters, which means that every time the motor takes one step, it travels 0.025 millimeters. This is crucial for high-precision control.



If you want to customize parameters such as coil resistance, cable length, etc., please feel free to contact us at any time.



Mechanical Dimension:MM



Miniature 15mm diameter linear motor with fixed shaft stroke of 13mm 0



otor parameters and specificatio

Miniature 15mm diameter linear motor with fixed shaft stroke of 13mm 1

Technical Features

This product is a patented product of the company. It converts the rotation of the motor into a linear motion through the relative

movement of the internal rotor and the screw. It is mainly used in valve control, automatic buttons, medical equipment, textile

machines, robots and other related fields.
At the same time, the external wiring part can use four terminal posts (light pins) or connecting wires, or FPC FFC PCB, etc.

according to customer requirements.
The output part is linear.

Typical Applications

  • Medical Equipment

  • Automatic Control

  • 3D Printer

  • Precision Calibration

  • Precision Fluid Measurement

  • Precise Position Movement

Specifications

Product Name

PM15  linear stepper motor

Model

K15PC34-0.5-05-13-001

Resistance

33Ω±10%

Pull in frequency

200PPS

The MarkThrust

7N at 5V 200PPS

Inductance

8.7REF (mH)

Mounting

rear axle

Mounting

8.1±0.1mm /rear axle

Insulation Class

class B

lead wrie

UL 1061 AWG26

OEM & ODM Srvice

Available



Captive Linear Stepper Motor With 5Vdc Lead Screw Bipolar Customized









Customization service

The motor can customize the normal screw stroke,

Connectors and outlet boxes can be customized according to customer requirements
