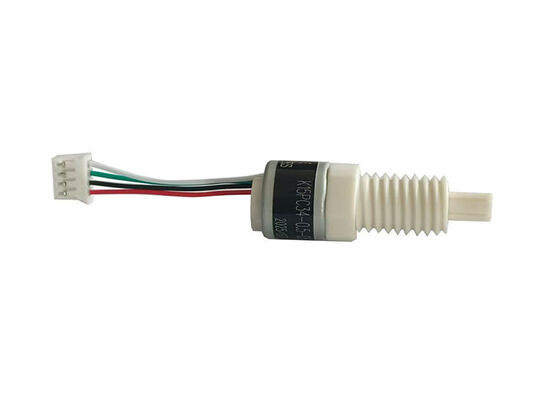

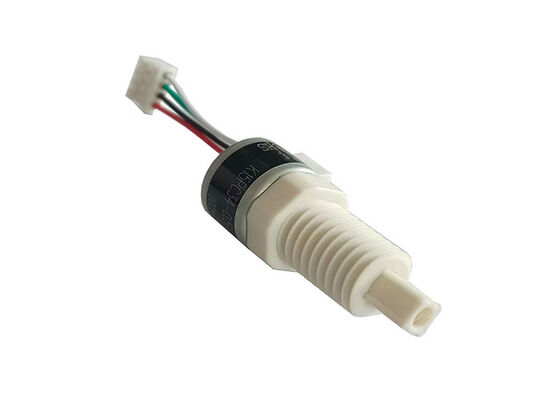

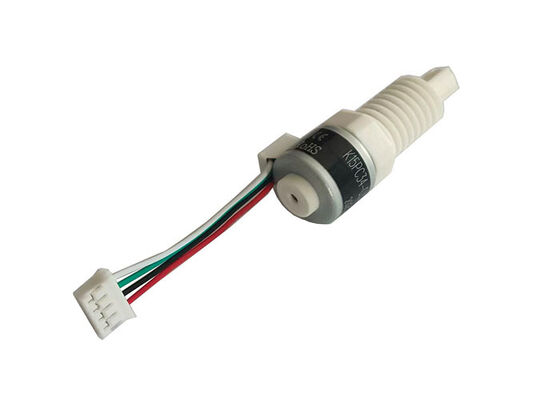

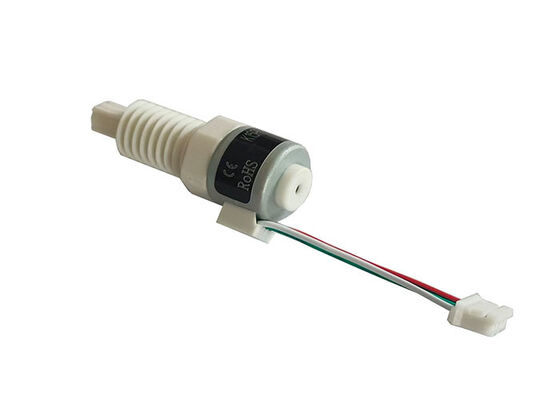

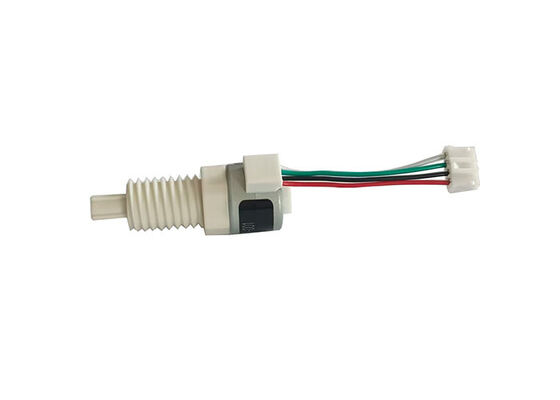

Custom-made Self-Locking Linear Stepper Motor with 0.025mm Step Size and 13mm Stroke
| Place of Origin | China |
|---|---|
| Brand Name | VIC-TECH |
| Certification | RoHS |
| Model Number | VSM15-TBD |
| Minimum Order Quantity | 1Unit |
| Price | $7~$30/Unit |
| Packaging Details | Standard export package, or can be customized |
| Delivery Time | 15-30 work days |
| Payment Terms | Western Union,T/T,L/C,MoneyGram |
| Supply Ability | 1000000 Units/year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Phase Inductance | 9(±10%）Ohm/20C | No. Of Phases | 2 Phases |
|---|---|---|---|
| Maximum Thrust | 10N | Step Angle | 18 Degrees |
| Rated Voltage | 5V DC | Lead | 0.5mm 1.0mm |
| Screw Diameter | 15mm | ||
| Highlight | Self-Locking Linear Stepper Motor,0.025mm Step Size Stepper Motor,13mm Stroke Linear Actuator Motor |
||
Product Description
18 Degree Step Custom-made Fixed Linear Stepper Motor with a Diameter of 15 mm
18° Step Angle, 5V Voltage, High Thrust, 15mm Diameter, Self-Locking Linear Stepper Motor
This 15mm diameter linear stepper motor is designed for high-precision linear motion with an approximate stroke of 13mm. As a standard two-phase, bipolar, four-wire stepper motor, it can be driven using standard stepper motor drivers.
The screw lead is 0.5mm with a step size of 0.025mm, enabling precise movement of 0.025mm per step for exceptional control accuracy. Custom parameters including coil resistance and cable length are available upon request.
Mechanical Dimension (MM)
Step Speed and Thrust Curve
Typical Applications
- Medical Equipment
- High-Precision Valves
- Linear Robot Control
- Precision Calibration
- Other Precision Positioning Motion
Specifications
| Motor diameter | 15mm |
|---|---|
| Rated voltage | 5 V |
| No. of phases | 2 Phases |
| Phase Current | 160 mA |
| Phase resistance | 33 ohm |
| Screw lead | 0.5mm |
| Step travel | 0.025mm |
| Step angle | 18° |
| Screw length | 46mm |
Competitive Advantage
- High quality components at competitive pricing
- Fast delivery with rich inventory available
- Strategic location near Shanghai port for convenient logistics
