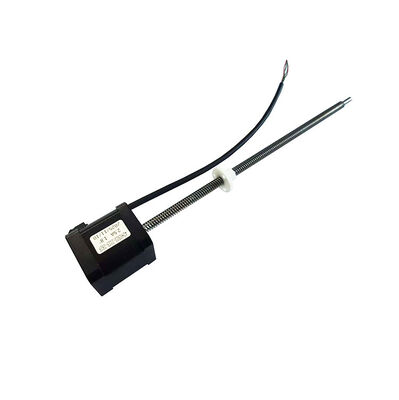

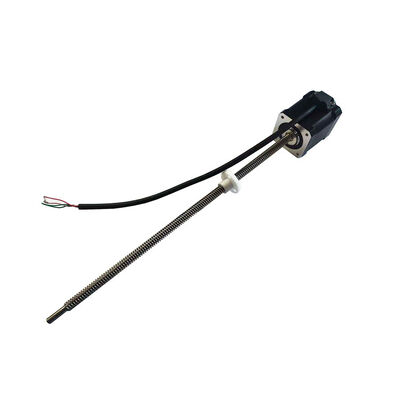

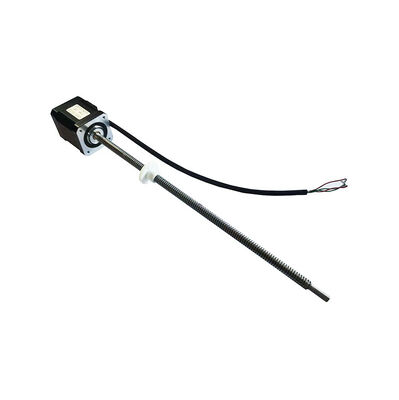

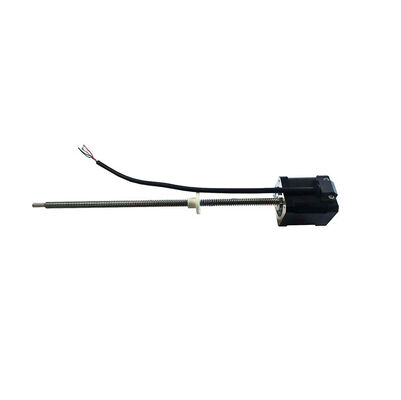

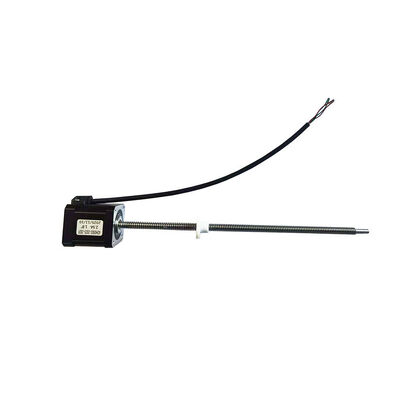

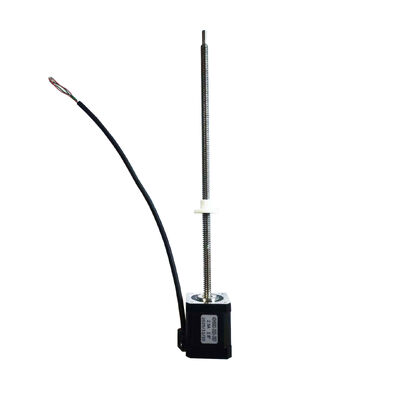

Customizable 42mm Size 300mm TR8 Long Length Shaft NEMA17 Linear Hybrid Stepper Motor with 4mm Lead
| Place of Origin | China |
|---|---|
| Brand Name | VIC-TECH |
| Certification | RoHS, ISO9001 |
| Model Number | 42H0503-282F |
| Minimum Order Quantity | 2 Unit |
| Price | $35~$55/Unit |
| Packaging Details | Standard export package in corrugated carton (Mass production). |
| Delivery Time | 15-30 work days |
| Payment Terms | Western Union,T/T,L/C,MoneyGram |
| Supply Ability | 100000 Units/year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Resistance | 0.8Ω/phase | Phase | 2 Phases, 4 Steps |
|---|---|---|---|
| Type | Hybrid Linear Stepper Motor | Step Angle | 1.8° |
| Thrust | Over 15 KG | Screw Type | TR8*4 |
| Step Length | 0.02mm/step | ||
| Highlight | 42mm Size Linear Stepper Motor,300mm TR8 Long Length Shaft Hybrid Stepper Motor,4mm Lead NEMA17 Stepper Motor |
||
You can tick the products you need and communicate with us in the message board.
Product Description
Customized 42mm Size 300mm TR8 Long Length Shaft NEMA17 Linear Hybrid Stepper Motor
This NEMA17 42mm size hybrid stepper motor features a TR8 lead screw with 4mm lead. We offer multiple lead screw options with different diameters and leads to suit various project requirements.
Customization services are available for lead screw length design. The current design features a shaft length of approximately 280mm, with options available for lengths exceeding 300mm.
Contact us for professional customization services for hybrid stepper motors with long length lead screws for your specific project needs.
Typical Applications
- Medical Equipment
- Linear Robotic Control
- Precision Calibration
- High Precision Valve
- Other Precise Position Movement
Design Layout (Unit:mm)
Technical Specifications
| Product Model No. | 42H0503-282F |
|---|---|
| Motor type | Linear Hybrid stepper motor |
| Motor size | 42mm (NEMA17) |
| Screw diameter type | TR8*4 |
| Step angle | 1.8°/step |
| Step length | 0.02mm/step |
| Resistance | 0.8Ω/phase |
| Minimal Thrust (180RPM) | >15KG |
Competitive Advantages
- High quality products at competitive prices
- Fast delivery with rich inventory
- Convenient location near Shanghai port
