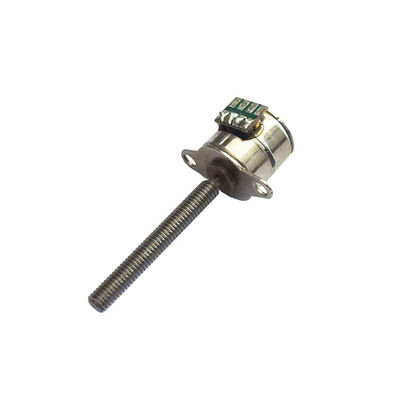

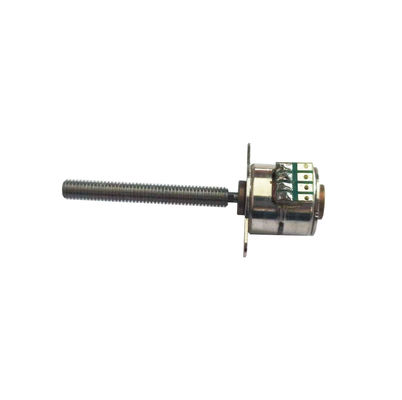

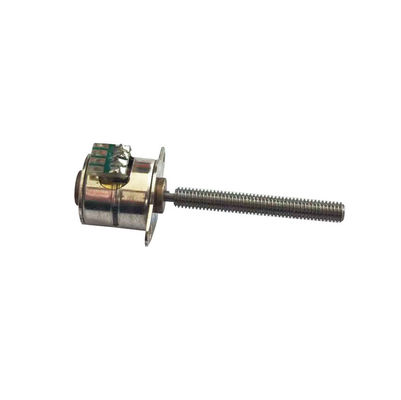

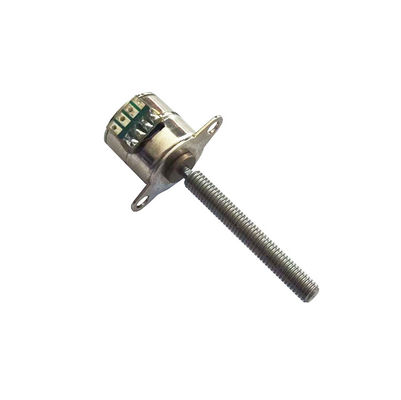

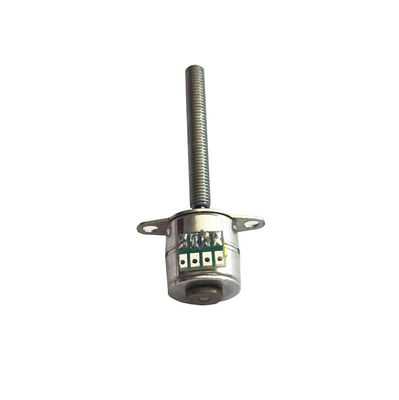

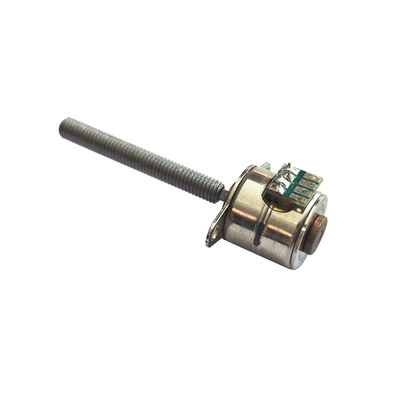

10mm Diameter Micro Stepper Motor with M3 Lead Screw Shaft and 5V Voltage Customizable Shaft Length and Lead Screw Type

  • 10mm Diameter Micro Stepper Motor with M3 Lead Screw Shaft and 5V Voltage Customizable Shaft Length and Lead Screw Type
  • 10mm Diameter Micro Stepper Motor with M3 Lead Screw Shaft and 5V Voltage Customizable Shaft Length and Lead Screw Type
  • 10mm Diameter Micro Stepper Motor with M3 Lead Screw Shaft and 5V Voltage Customizable Shaft Length and Lead Screw Type
  • 10mm Diameter Micro Stepper Motor with M3 Lead Screw Shaft and 5V Voltage Customizable Shaft Length and Lead Screw Type
  • 10mm Diameter Micro Stepper Motor with M3 Lead Screw Shaft and 5V Voltage Customizable Shaft Length and Lead Screw Type
  • 10mm Diameter Micro Stepper Motor with M3 Lead Screw Shaft and 5V Voltage Customizable Shaft Length and Lead Screw Type
Place of Origin Jiangsu, China (Mainland)
Brand Name VIC-TECH
Certification RoHS
Model Number VSM1070-25M3
Minimum Order Quantity 1Unit
Price $2~$5/Unit
Packaging Details Selling Units: Single item plastic box inner , outer paper box Package: single carton packing, 100 - 1000 pieces per box. Lead Time : 30 Days After Deposit
Delivery Time 15-30 work days
Payment Terms T/T,Western Union,MoneyGram
Supply Ability 1,000,000 Units/year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Step Angle(degrees) 18 Degree Phase 2
Voltage 5V Resistance 40Ω
Motor Size 10mm Diameter Lead Screw Type M3*P0.5
Step Angle 18°/step
Highlight

Customizable Shaft Length Micro Stepper Motor

,

Customizable Lead Screw Type Stepper Motor

,

40Ω Resistance PM Stepper Motor
Leave a Message
Product Description
10mm Diameter Small Size M3 Lead Screw Shaft 5V Stepper Motor
This 10mm diameter stepper motor features an M3 lead screw shaft with customizable length. The lead screw can be replaced with other types (such as M4) or removed entirely for a round shaft or gear assembly, depending on your project requirements.
Additional customizable parameters include coil resistance, cable length, and connector type. Our team provides full customization services to meet your specific needs.
Mechanical Dimension (Unit: mm)
10mm Diameter Micro Stepper Motor with M3 Lead Screw Shaft and 5V Voltage Customizable Shaft Length and Lead Screw Type 0
Technical Features
The motor input can be configured as FPC, connecting wire pins, PCB, or other forms based on customer requirements. Mounting brackets can also be customized, and we can provide matching drive systems to meet your application needs.
With over 10 years of experience in stepper motor design and production, our team can develop products and provide auxiliary design support for your specialized requirements.
Typical Applications
  • Intelligent Security Products
  • Camera Lenses
  • Door Locks
  • Wearable Devices
Specifications
Product Model No. VSM1070-25M3
Motor size 10mm diameter
Lead screw type M3*P0.5
Rated voltage 5V DC
Coil resistance 40Ω/phase
Step angle 18°/step
Competitive Advantage
  • High quality at competitive prices
  • Fast delivery with rich inventory
  • Convenient location near Shanghai port
Type Of Wire Connection Options
Available connection methods include Pin type, FPC, PCB, and Lead wire, all customizable to customer requirements.
10mm Diameter Micro Stepper Motor with M3 Lead Screw Shaft and 5V Voltage Customizable Shaft Length and Lead Screw Type 1
Type of Fixture Cover
Standard models shown below, with special sizes available for customization.
10mm Diameter Micro Stepper Motor with M3 Lead Screw Shaft and 5V Voltage Customizable Shaft Length and Lead Screw Type 2
Product Detail Presentation
10mm Diameter Micro Stepper Motor with M3 Lead Screw Shaft and 5V Voltage Customizable Shaft Length and Lead Screw Type 3 10mm Diameter Micro Stepper Motor with M3 Lead Screw Shaft and 5V Voltage Customizable Shaft Length and Lead Screw Type 4
