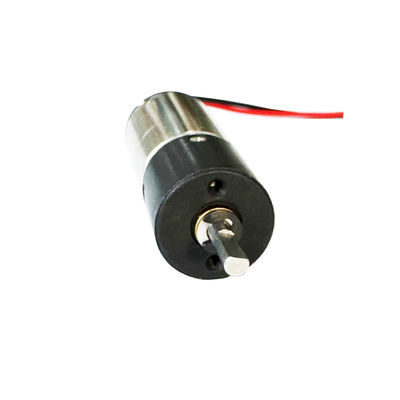

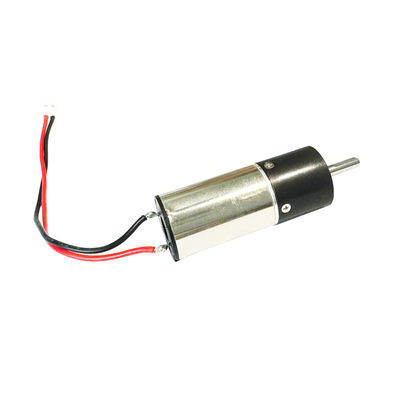

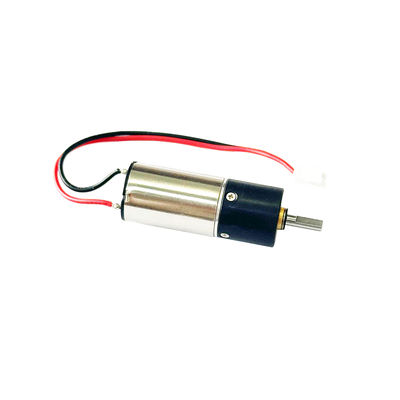

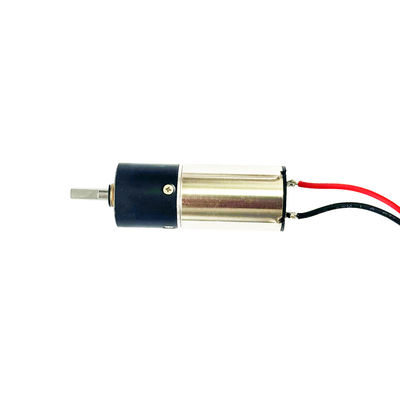

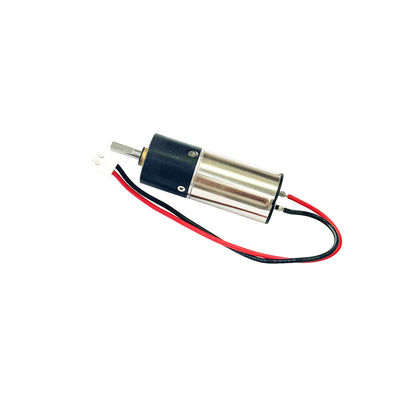

Micro motor 16mm diameter hollow cup motor high torque planetary gearbox
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Shaft Length | 10.5mm | Shaft Diameter | 3mmD2.5 |
|---|---|---|---|
| Weight | 0.15kg | Diameter | 16mm |
| Voltage | 3.3V~5v | ||
| Highlight | 16mm hollow cup micro motor,high torque planetary gearbox motor,geared stepper motor with planetary gearbox |
||
Product Description
Product Description:
The micro hollow cup motor has the characteristics of high torque output, high transmission efficiency, long service life, and low power consumption. This motor has a diameter of 16mm and is matched with a precision planetary gearbox to reduce the speed and increase the torque,
The copper coil design of the hollow cup motor with good heat dissipation effect optimizes the air flow on the inner and outer surfaces, which is more conducive to heat dissipation compared to traditional motors and improves the operating efficiency and lifespan of the motor. These advantages make hollow cup motors an ideal choice in various application fields, especially in situations that require high efficiency, low noise, and precise control.
The transmission system of the low-noise hollow cup motor adopts precision gears and bearings, which can ensure the smooth operation of the motor and low rotational noise. Compared with traditional motors, its noise level can be reduced to below 40 decibels. 3, The structure of the low vibration hollow cup motor is very compact and has high control accuracy, which can reduce vibration and ensure smooth motion. 4, The structure design of the hollow cup motor is compact and easy to integrate,
Features:
- Geared Stepper Motor: a miniature gear motor with a gearbox stepper motor
- Diameter: 16mm
- Detent Torque: 0.3kg.cm
- Voltage: 3.3V~5v
Technical Parameters:
| Product Name | Geared Stepper Motor |
|---|---|
| Diameter | 16mm |
| Shaft Diameter | 3mmD2.5 |
| Shaft Length | 11.6mm (Customizable) |
| Weight | 0.25kg |
| Current | 0.430A |
| Voltage | 3.3V ~ 5V |
| Detent Torque | 0.3kg.cm |
| Stall Torque | 4 kg.cm |
Applications:
Mainly used in systems that require high torque and precision. Such as 3D printers, various robot joints, stereoscopic camera walking platforms, etc.
By combining with a reduction gear set and a reduction drive belt, a greater reduction ratio and torque output can be achieved.
Therefore, 16mm deceleration stepper motors have the characteristics of high torque, low speed, and high accuracy, and are mainly used in systems that require high-precision low speed positioning. Cooperating with gears and other reduction mechanisms can achieve higher reduction ratios and torque output.
Customization:
The output shaft of the motor can be customized according to customer needs, and the length of the connecting wire can also be customized. The encoder can be customized according to customer needs. We look forward to your contact and cooperation
Support and Services:
Geared Stepper Motor Technical Support and Service:
- 24/7 customer service access
- Full product documentation
Packing and Shipping:
Packaging and Shipping for Geared Stepper Motor
Our geared stepper motors are carefully packaged for protection during shipment. We use sturdy foam inserts and corrugated cardboard boxes to ensure safe delivery. Our boxes are clearly labeled with the product name and serial number to ensure prompt and accurate delivery.
If you are ordering multiple stepper motors, we can provide custom packing to ensure each motor is securely separated and protected during shipment. We can also provide special packaging for hazardous materials.
We offer a variety of shipping options to meet your needs. We use reliable couriers such as UPS, FedEx, and DHL to ensure your stepper motor arrives on time and in perfect condition.
