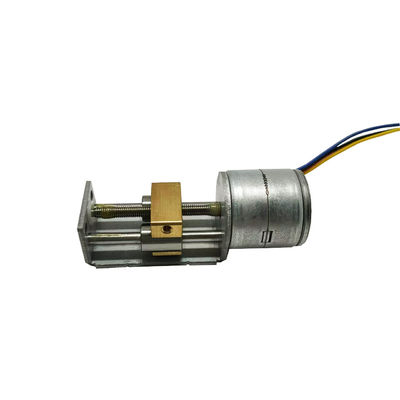

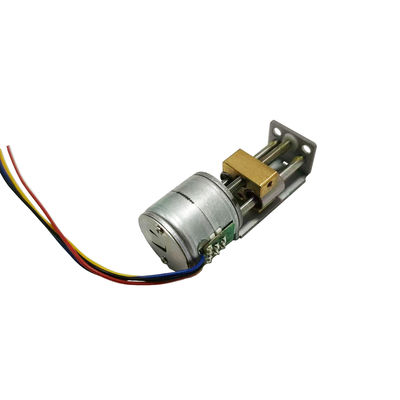

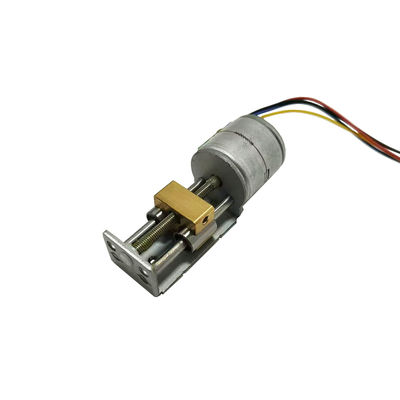

SM20-21L-T Linear Stepper Motor 2 Phase 12V Rated Voltage and 18° step for Precision Control
| Place of Origin | Jiangsu, China (Mainland) |
|---|---|
| Brand Name | VIC-TECH |
| Certification | RoHS |
| Model Number | SM20-21L-T |
| Minimum Order Quantity | 1 unit |
| Price | $7-$15/unit |
| Packaging Details | Selling Units: Single item plastic box inner , outer paper box Package: single carton packing, 100 - 1000 pieces per box. |
| Delivery Time | 15-30 work days |
| Payment Terms | Western Union,MoneyGram，Credit Card |
| Supply Ability | 1000000 units/year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Permanent Magnet | Step Angle | 18 ° |
|---|---|---|---|
| Phase | 2 Phases | Current / Phase | 800mA/PHASE |
| Rated Voltage | 12 V | Coil Resistance | 15.6±10%Ω |
| Thrust | Over 1.2KG | ||
| Highlight | Linear stepper motor 2 phase 12V,Slider stepper motor 18° step,Precision control stepper motor with warranty |
||
You can tick the products you need and communicate with us in the message board.
Product Description
SM20-21L-T Metal Slide Linear Stepper Motor, 20mm Diameter, 2-Phase Stepper Motor, 1.2kg Thrust
This 20mm linear motor features a copper slide and two linear bearings for enhanced stability. A plastic slide option is also available.
Key Features
- 18° step angle
- M3*0.5P threaded lead screw shaft (0.5mm pitch per rotation)
- 21mm travel range
- 1.2kg thrust capacity (over 12N)
- Precision linear control capability
Mechanical Dimensions
Technical Parameters
| Parameter | Value |
|---|---|
| Model No. | SM20-21L-T |
| Current Per Phase | 770 mA/Phase |
| Coil Resistance | 15.6±7% ohm/PHASE |
| Rated Voltage | 12 V DC |
| No. of Phases | 2 Phases |
| Step Angle | 18°/Step |
| Excitation Method | 2 Phases Excitation |
| Drive Mode | Bipolar Drive |
| Pull-out Thrust | More Than 1200g AT 700PPS |
| Max Response Frequency | More Than 1300 PPS |
| Max Starting Frequency | More Than 1000 PPS |
| Insulation Class | CLASS E FOR COILS |
| Insulation Strength | 100 V AC FOR ONE SECOND |
| Insulation Resistance | 50mΩ DC 500 V |
| Operating Temperature | -0~55℃ |
Primary Applications
- Camera systems
- Optical instruments
- Lens mechanisms
- Precision medical devices
- Automatic door locks
Product Details

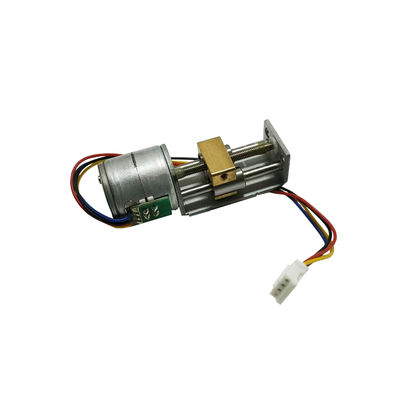

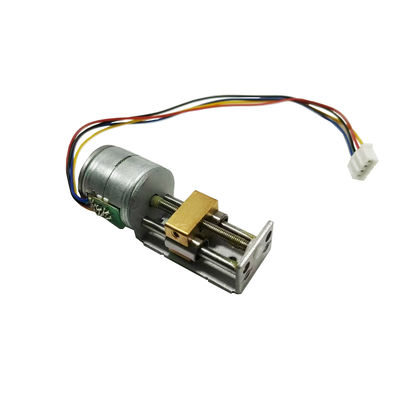

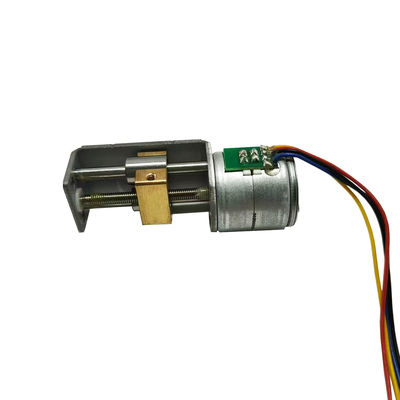

Wiring Connection Options
The motor input features FPC connection, but can be customized to include connecting line needles, PCB, or other forms based on customer requirements.
