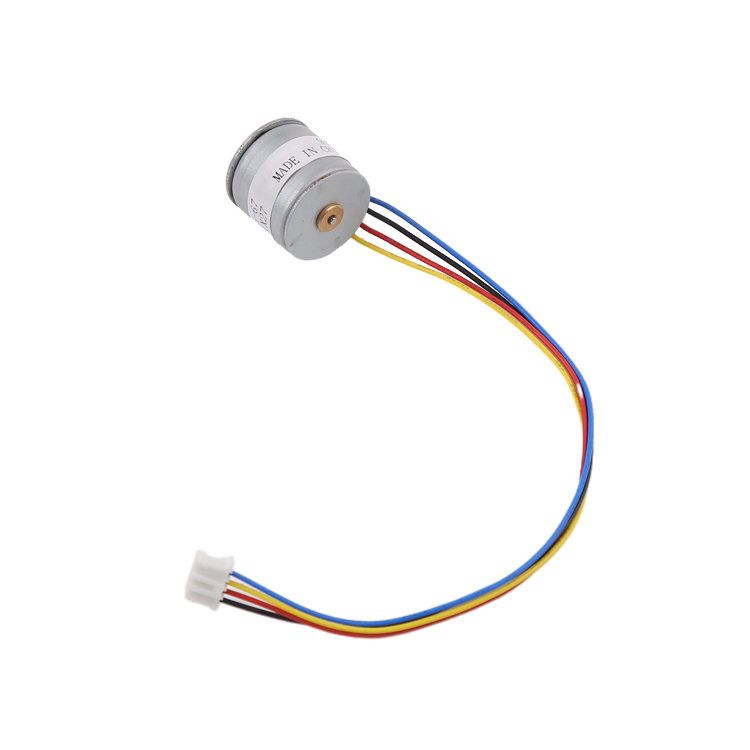

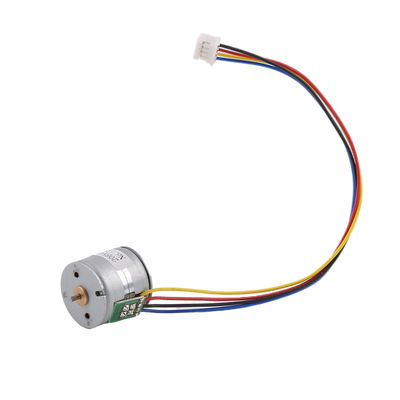

Bipolar Drive 24V Micro Stepper Motor 20mm 2 Phase With Metal Gear
| Place of Origin | China |
|---|---|
| Brand Name | V-motor |
| Certification | RoHS |
| Model Number | 20BY45-67 |
| Minimum Order Quantity | 1 pc |
| Price | US$1.85~4 |
| Packaging Details | he blister box is specially customized for the product, which can properly protect the product. The outer packaging of the sample stage is a carton box, and the batch will be palletized as necessary |
| Delivery Time | 3~15 days |
| Payment Terms | T/T, D/P |
| Supply Ability | 100000/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Permanent Magnet Stepper Motor | Step Angle(degrees) | 18° |
|---|---|---|---|
| Usage | Printer,Industral,security System | Frame Size | Dia.20MMXL19.1mm |
| Phase | 2 | Voltage | 24V |
| Current / Phase | 0.5A | Weight | 20g |
| Highlight | 24V bipolar micro stepper motor,2 phase micro stepper motor,20mm metal gear stepper motor |
||
Product Description
24v PM micro stepper Motor bipolar drive 20mm mini stepping motor with metal gear
Motor basic step angle is 18 degrees, that is, 20 steps per turn, plus the deceleration box deceleration effect, the final motor rotation angle resolution can reach 0.05~6 degrees, can be used in many requirements
Precise control of the rotating position of the field.
It is a mini stepper motor, diameter is 20mm,a torque of 60gf.cm and max speed can achieve 3000rpm.
Therefore, the product can be used where precise control of the position is required. Generally can be used in medical equipment, printers, automation equipment, robots, etc.
PM stepper motor parameters:
| PRODUCT NAME | 20 Micro stepper motor |
| MODEL | 20BY45-67 |
| RESISTANCE | 200 Ω±10% |
| VOITAGE | 24VDC |
| Step angle | 18°±7% |
| Detent Torque | ≤83g.cm |
| OEM & ODM SERVICE | AVAILABLE |
PM stepper motor outdrawing:

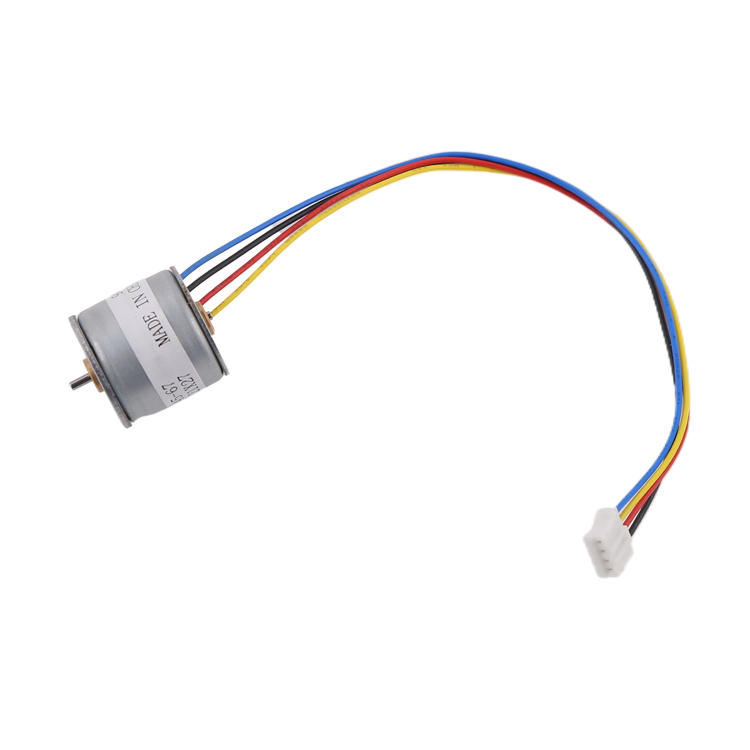

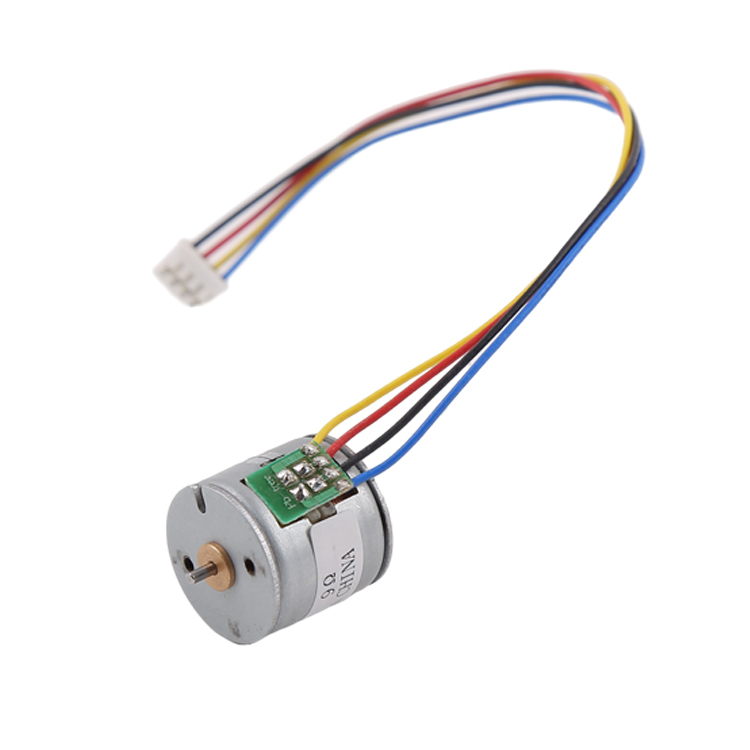

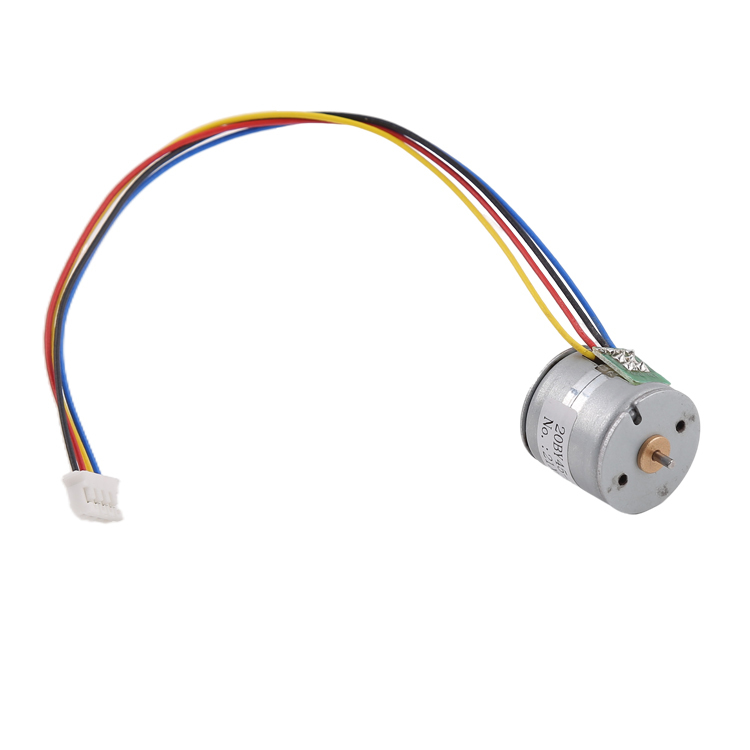

Product display:
This product is mainly used for printers, fax machines, photocopiers, camera devices, monitoring pan-tilts, etc.
The output part can use various methods such as gears, pulleys, and V-shaped groove wheels.
The shape of the mounting plate and the outlet can be adjusted according to customer needs!
