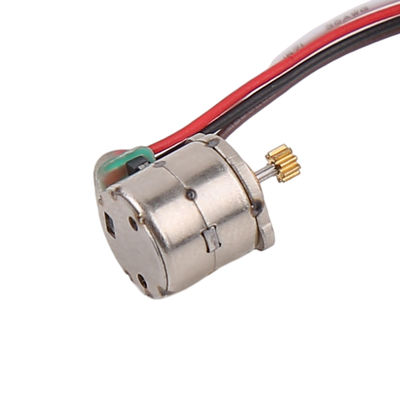

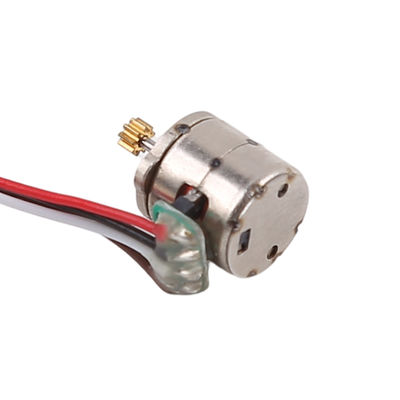

Vic-Tech 2 Phase 4 Wire Stepper Motor , 3.3V DV Stepping Motor 8mm
| Place of Origin | China |
|---|---|
| Brand Name | V-motor |
| Certification | RoHS |
| Model Number | VSM08133 |
| Minimum Order Quantity | 1 pc |
| Price | US$2~5 |
| Packaging Details | he blister box is specially customized for the product, which can properly protect the product. The outer packaging of the sample stage is a carton box, and the batch will be palletized as necessary |
| Delivery Time | 3~15 days |
| Payment Terms | T/T, D/P |
| Supply Ability | 100000/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | 3.3 V Stepper Motor | Step Angle(degrees) | 18° |
|---|---|---|---|
| Voltage | 3.3V DC | Phase | 2 Phases |
| Resistance | 40 Ohm | Motor Diameter | 8mm |
| Torque | 0.9-1.2g.cm | Number Of Phases | 2 Phases |
| Highlight | 3.3V stepper motor 8mm,2 phase 4 wire stepper motor,micro stepper motor with warranty |
||
Product Description
8mm micro stepper motor Long life 2 phase 4 wire 3.3V DC mini stepping motor
VSM08133 is a precision micro stepping motor body outer diameter 8MM, body length 8.2MM, shaft outer diameter 1MM, the shaft length can be changed according to the needs, and can be equipped with gears, pulleys,
Corresponding output devices such as worm and screw.
The motor has a basic step angle of 18 degrees and the motor runs 20 steps per week.
Because of its small size, high precision, and easy control, this miniature stepper motor is widely used in cameras, optical instruments, lenses, flashlights, precision medical equipment, automatic door locks and other fields.
The motor input part of the FPC, but can according to the customer demand can be changed to a connecting line needle, PCB and other forms.
The mounting bracket can be changed according to the customer's request.
At the same time, we can match the corresponding drive system to meet the needs of customers!
Our team has more than 10 years of stepper motor design, development and production experience, so we can achieve product development and auxiliary design according to the special needs of customers!
Customer needs are our efforts, please feel free to contact us!
This miniature motor is mainly used in cameras, lenses, optical instruments and other fields. The light needle is relatively small in size and the control is very precise. The needs of customers are the direction of our efforts, and meeting the needs of customers will be our highest pursuit. If you have needs, please feel free to keep in touch with us.
8mm micro stepper motor parameter sheet:
| PRODUCT NAME | 8 MM MICRO STEPPER MOTOR |
| MODEL | VSM08133 |
| RATED VOLTAGE | 3.3 V DC |
| COIL RESISTANCE | 40Ω±10% |
| NO.OF PHASES | 2 PHASES |
| STEP ANGLE | 18°/STEP |
| MAX. STARTING FREQUENCY | 1000 PPS min. (AT 3.3 V DC) |
| MAX. SLEWING FREQUENCY | 1200 PPS min. (AT 3.3 V DC) |
| PULL IN TORQUE | 0.8 gf-cm min. (AT 480 PPS , 3.3V DC) |
| PULL OUT TORQUE | 1.0 gf-cm min. (AT 480 PPS , 3.3V DC) |
| INSULATION CLASS | CLASS E FOR COILS |
| INSULATION STRENGTH | 100V AC FOR ONE SECOND(3mA MAX) |
| INSULATION RESISTENCE | 1 MΩ (DC 100 V) |
| OPERATING TEMPERATURE RANGE | -10~+60 ℃ |
| OEM & ODM SERVICE | AVAILABLE |
8mm micro stepper motor outside drawing:

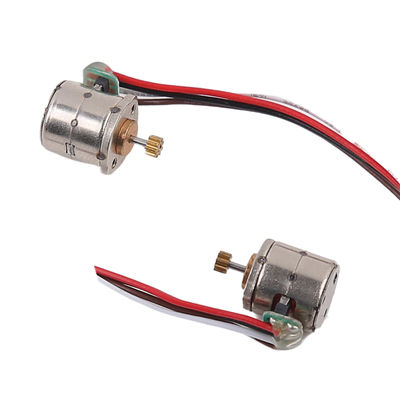

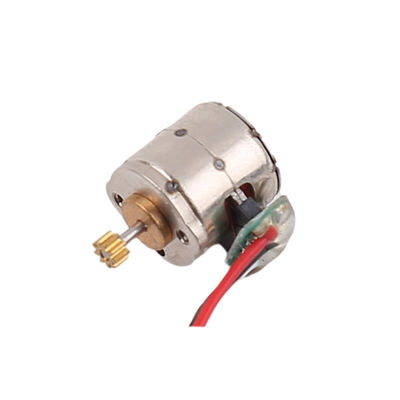

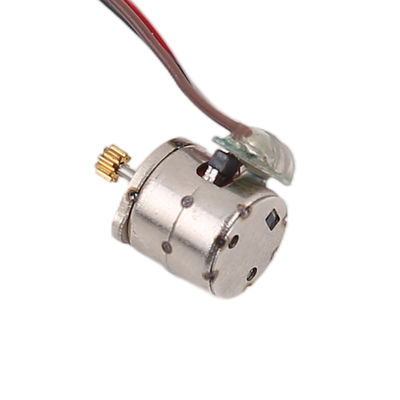

Product display:
8mm Stepper Motor 3.3V DC 2 Phase 18 Degree Step Angle Micro Stepper Motor
The principle of stepper motor is as follows:
1. The stepper motor is controlled by pulse signal. Each time a pulse is input, the stepper motor is pushed forward one step.
2. The rotation step angle of the stepping motor is based on the structure of the motor and is realized in a certain proportion.
3. In practice, there will be slight differences in the rotation step angle of the motor. This is because the structure of the motor is fixed, and the total number of poles will not be accumulated, and the higher the processing accuracy will be. In general, the step angle of an industrial hybrid stepper motor is 1.8°, or 200 poles.
