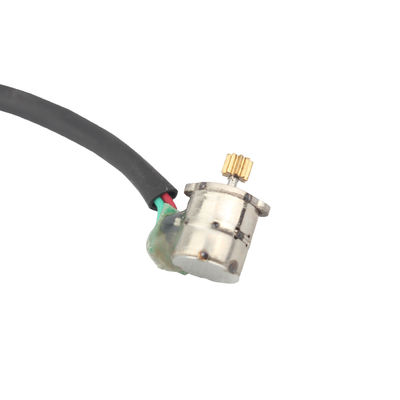

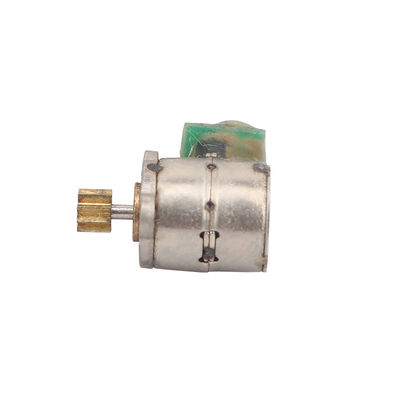

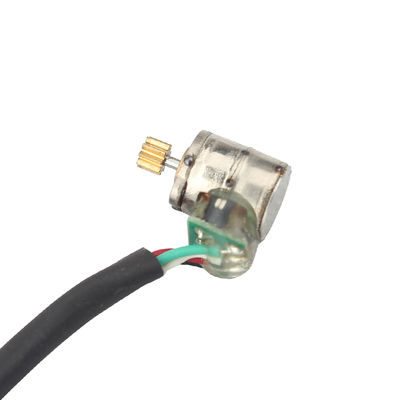

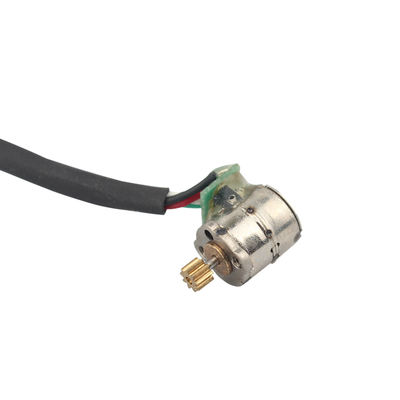

10mm Micro Stepper Motor 5VDC 10BY25 PM Mini Stepping Motor 1 pc US$2~5

  • 10mm Micro Stepper Motor 5VDC 10BY25 PM Mini Stepping Motor 1 pc US$2~5
  • 10mm Micro Stepper Motor 5VDC 10BY25 PM Mini Stepping Motor 1 pc US$2~5
  • 10mm Micro Stepper Motor 5VDC 10BY25 PM Mini Stepping Motor 1 pc US$2~5
  • 10mm Micro Stepper Motor 5VDC 10BY25 PM Mini Stepping Motor 1 pc US$2~5
Place of Origin China
Brand Name V-motor
Certification RoHS
Model Number VSM1070
Minimum Order Quantity 1 pc
Price US$2~5
Packaging Details he blister box is specially customized for the product, which can properly protect the product. The outer packaging of the sample stage is a carton box, and the batch will be palletized as necessary
Delivery Time 3~15 days
Payment Terms T/T, D/P
Supply Ability 100000/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Phase 2 Type Micro Stepper Motor
Step Angle(degrees) 18° Voltage 5V
Magnet Type Rare Earth Permanent Magnet Resistance 40 Ohm
Mounting Hole Spacing 14mm Motor Diameter 10mm
Highlight

10mm micro stepper motor 5VDC

,

mini stepping motor 10BY25

,

micro stepper motor with warranty
Leave a Message
Product Description

10mm Micro stepper Motor 5VDC 10BY25 PM mini Stepping Motor



VSM1070 is a precision miniature stepping motor with an outer diameter of 10mm, a motor height of 9.2mm, and an output shaft diameter of 1.5mm. The length of the output shaft can be appropriately changed according to customer installation requirements, and can also be equipped with gears, pulleys, worms, lead screws, etc. output device.


Because of its small size, high precision, easy to control and other excellent characteristics, so this micro stepper motor is widely used in the camera, optical instruments, lenses, precision medical devices, automatic door locks and other fields.
The motor input part of the FPC, but can according to the customer demand can be changed to a connecting line needle, PCB and other forms.


The mounting bracket can be changed according to the customer's request.



10mm micro stepper motor parameter sheet:





PRODUCT NAME 10 MM MICRO STEPPER MOTOR
MODEL VSM1070
MAX. STARTING FREQUENCY 1250 PPS min. (AT 5.0 V DC)
MAX. SLEWING FREQUENCY 1950 PPS min. (AT 5.0 V DC)
PULL IN TORQUE 5.4 gf-cm min. (AT 500 PPS , 5.0V DC)
PULL OUT TORQUE 6 gf-cm min. (AT 500 PPS , 5.0V DC)
INSULATION CLASS CLASS E FOR COILS
INSULATION STRENGTH 100V AC FOR ONE SECOND
INSULATION RESISTENCE 1 MΩ (DC 100 V)
OPERATING TEMPERATURE RANGE -10~+60 ℃
OEM & ODM SERVICE AVAILABLE





10mm micro stepper motor torque curve:

10mm Micro Stepper Motor 5VDC 10BY25 PM Mini Stepping Motor 1 pc US$2~5 0





10mm micro stepper motor outside drawing:

10mm Micro Stepper Motor 5VDC 10BY25 PM Mini Stepping Motor 1 pc US$2~5 1





Product display:

10BY micro 5v 10mm diameter mini stepper motor PM stepping motor

10mm Micro Stepper Motor 5VDC 10BY25 PM Mini Stepping Motor 1 pc US$2~5 2

Service and Customization:

This kind of small motor is mainly used in cameras, lenses, optical instruments and other fields, with small size and precise control. Customers can customize the motor resistance, installation size, outlet shape and size. For special occasions, the planetary gearbox can be matched with the motor to obtain low speed and high torque. The needs of customers are the direction we should strive for, and meeting the needs of customers will be our highest pursuit. Please keep in close contact with us.
