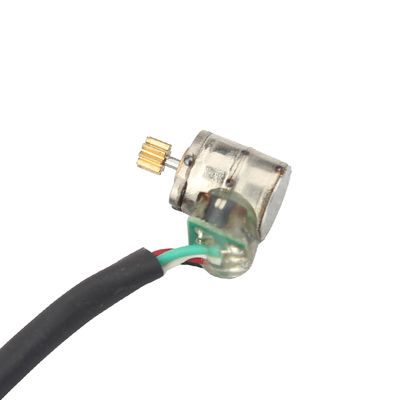

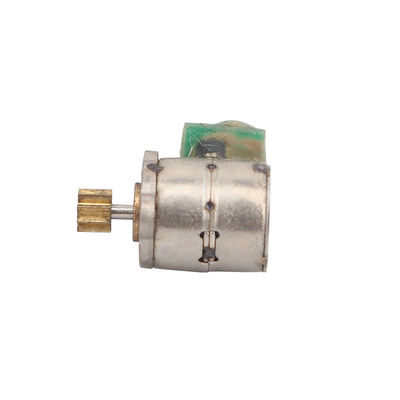

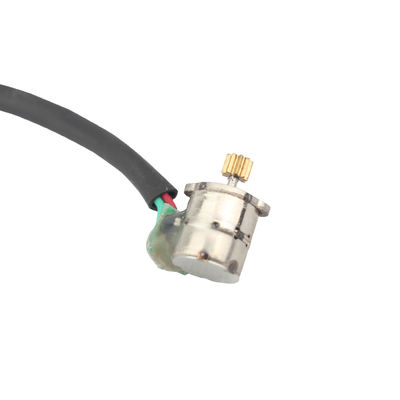

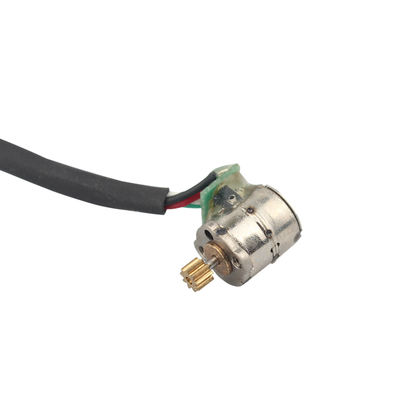

6mm Dia PM Micro Stepper Motor 3.3V Long Life 2 Phase Mini Step Motor

  • 6mm Dia PM Micro Stepper Motor 3.3V Long Life 2 Phase Mini Step Motor
  • 6mm Dia PM Micro Stepper Motor 3.3V Long Life 2 Phase Mini Step Motor
  • 6mm Dia PM Micro Stepper Motor 3.3V Long Life 2 Phase Mini Step Motor
  • 6mm Dia PM Micro Stepper Motor 3.3V Long Life 2 Phase Mini Step Motor
Place of Origin China
Brand Name V-motor
Certification RoHS
Model Number VSM0620
Minimum Order Quantity 1 pc
Price US$2~5
Packaging Details he blister box is specially customized for the product, which can properly protect the product. The outer packaging of the sample stage is a carton box, and the batch will be palletized as necessary
Delivery Time 3~15 days
Payment Terms T/T, D/P
Supply Ability 100000/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Phase 2 Type 2 Phase Mini Stepper Motor
Step Angle(degrees) 18° Voltage 3.3V
Resistance 12 Ohm Current / Phase 0.25A
Highlight

6mm micro stepper motor 3.3V

,

2 phase mini step motor

,

long life micro stepper motor
Leave a Message
Product Description

6mm Diameter PM micro stepper motor 3.3V Long life 2 phase mini step motor

VSM0620 is a miniature precision miniature stepping motor, the outer diameter is 6mm, the length is 7mm, the length is 7mm, and the shaft diameter is 0.8mm. The shaft length can be changed according to the needs.
Gear applications can also be added according to customer needs
Due to its small size, high precision, and easy control, this micro stepping motor is widely used in cameras, optical instruments, lenses, precision medical instruments, and other fields.
The motor input part is F, which can be changed into connecting lines, pins, PCB, FPC and other forms according to customer needs.
If you are interested in our motors, you can contact me anytime


Mounting brackets can be replaced according to customer requirements.







6mm micro stepper motor parameter sheet:





PRODUCT NAME 6 MM MICRO STEPPER MOTOR
MODEL VSM0620
MAX. STARTING FREQUENCY 1300 PPS min. (AT 3.3 V DC)
MAX. SLEWING FREQUENCY 2000 PPS min. (AT 3.3 V DC)
PULL IN TORQUE 0.7gf-cm min. (AT 500 PPS , 3.3V DC)
PULL OUT TORQUE 0.9gf-cm min. (AT 500 PPS , 3.3V DC)
INSULATION CLASS CLASS E FOR COILS
INSULATION STRENGTH 3.0mA (max.)
INSULATION RESISTENCE 1 MΩ (DC 100 V)
OPERATING TEMPERATURE RANGE -10~+60 ℃
OEM & ODM SERVICE AVAILABLE





6mm micro stepper motor torque curve:

6mm Dia PM Micro Stepper Motor 3.3V Long Life 2 Phase Mini Step Motor 0





6mm micro stepper motor outside drawing:

6mm Dia PM Micro Stepper Motor 3.3V Long Life 2 Phase Mini Step Motor 1





Product display:

6mm Dia PM Micro Stepper Motor 3.3V Long Life 2 Phase Mini Step Motor 2

Service and Customization:

This kind of small motor is mainly used in cameras, lenses, optical instruments and other fields, with small size and precise control.

User can customize the motor resistance, installation size, outlet shape and size.

For special occasions, the planetary gearbox can be matched with the motor to obtain low speed and high torque. The needs of customers are the direction we should strive for, and meeting the needs of customers will be our highest pursuit. Please keep in close contact with us.



Packaging and Shipping information:

All samples are packed in foam sponges in cartons.

For mass production, mass-produced products are packaged in cartons.

For sea shipping (mass production), cartons are packed on pallets.

Shipping time:

By express(DHL/ UPS/ Fedex/ TNT): 5~12 days

By 4PX express: 10~20 days

Sea shipping: 40~60 days (depends on different countries)
