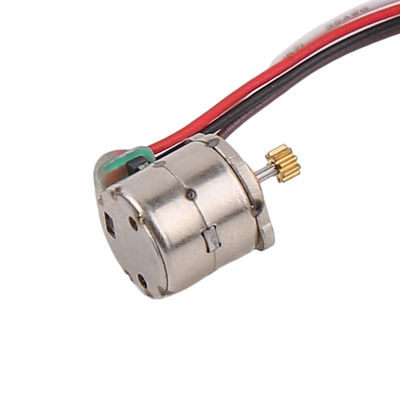

8mm Micro Stepper Motor, 3.5g.cm Micro Stepper Motor, 5VDC Small Stepper Motor
| Place of Origin | China |
|---|---|
| Brand Name | V-motor |
| Certification | RoHS |
| Model Number | VSM08284 |
| Minimum Order Quantity | 1 pc |
| Price | US$2~7 |
| Packaging Details | he blister box is specially customized for the product, which can properly protect the product. The outer packaging of the sample stage is a carton box, and the batch will be palletized as necessary |
| Delivery Time | 3~15 days |
| Payment Terms | T/T, D/P |
| Supply Ability | 100000/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Phase | 2 Phases | Type | Small Stepper Motor |
|---|---|---|---|
| Step Angle(degrees) | 18° | Voltage | 5V |
| Magnet Type | Rare Earth Permanent Magnet | Resistance | 16 Ohm |
| Highlight | 8mm micro stepper motor,3.5g.cm torque stepper motor,5VDC small stepper motor |
||
Product Description
8mm Torque 3.5g.cm 2 Phase 8mm Small Permanent Magnet Stepper Motor
VSM08284 is a precision miniature PM stepping motor with small size, large torque and high progress.
This small motor is mainly used in cameras, lenses, optical instruments and other fields.
As an actuator, stepper motor is one of the key products of mechatronics and is widely used in various automation control systems. With the development of microelectronics and computer technology, the demand for stepper motors is increasing day by day, and they are used in various fields of national economy.
6mm micro stepper motor parameter sheet:
| Product name | 8MM MICRO STEPPER MOTOR |
| Model | VSM008284 |
| Rated voltage | 5 V DC |
| Coil resistance | 16Ω±10% |
| No.of phases | 2 phases |
| Step angle | 18°/step |
| Max.Startiong frequency | 800 PPS min.(AT 5.0 V DC) |
| Max.slewing frequency | 2000 PPS min(AT 5.0 V DC) |
| Pull in torque | 2.8 gf-cm min(AT 480 PPS,5.0 V DC) |
| Pull out torque | 3.8 gf-cm min(AT 480 PPS,5.0 V DC) |
| INSULATION CLASS | CLASS E FPR COILS |
| Insulation strength | 100 V AC/1S 3mA Max |
| Insulation resistance | 1M Ω(DC 100V) |
| Operating temperature range | -30~+70 ℃ |
8mm micro stepper motor outside drawing:

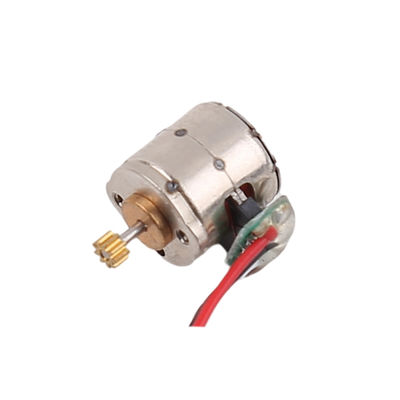

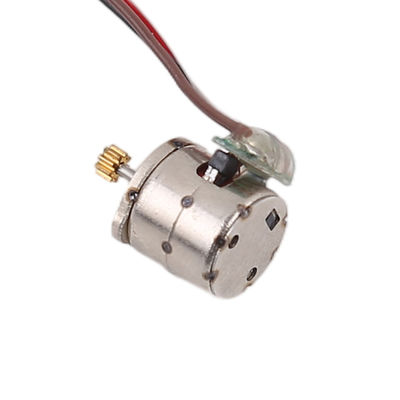

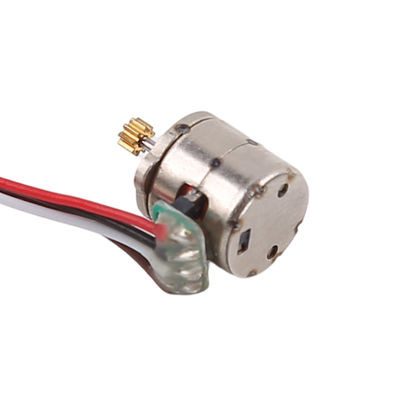

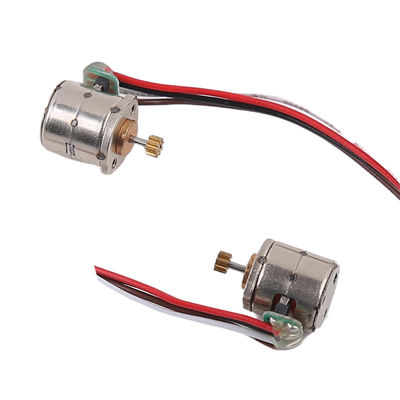

Product display:
Packaging diagram:
