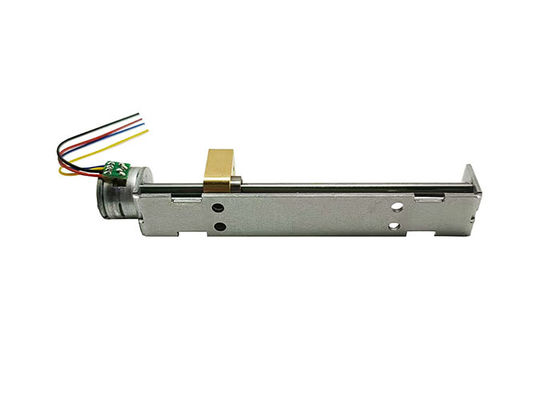

SM15-80L-T Linear Stepper Motor with 800mA/Phase 6V Rated Voltage and 15±10%Ω Coil Resistance for Precision Control
| Place of Origin | Jiangsu, China (Mainland) |
|---|---|
| Brand Name | VIC-TECH |
| Certification | RoHS |
| Model Number | SM15-80L-T |
| Minimum Order Quantity | 1 unit |
| Price | $7-$15/unit |
| Packaging Details | Selling Units: Single item plastic box inner , outer paper box Package: single carton packing, 100 - 1000 pieces per box. |
| Delivery Time | 15-30 work days |
| Payment Terms | Western Union,MoneyGram，Credit Card |
| Supply Ability | 1000000 units/year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Permanent Magnet | Step Angle | 18° |
|---|---|---|---|
| Phase | 2 Phases | Current / Phase | 800mA/PHASE |
| Rated Voltage | 6 V | Coil Resistance | 15±10%Ω |
| Thrust | Over 1 KG | ||
| Highlight | 800mA/Phase Linear Stepper Motor,6V Rated Voltage SM15-80L-T Motor,15±10%Ω Coil Resistance Slider Stepper Motor |
||
Product Description

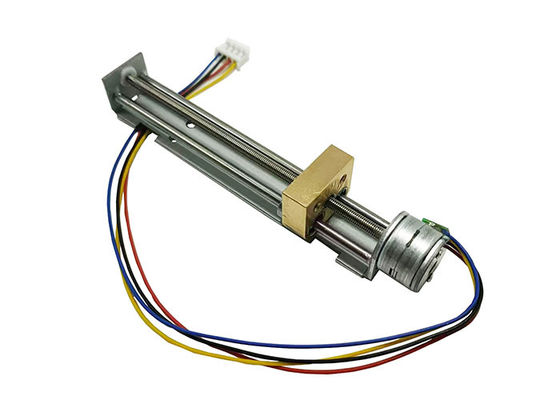

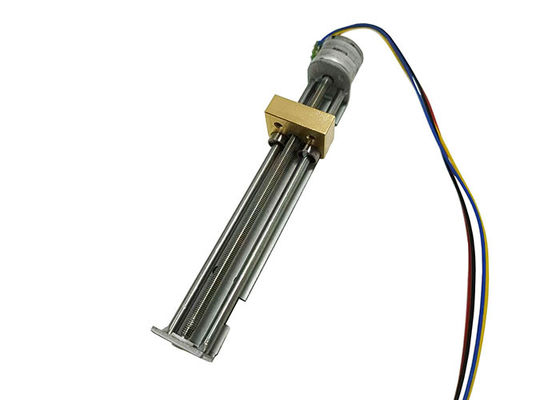

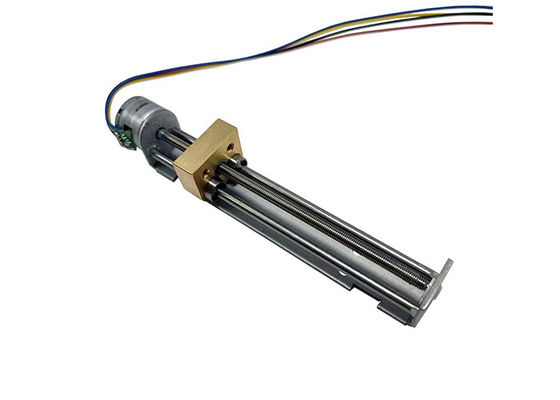

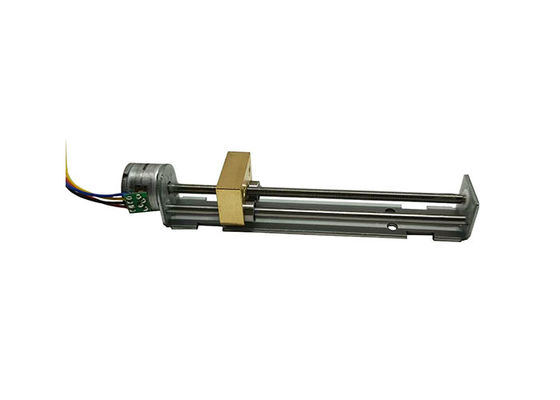

SM15-80L-T Metal Slide Linear Stepper Motor, 15mm Diameter, 2-Phase Stepper Motor, 1kg Thrust
This 15mm linear motor features a copper slide and two linear bearings for enhanced stability. A plastic slide option is also available.
Key Features
- 18-degree step angle with 0.025mm step size
- M3*0.5P threaded lead screw shaft (0.5mm pitch per rotation)
- 80mm travel range
- 1kg thrust capacity (over 10N)
- Precision linear control capability
Mechanical Dimensions
Technical Parameters
| Parameter | Value |
|---|---|
| Model No. | SM15-80L-T |
| Current Per Phase | 400 mA/Phase |
| Coil Resistance | 15±10% ohm/PHASE (20℃) |
| Rated Voltage | 6 V |
| No. of Phases | 2 Phases |
| Step Angle | 18 degrees |
| Excitation Method | 2 Phases Excitation |
| Drive Mode | Bipolar Drive |
| Pull-out Thrust | More Than 230g AT 500PPS |
| Max Response Frequency | More Than 1200 PPS |
| Max Starting Frequency | More Than 900 PPS |
| Insulation Class | CLASS E FOR COILS |
| Insulation Strength | 100 V AC FOR ONE SECOND |
| Insulation Resistance | 50mΩ DC 500 V |
| Operating Temperature | -0~55℃ |
| Motor Surface Temperature | 80℃ or less |
Primary Applications
- Camera systems
- Optical instruments
- Lens mechanisms
- Precision medical devices
- Automatic door locks
Product Details
Wiring Connection Options
The motor input features FPC connection, but can be customized to include connecting line needles, PCB, or other forms based on customer requirements.
